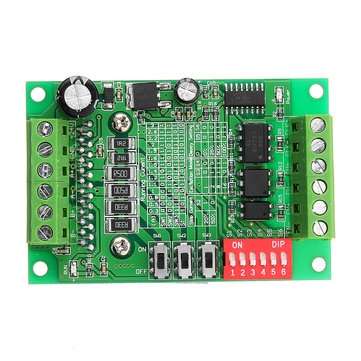

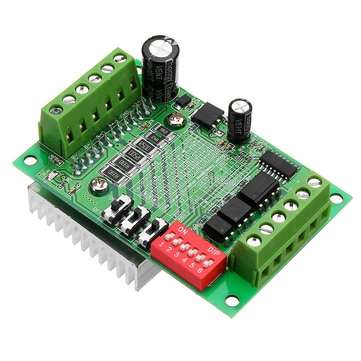

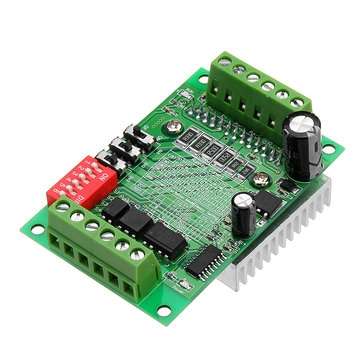

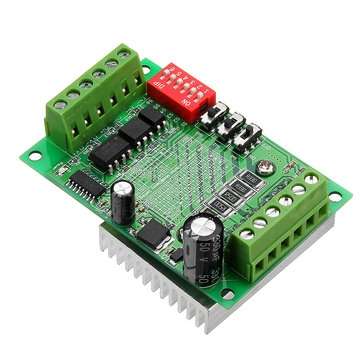

3Pcs TB6560 3A CNC Router 1 Axis Driver Module Stepper Motor Driver Board

New

20 available

R653.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4059

92.40 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654084211

Specification:

Size: 75 x 50 x 35mm / 2.95 x 1.96 x 1.37inch (L x W x H)
Rated maximum output: &pm; 3A, peak 3.5A
Working voltage: DC 10V-35V
Recommended to use a switching power supply: DC24V power supply
Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 Subdivisions.

Feature:

Using the TB6560AHQ new original chip with low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance.
For two-phase within 42, 57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor.
Automatic half current function.
6N137 high-speed optical coupling, guarantee high speed without losing step.

Features similar products:

1. Current grade-by-adjustable to meet your demand for a variety of applications.
2. Semi-automatic flow adjustable.
3. 6N137 high-speed optical coupling, guarantee high speed without losing step.
4. Plate printed setup instructions operation without manual also.

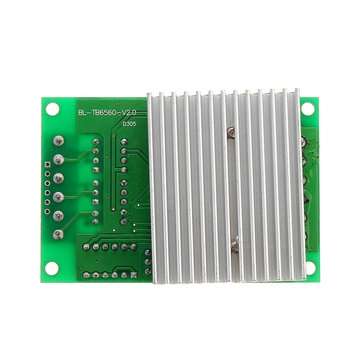

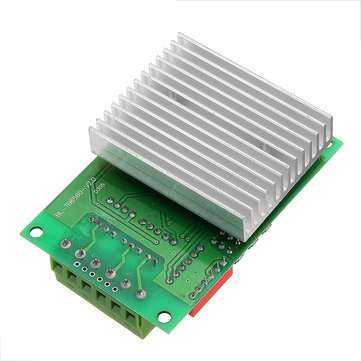

5. Thick teeth radiator, good heat dissipation.

Package included:

3 xTB65601 axis driver board
