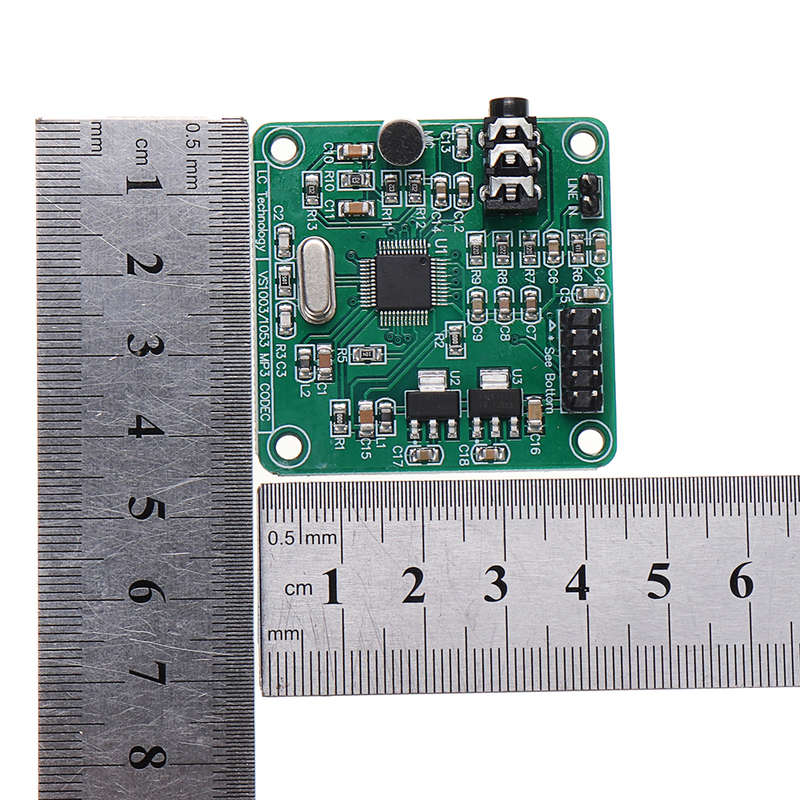

3PCS VS1053 Audio MP3 Player Module Audio Decoder Board Development Board Onboard Recording Function

20 available / new

R776.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641109212

Introduction:
VS1053 audio decoding module, in addition to playing various music formats, it also supports OGG real-time encoding and recording. The MP3 development board uses an AVR processor, and the board reserves an ISP interface for easy connection and use.
Feature:
SPI interface, the control signal line leads 1 headphones and audio output interface 1 a microphone for recording 1-line_in input interface The power indicator On-board 3.3V and 1.8V LDO chip AMS-1117, the largest provider of 800mA, single power supply: +5 VDC, capacitor filter 12.288 Mhz crystal
Interface:

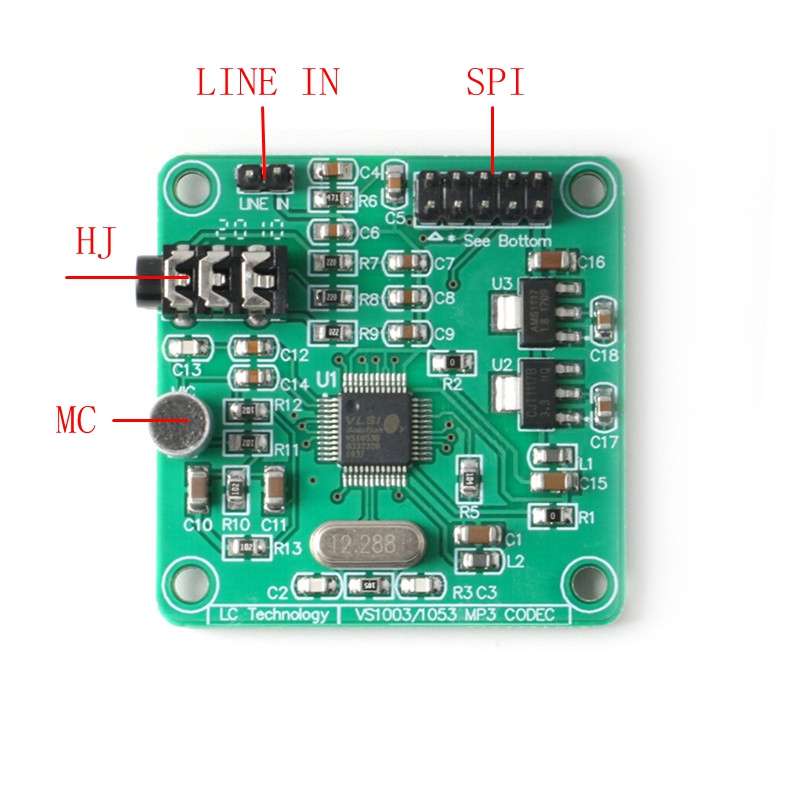

HJ: 3.5mm headphone jack interface MC: Pickup, microphone for recording LINE IN: Input mode selection, used to select ADPCM, if the sound source of the recording is 0, the microphone input pins MICP and MICN are used, if it is 1, LINE IN is used. SPI: SPI download interface
