Product details
Condition
New
Location
International
Bob Shop ID
643365230
Feature:

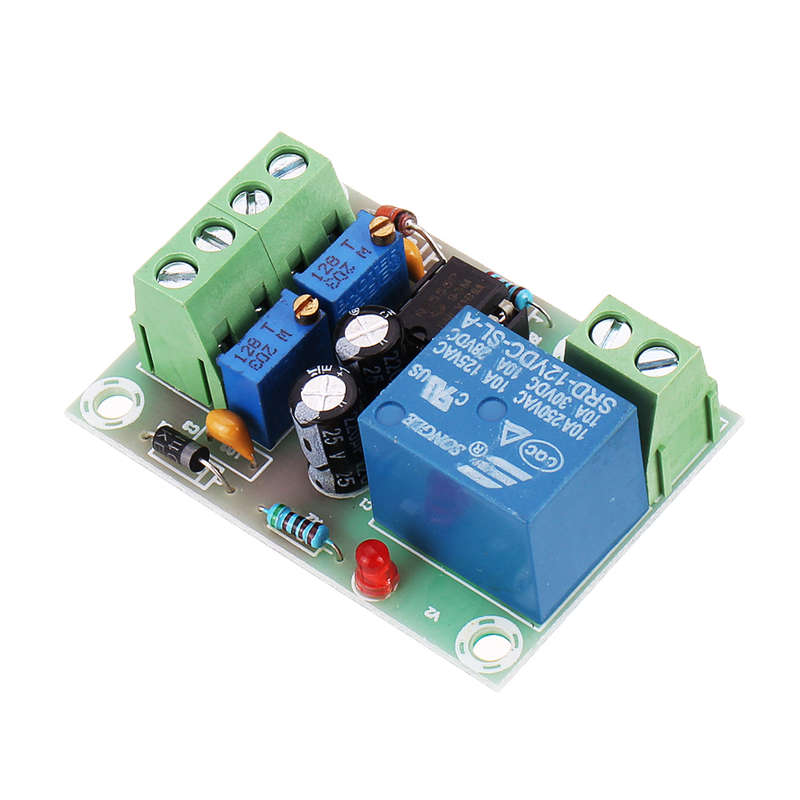

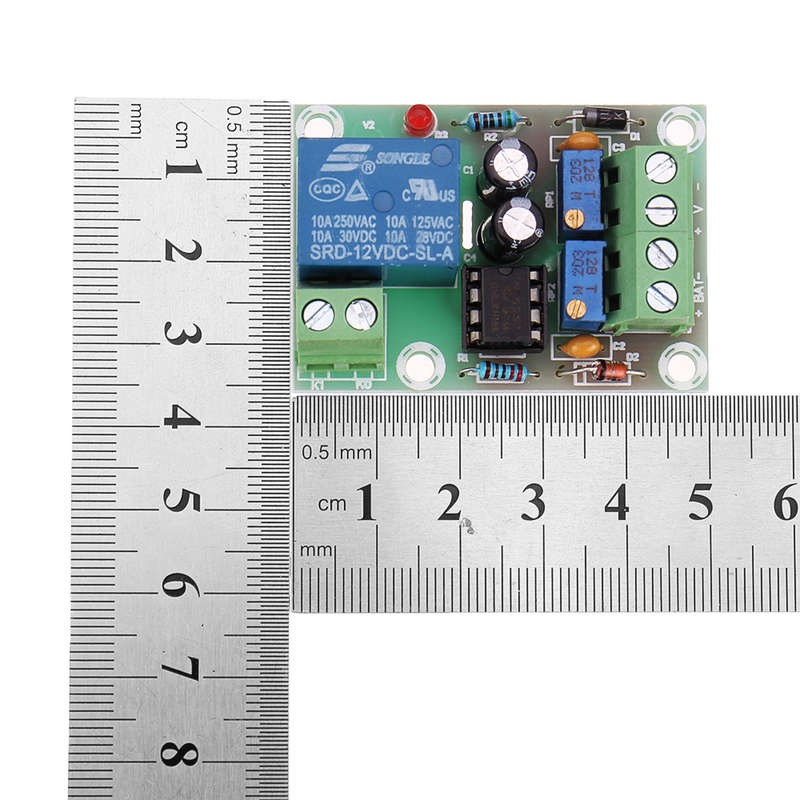

Product Name: 12V charger power control board Product model: XH-M601 Supply voltage: 13.8V-14.8V Relay closing voltage: 12.4V Relay disconnection voltage: 14.8V Voltage error: ±0.1V Voltage detection method: DC voltmeter Charging type: 12V battery Potentiometer adjustment: RP1 RP2 (careful adjustment) Product size: 50 x 32 x 18mm (LWH)

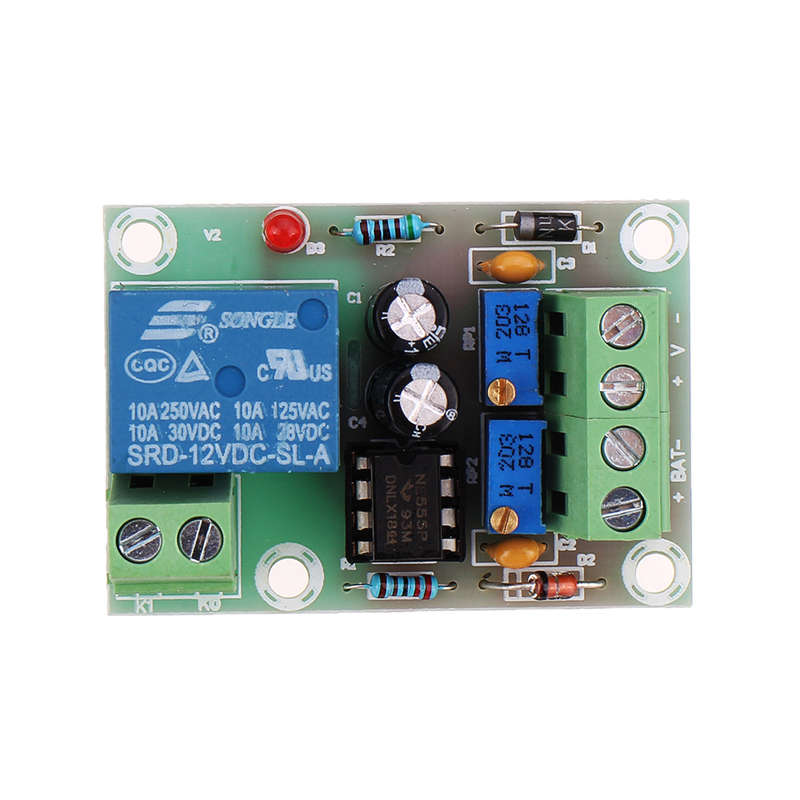

RP1: Adjust the battery starting charging voltage (low voltage setting: clockwise high, counterclockwise low) factory value is 12.4V RP2: Adjust the battery to disconnect the charging voltage (low voltage setting: clockwise high, counterclockwise low) factory default is 14.8V Package includes:
