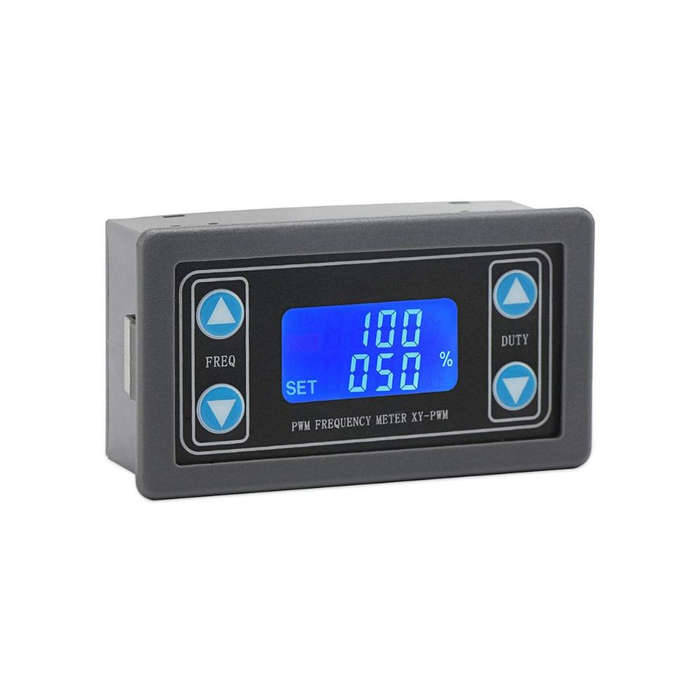

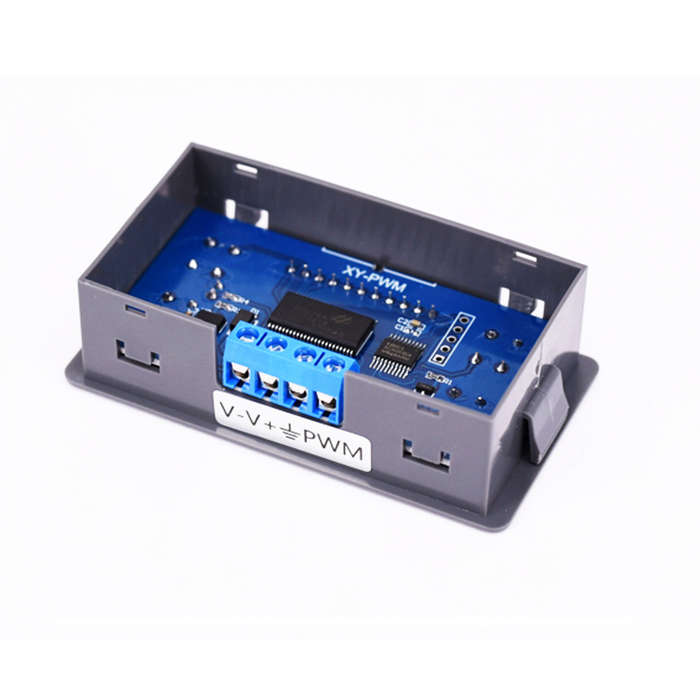

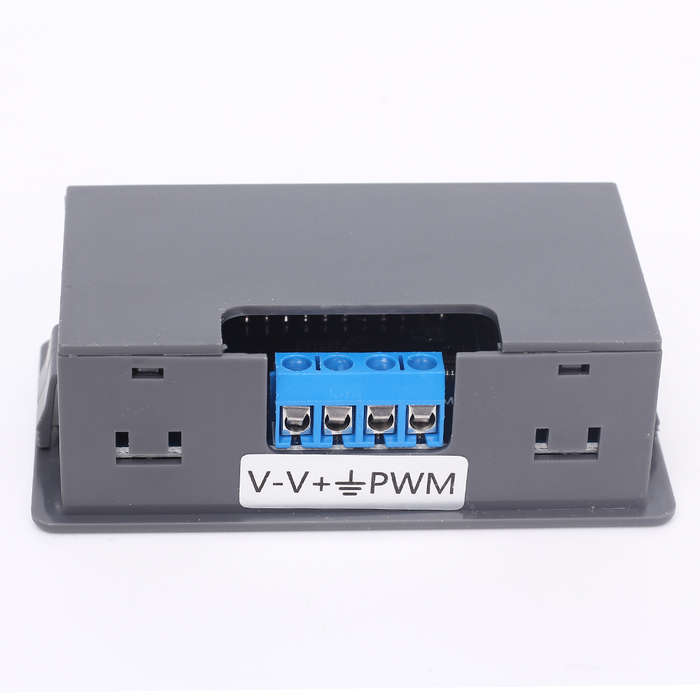

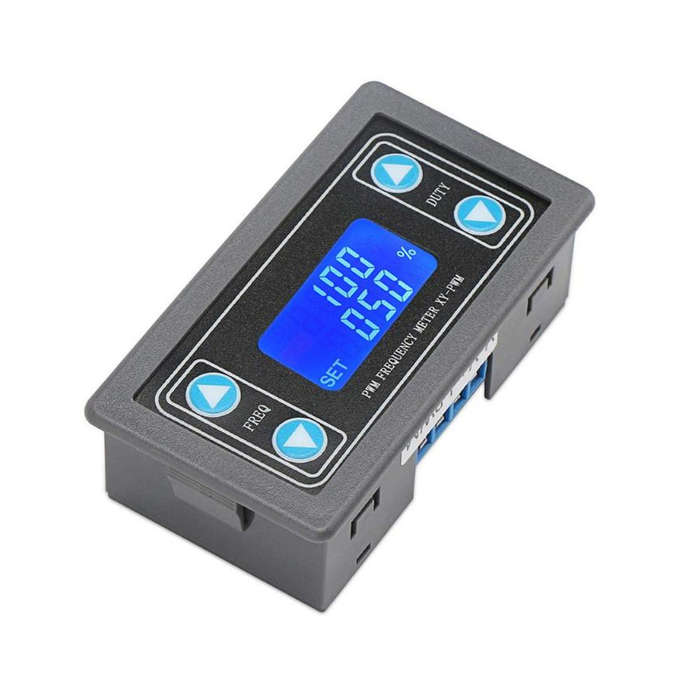

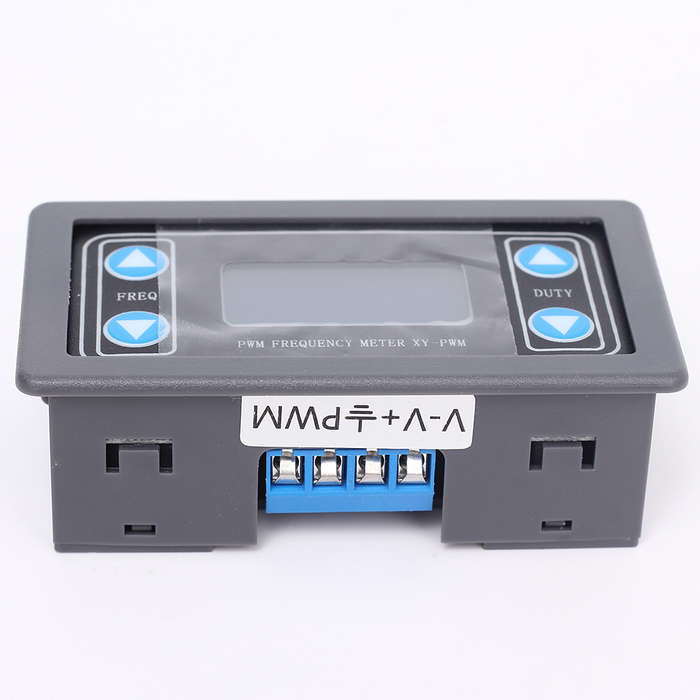

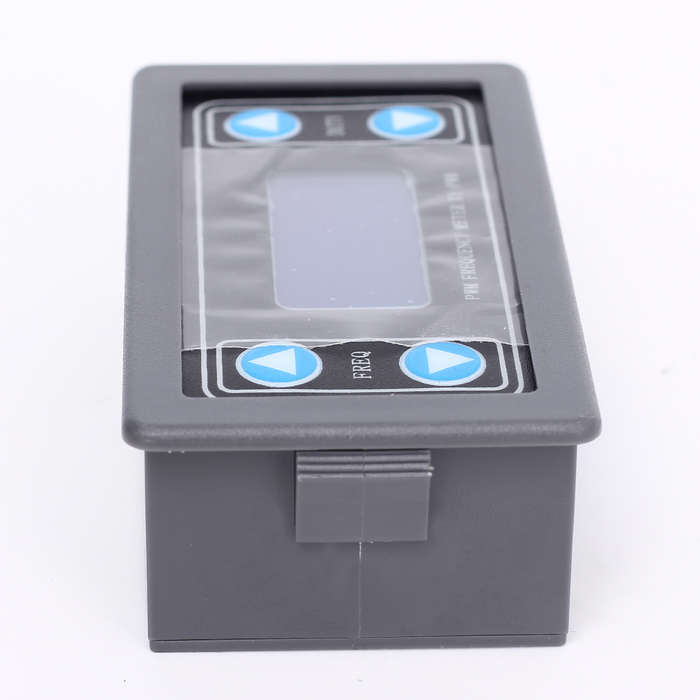

3pcs XY-PWM DC3.3-30V 1Hz~150KHz Digital Display Square Wave Rectangular Wave Pulse Signal Generator

New

20 available

R660.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4014

92.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654084350

Function: 1. Protective Shell 2. LCD High Definition Display 3. Support UART 4. Supporting frequency adjustment 5. Support duty cycle adjustment 6. High accuracy detection 7. Supporting POW ER-OFF memory function 8. 0.1 Channel PWM Output 9. Purpose: Device used as a signal source or excitation source in production practice
Feature:

Working voltage: 3.3-30V Frequency ran ge: 1Hz~150KHz Frequency accuracy: the accuracy in each range is about 2% Signal load capacity: output current can be around 5~30ma Output amplitude: PWM amplitude is equal to supply voltage Ambient temperature: -20~70ﾣC
Material: Plastics Size: 79*43*27mm/3.11*1.69*1.06 Notes: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow slight measuring deviation due to manual measurement.

Package includes:

3 xDigital pwm signal generator
