3pcs ZF-1 ASK 315MHz Fixed Code Learning Code Transmission Module Wireless Remote Control Receiving

New 20 available
R420.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
654084370
Feature:

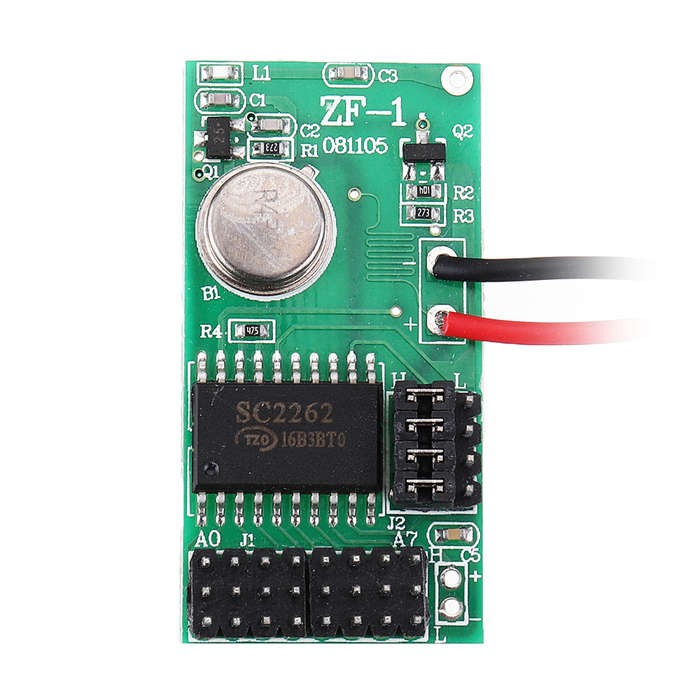

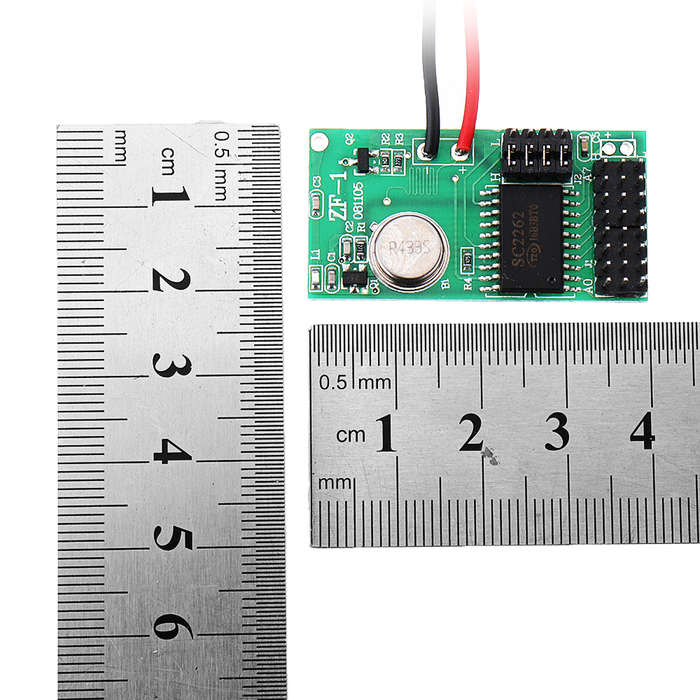

Product model: ZF-7 (with code) Transmission frequency: 315MHZ Working voltage: DC 9V ~12V Modulation method: ASK Quiescent current: 0uA Working current: 30~45mA Coding type: fixed code (SC2262) Radiated power: 30~45mW Transmission distance: 1000 meters (receiver sensitivity -108dBm) Volume: 40mm*20mm*10mm

PIN Description
1 ANT RF signal input pin, this pin should be connected to the antenna
2 - Negative power supply
3 + Positive power supply
4 H-L Digital pin

Rated parameter Symbol Value
DC supply voltage VDD-VSS 9V-12V
Storage temperature range (TS) TSTG -12ᆪC to 75ᆪC
Welding temperature +260ᆪC

Package includes:

3 x Receiver Board














Add to cart
