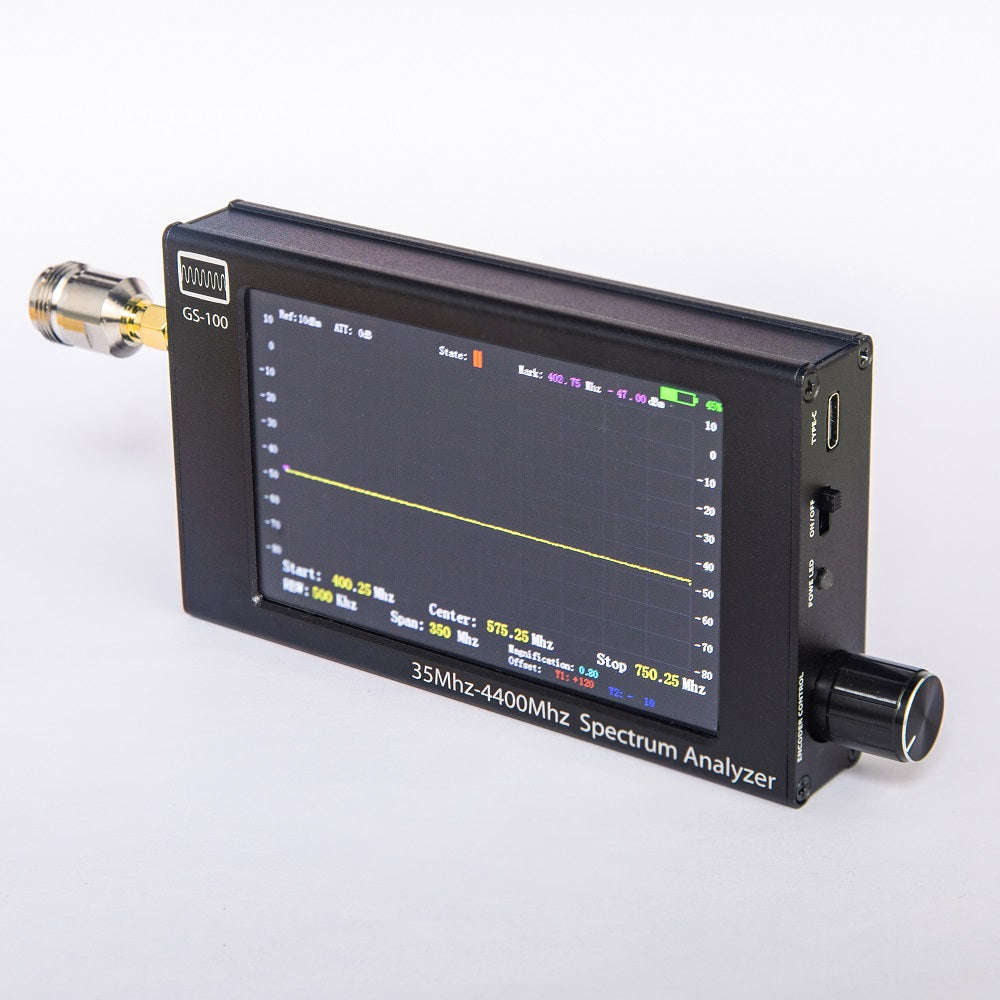

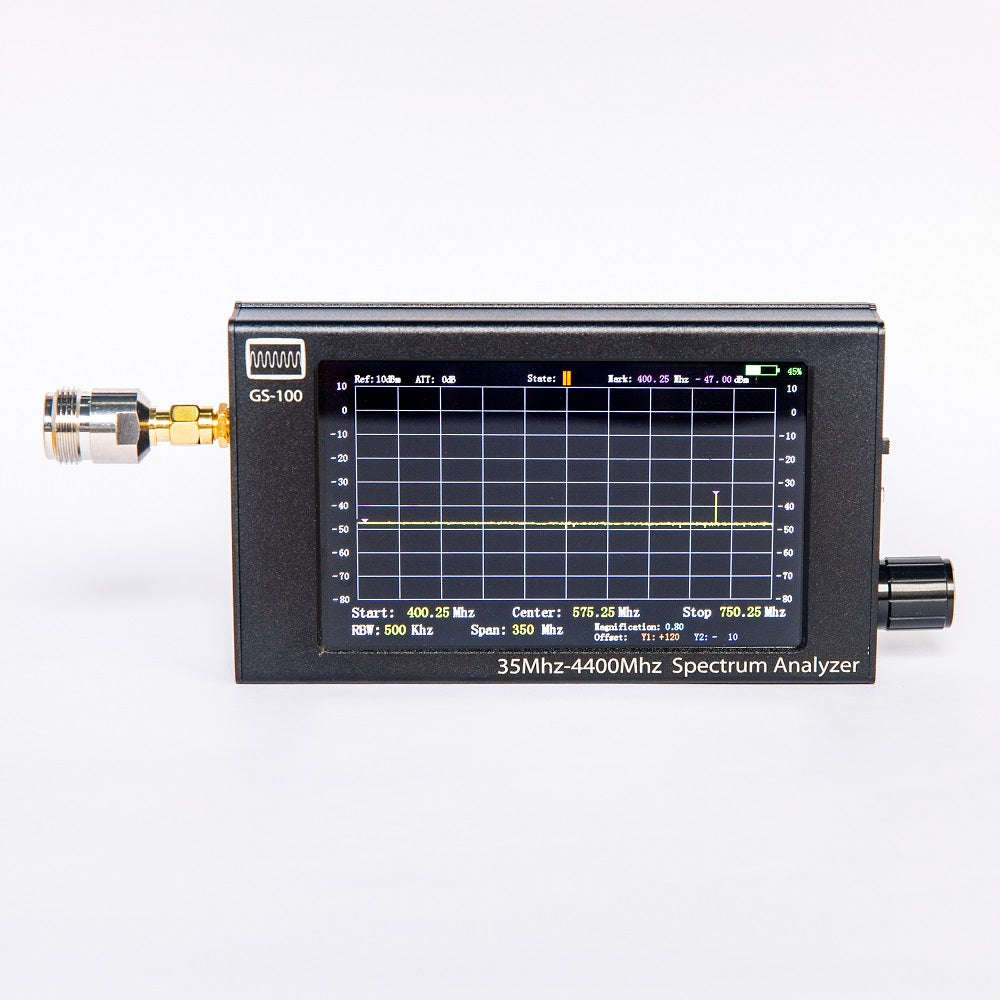

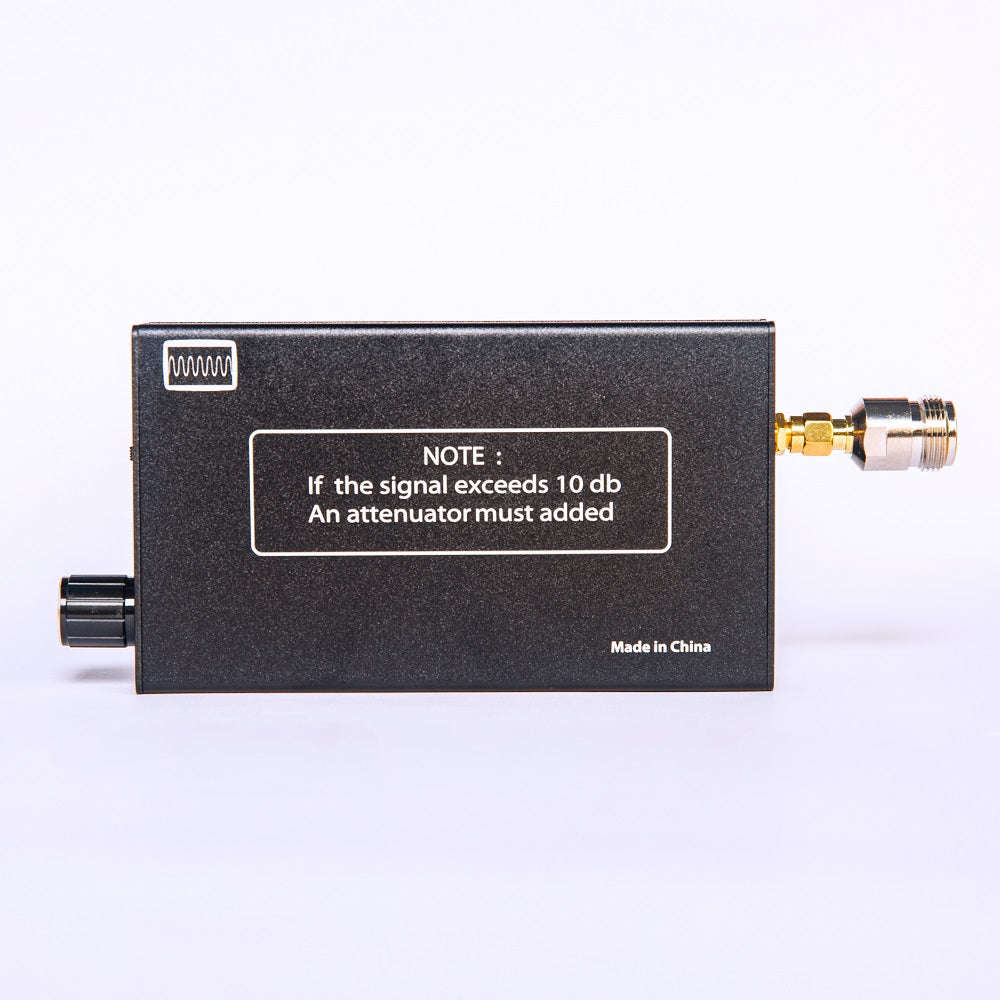

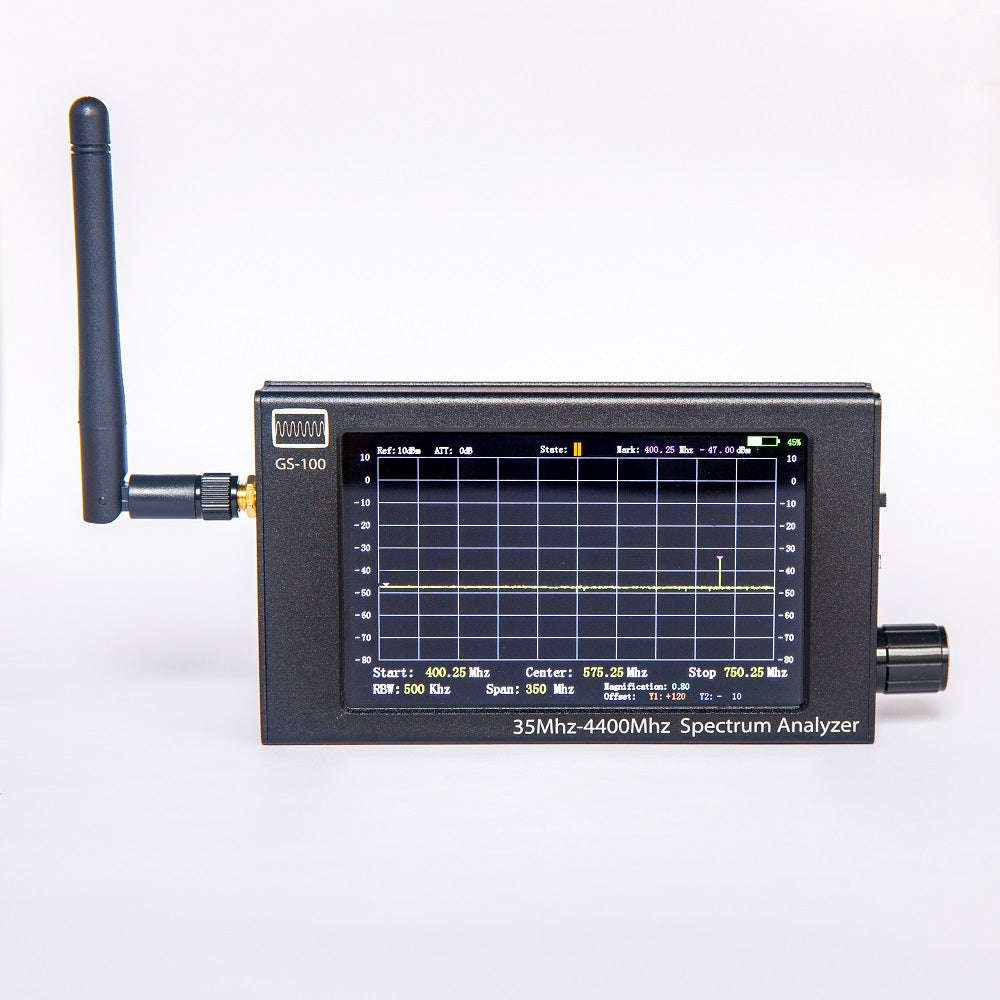

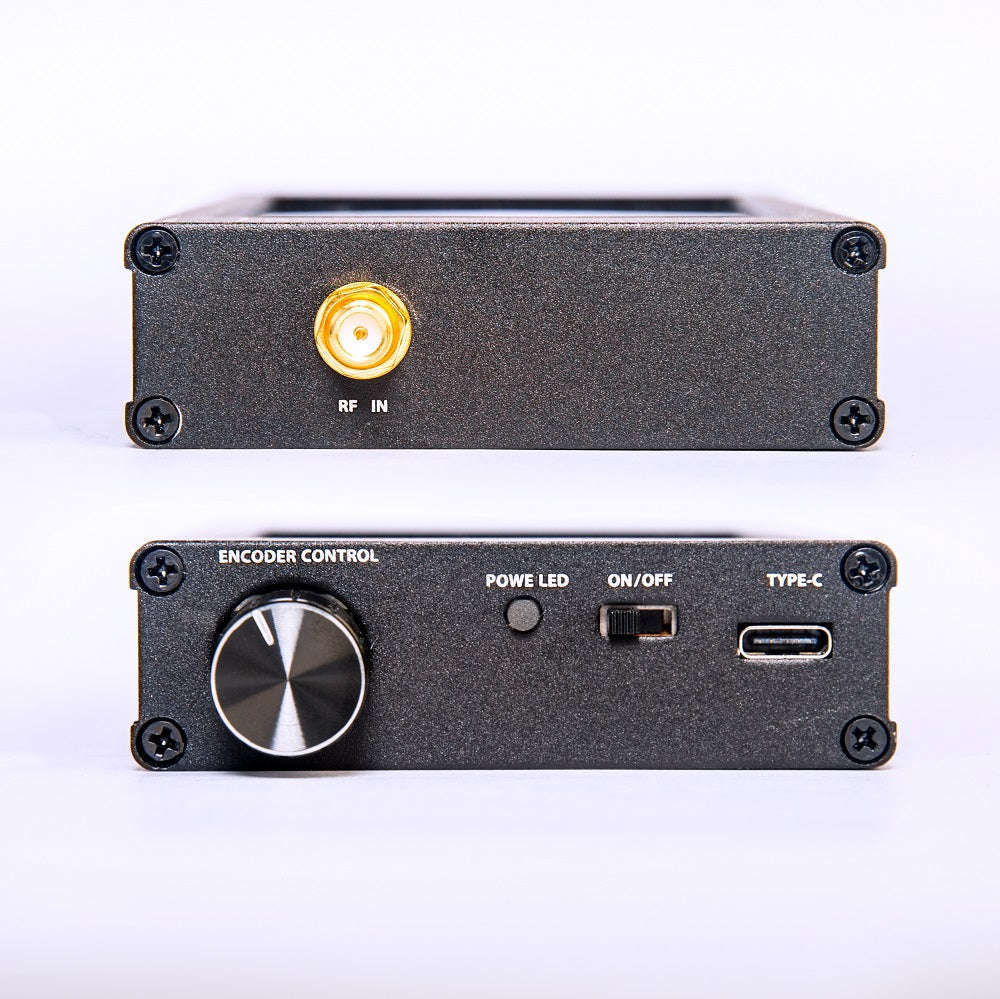

3rd Gen Handheld Spectrum Analyzer
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
South Africa
Product code:
C14
Bob Shop ID:
594514617
Description
Compact super handy spectrum analyser to measure RF performance.
ALL OUR ITEMS ARE LOCALLY STOCKED AND SHIPSÂ IMMEDIATELY!
Specifications
Screen size: 4.3 inches
Spectrum display range: 35M-4400MHz Input impedance: 50 ohm
RBW: 10KHz, 50KHz, 100KHz, 200KHz, 500KHz
Scan points: 700 points
Scanning range: 7M (10KHz), 35M (50KHz), 70M (100KHz), 140M (200KHz), 350M (500KHz)
dBm range: -80dB~10dB (supports manual adjustment of the calibration range). There is no amplifier circuit inside the machine. If you need to measure small signals, you need an external amplifier.
Maximum access signal: 10dB
Working mode: superheterodyne sweep spectrum analyzer, single sweep time is 800ms
