3S 11.1V 12.6V 60A 18650 Li-Ion Battery Charger Protection Board(Balanced)
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD0604398501A
Bob Shop ID
607118336
1. Charging voltage: 12.6V-13.6V
2. Continuous charging current (upper limit): 10A
3. Continuous discharge current (upper limit): 60A (if the heat dissipation environment is not good, please reduce the load current use)
4. Scope of application: suitable for lithium batteries with a nominal voltage of 3.7V and a full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, there is no limitation on the external dimensions)
5. Product weight: enhanced version of about 8.8 g, balanced version of about 9.8 g

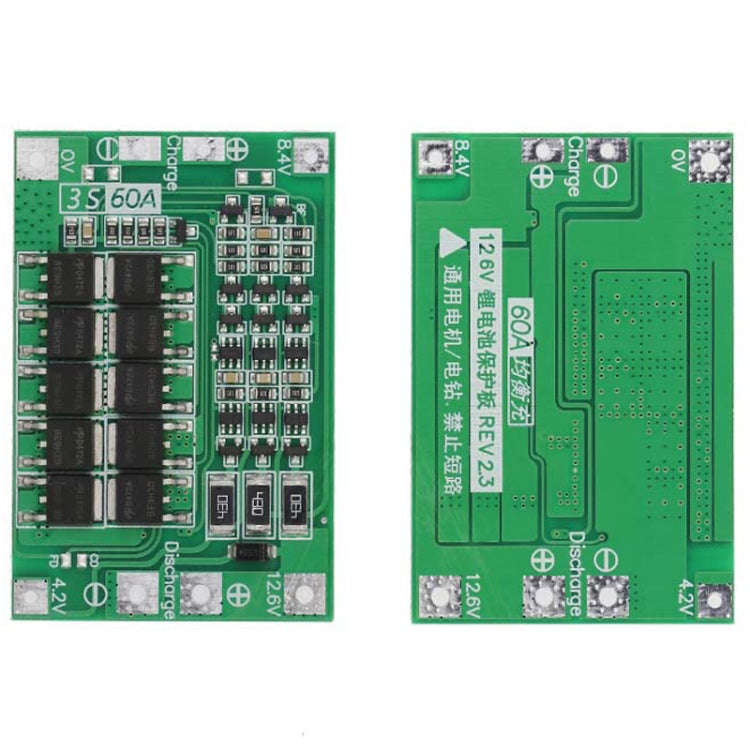

6. Size: enhanced version is about 41 x 55 x 3.4 mm, balanced version is about 41 x 62 x 3.4 mm
Instructions for use:

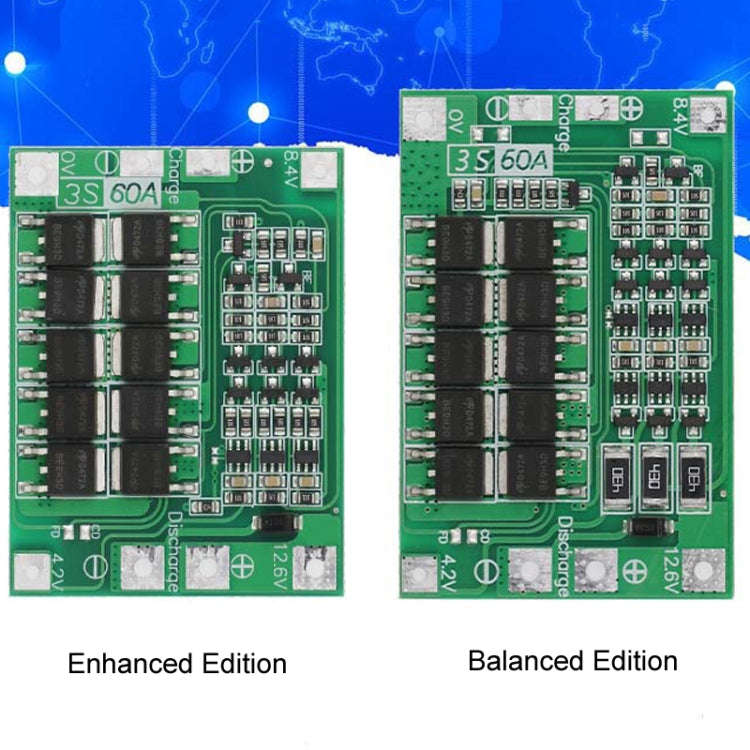

1. Enhanced version: suitable for drills with a starting current of up to 120A and a power of up to 260W
2. Equalized version: suitable for drills with starting current up to 120A and power up to 260W, with equalizing charging function
Caution:
1. Successful starting of the drill requires three 10C-20C power batteries or six 5C-10C power batteries (recommended power battery models: for SONY VTC4, VTC4A, VTC5A, VTC6), OV and 12.6V connecting wires, using copper wires of 4 square millimeters or more (nickel tabs can not be used)
2. Successfully start the motorcycle on the higher requirements of the battery, need 6 15C-20C power battery, or 12 10C-15C power battery (recommended power battery models: for SONY VTC4, VTC4A, VTC5A, VTC6), and the motorcycle needs to have a charging voltage stabilization circuit

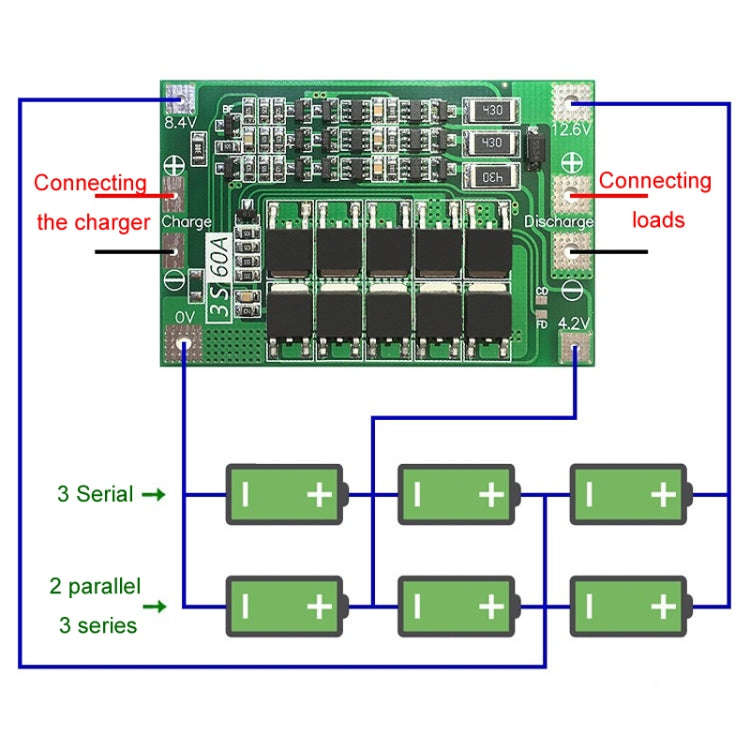

3. Strictly according to the diagram wiring OV, 4.2V, 8.4V, 12.6V, welding line can not touching any component on the board, do not intentionally short circuit

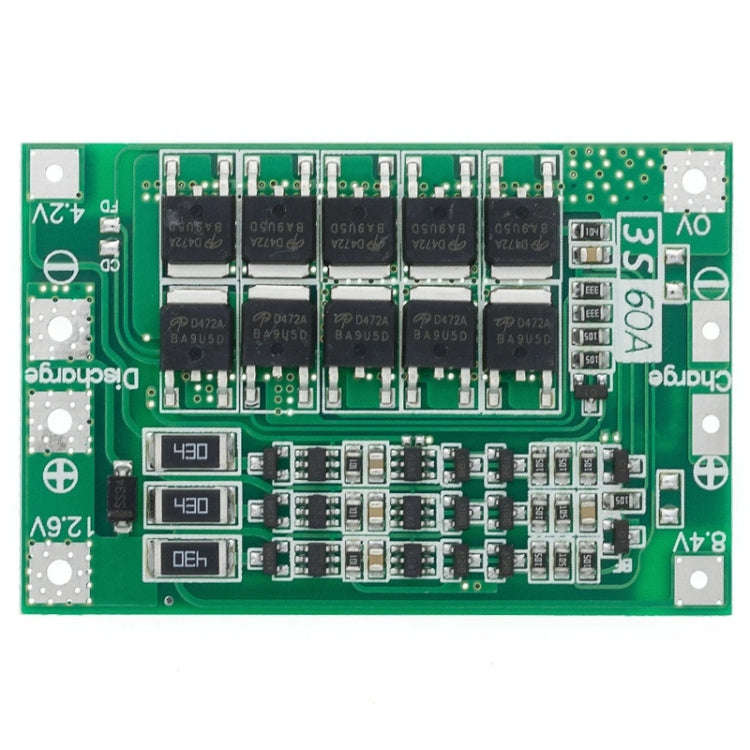

4. When welding the battery for the first time or charging, as long as a single battery exceeds 4.2V, the 430 resistor will heat up and discharge (discharge to about 4.19V to stop heating), such as 430 resistor serious heating (so hot that you dare not touch), please check whether the wrong wire
