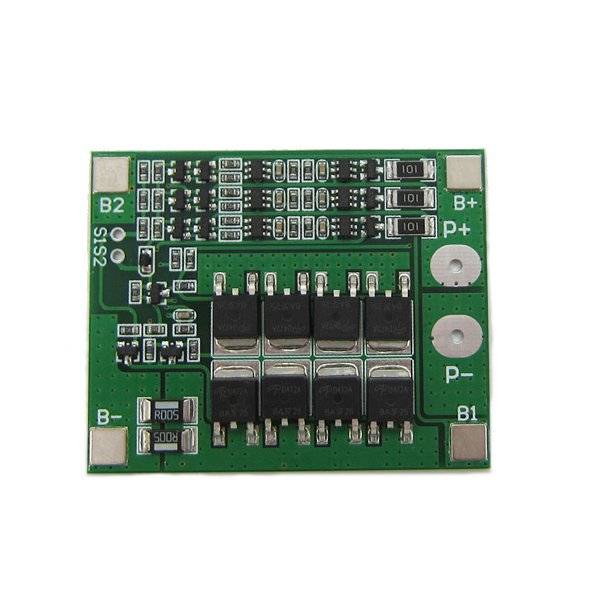

Description: Item Name: Lipo battery protection board
Item NO.:?HX-3S-FL25A-A
Charge Voltage: 12.6V - 13V
Charge Current: 25A (Max)
Continued Overcharge Current: 25A
Instantaneous?Overcharge Current: 75A
Overcharge Voltage Range:?4.25-4.35V ±0.05V
Overdischarge Voltage Range:?2.3-3.0V ±0.05V
Max Working Current: 20-25A?
Max?Instantaneous Current: 35-40A
Balanced Current: 45mA
Quiescent Current: <30??A
Working Temperature: -40 ~ +50a??
Storage?Temperature: -40 ~ +80a??
Internal Resistance: <100m??
Effective Life: >3000h
Weight: About 10g
Dimension:?56*45*4.0mm
Features: Upgraded verison,the working current is up to 25A.
With balance function,can balance the voltage when charging.
With overcurrent,overcharge and overdischarge protection function,well protect your battery.
Note: Discharge product that with more than 3A current,please make sure that the discharging rate is larger than 3C.

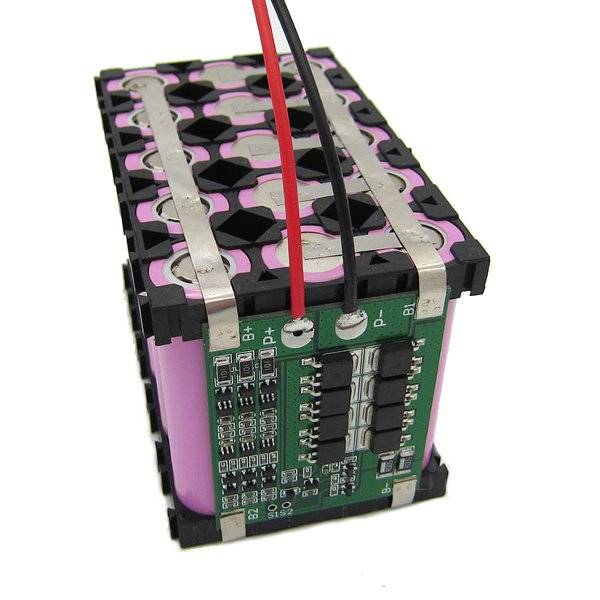

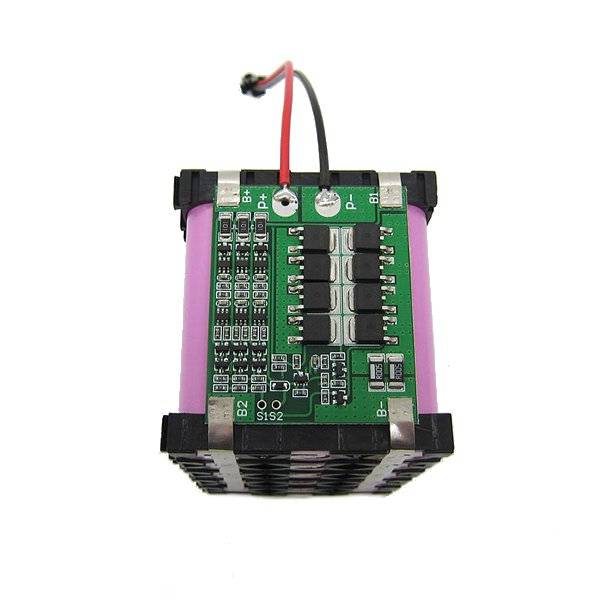

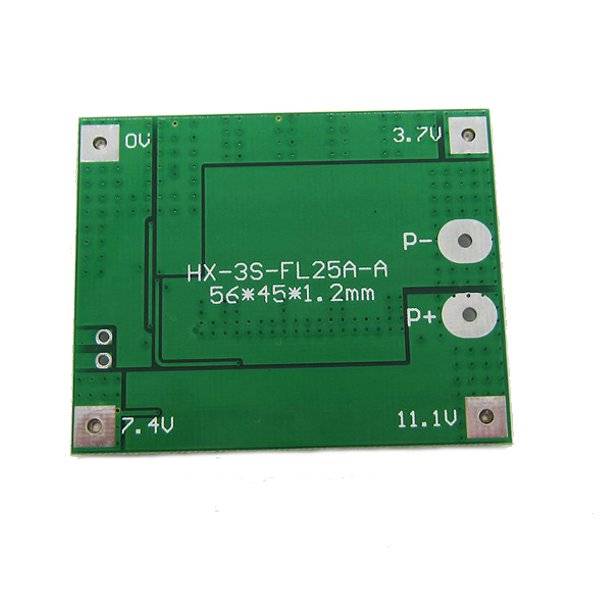

Please follow this method strictly to wiring,0V (B-), 3.7V(B1), 7.4V(B2), 11.1V(B+).
After wiring,need to charge, then will have output.
When connecting three groups of batteries, please ensure that the voltage of each group of batteries is the same, if not, please fill each battery separately and then use in series.
In discharge test, the battery voltage drop the fastest, means that group is poor battery.
Do not mix a good battery and a poor battery.?3 groups battery capacity / internal resistance,the closer the better.
Package Included: 1x?3S 11.1V 12V Lipo Battery Protection Board (only a board)
,
,
,
