3S 11.1V 25A 18650 Li-ion Lithium Battery BMS Protection PCB Board With Balance Function

New 55 were available
Indicative market price: R114.66
R84.93
26% off
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
R65.00 pickup point shipping applies to orders under R100.00, in most areas in South Africa. R35.00 pickup point shipping applies to orders over R100.00. There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
1120250[ICSD]
Bob Shop ID
364326821
Description:

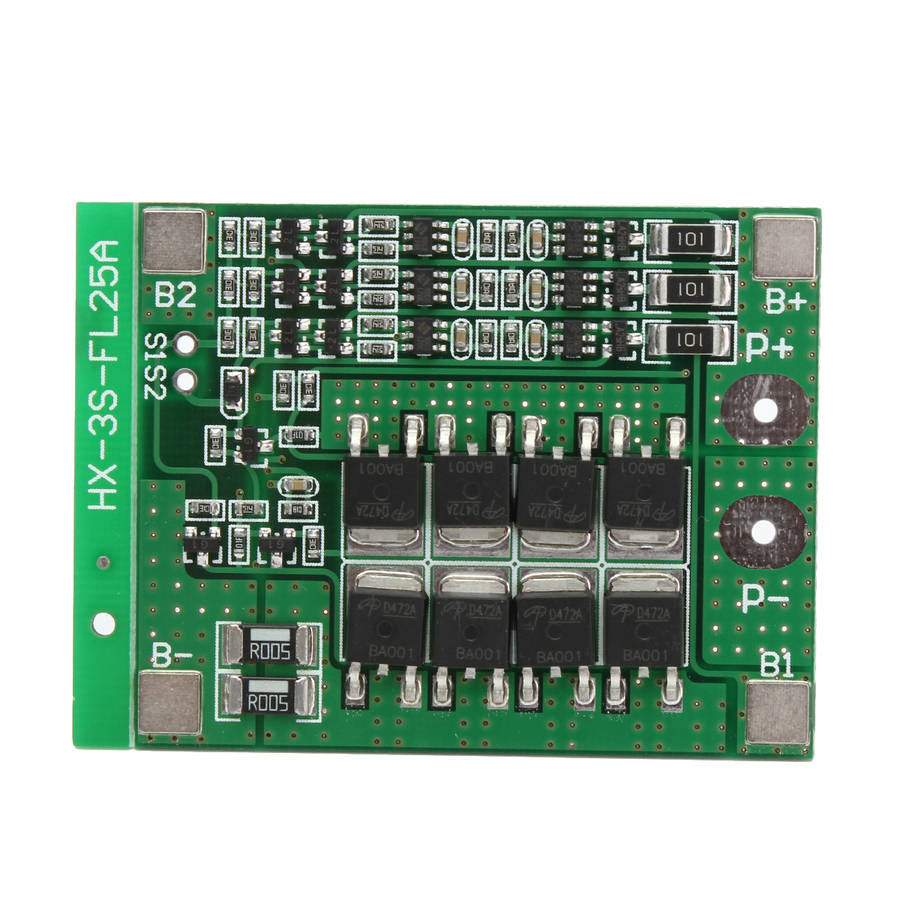

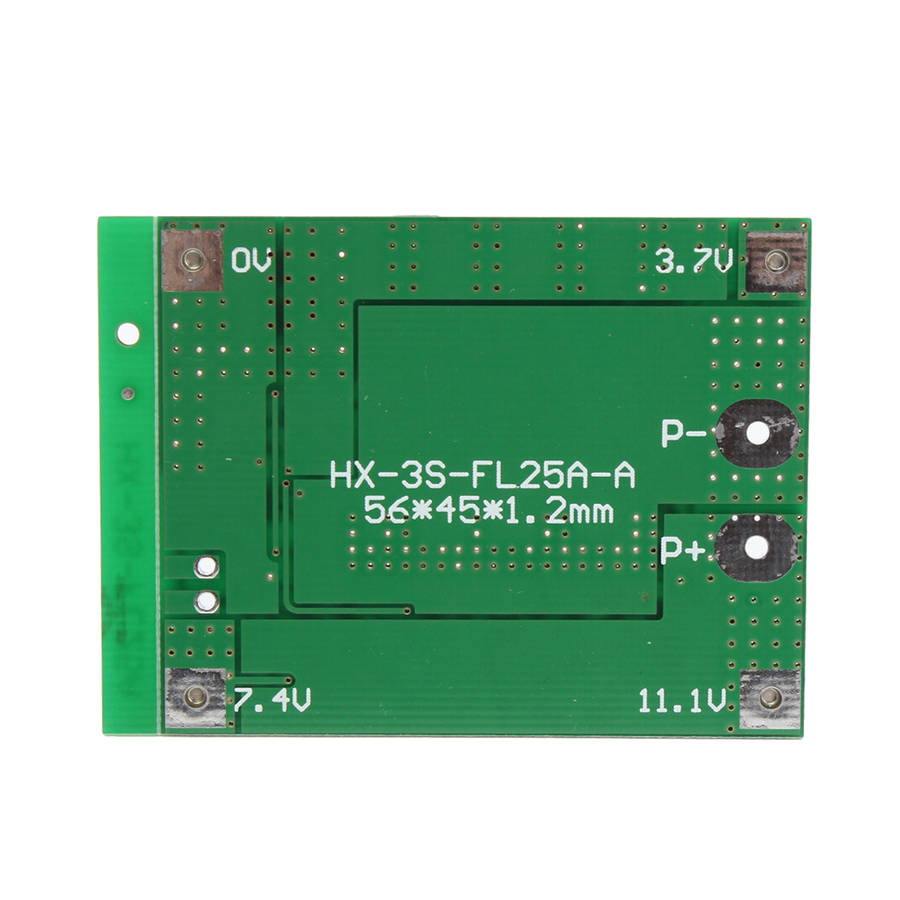

Model: HX-3S-FL25A-A

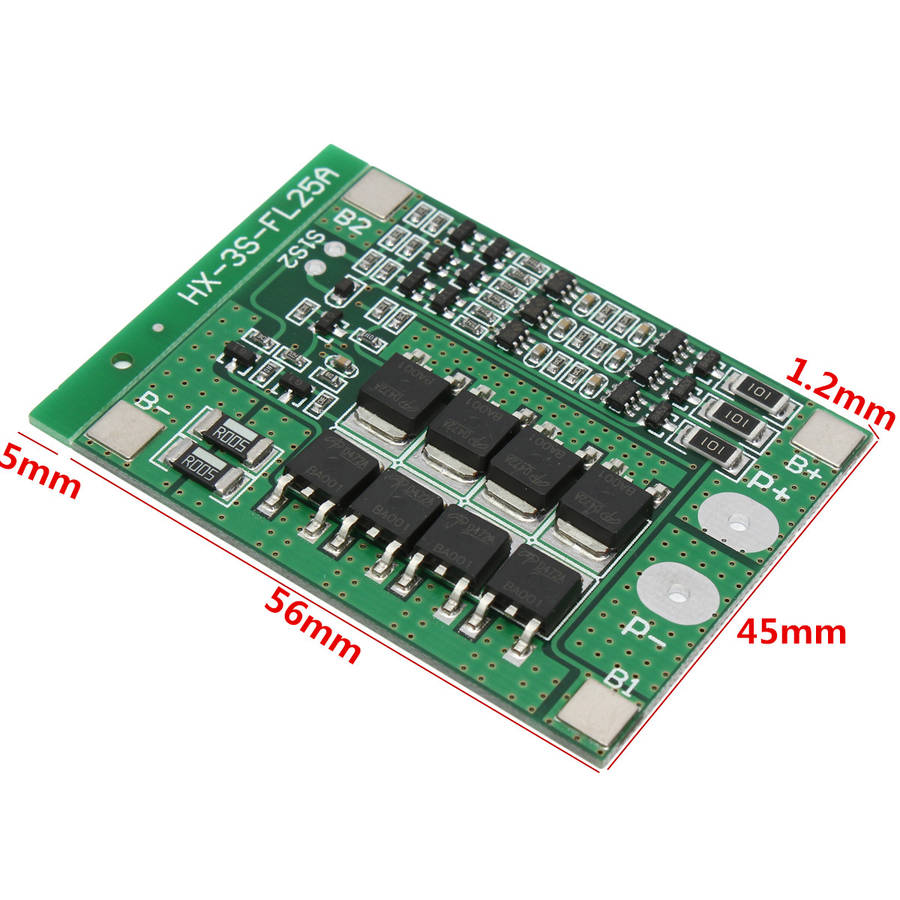

Size: about 56mm*45mm*1.2mm
Over voltage range: 4.25~4.35V ± 0.05V
Over discharge voltage range: 2.3~3.0V ± 0.05V
Maximum operating current: 0~25A
Maximum transient current: 34~40A
Quiescent current: less than 30uA
Internal resistance: less than 100Mohm
Working temperature: -40℃ ~ +50℃
Storage condition: -40℃ ~ +80℃
Effective life: more than30000h
Short circuit protection: Yes, delayed self recovery


Note:

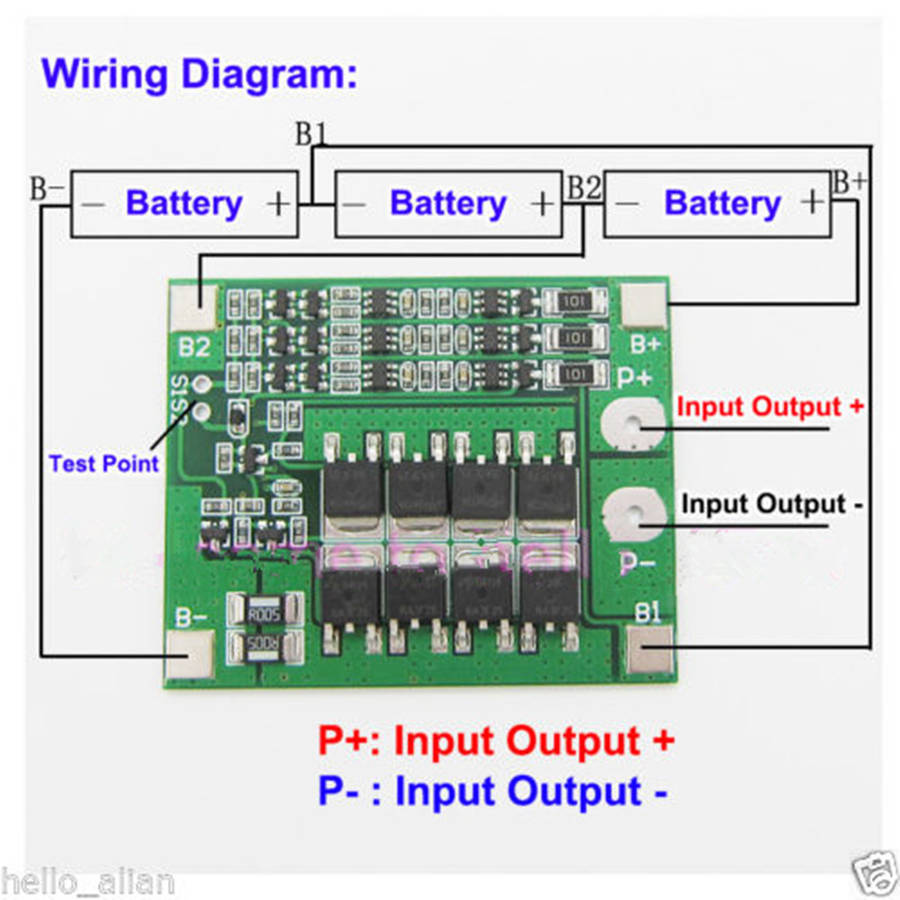

1. Strictly according to the diagram wiring: 0V(B-)3.7V(B1)7.4V(B2)11.1V(B+),Do not deliberately short circuit.
2. After the wire is connected, needs to charge first, then have output.
3. When the battery is connected in series with 3 groups ,please ensure that the voltage of each battery is the same. If not the same, please fill in
    each set of batteries and then use.
4. Do not mix the good battery and the battery.
5. It will be better the capacity of the battery internal resistance is closer.


Package included:

1 x Battery Protection Board
