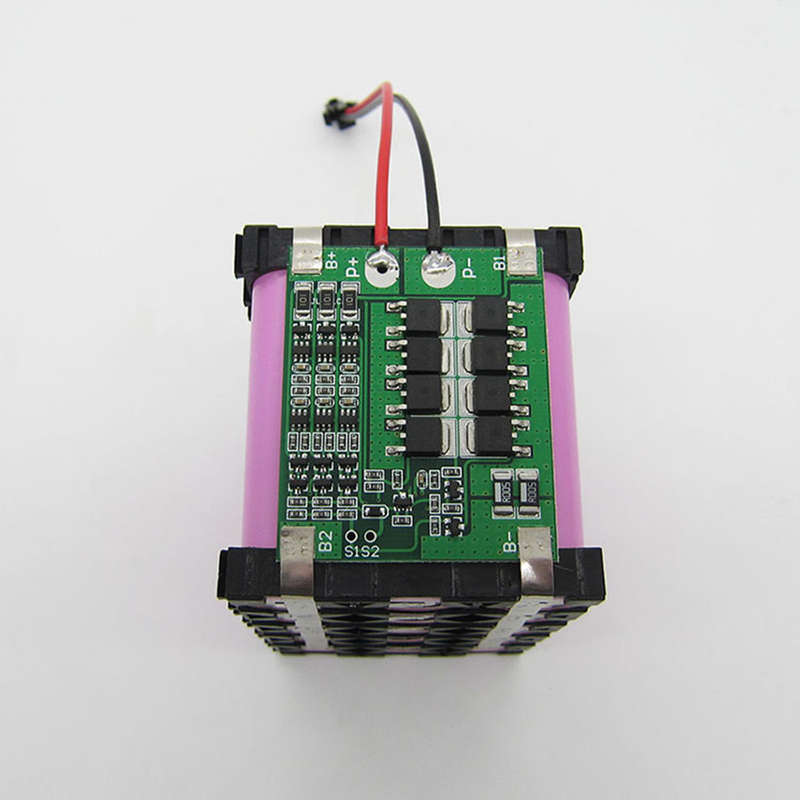

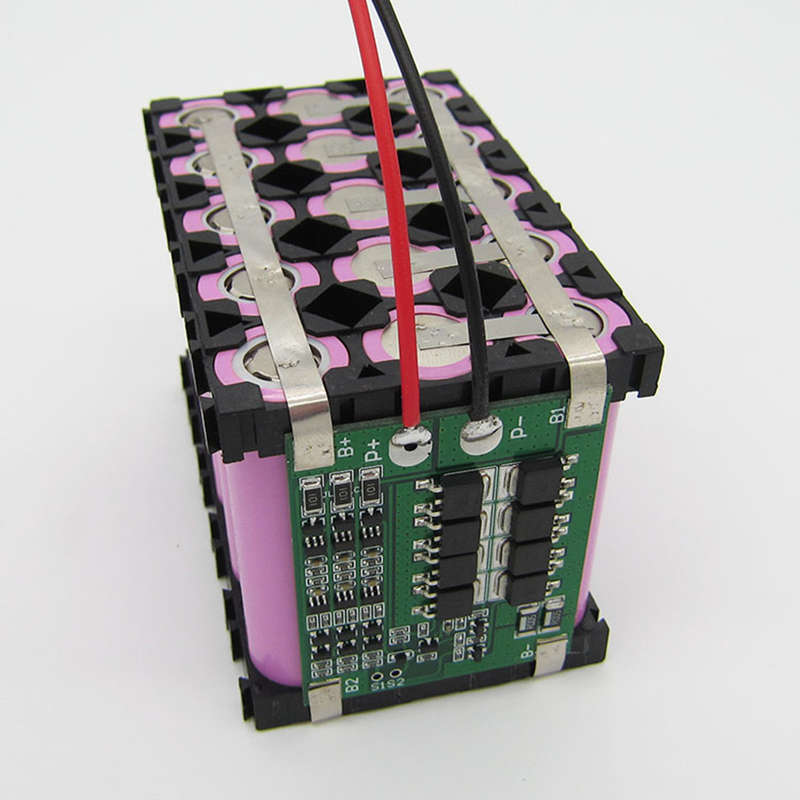

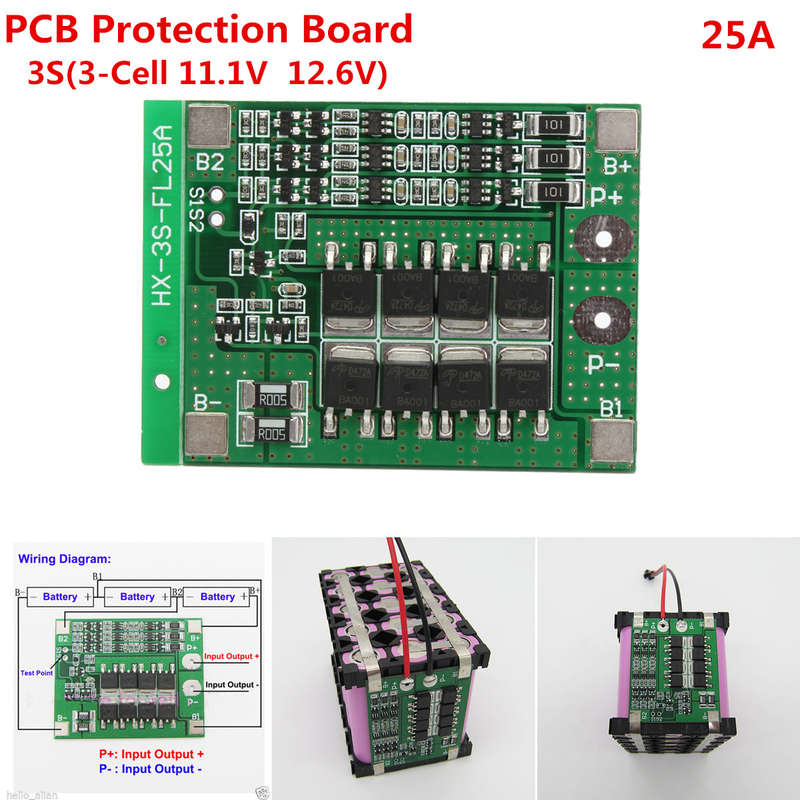

3S 11.1V 25A 18650 Li-ion Lithium Battery BMS Protection PCB Board With Balance Function

20 available / new

R395.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3465

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641109336

Description:

Model: HX-3S-FL25A-A

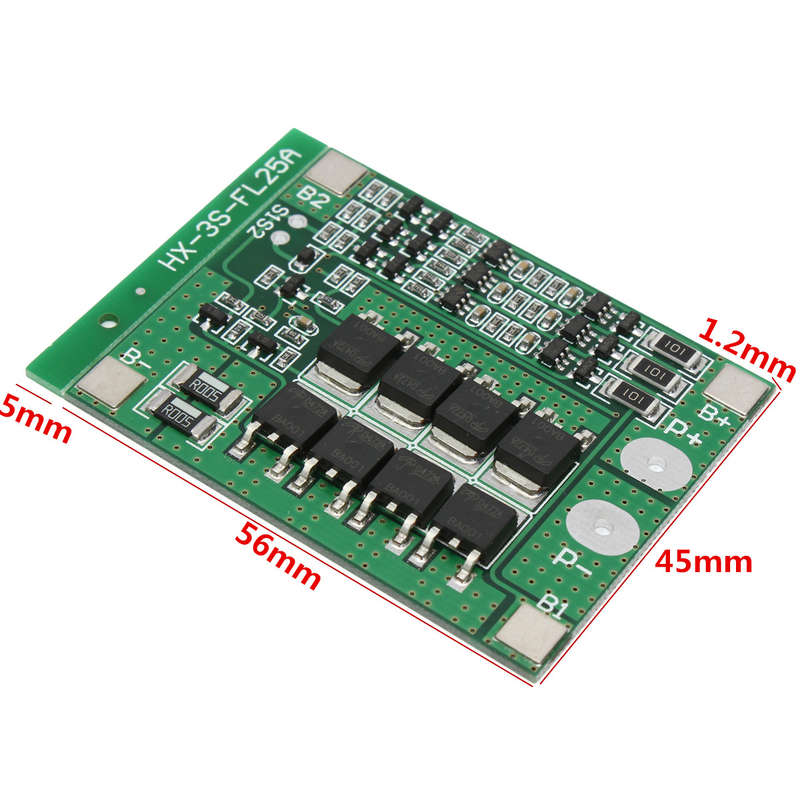

Size: about 56mm*45mm*1.2mm
Over voltage range: 4.25~4.35V &pm; 0.05V
Over discharge voltage range: 2.3~3.0V &pm; 0.05V
Maximum operating current: 0~25A
Maximum transient current: 34~40A
Quiescent current: less than 30uA
Internal resistance: less than 100Mohm
Working temperature: -40a ~ +50a
Storage condition: -40a ~ +80a
Effective life: more than30000h
Short circuit protection: Yes, delayed self recovery

Note:

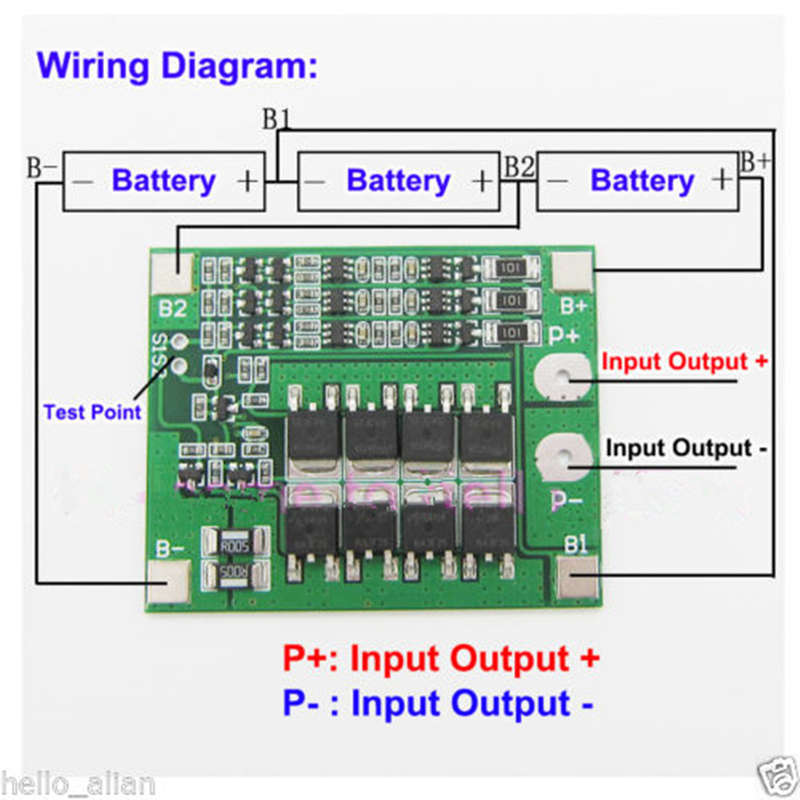

1. Strictly according to the diagram wiring: 0V(B-)3.7V(B1)7.4V(B2)11.1V(B+),Do not deliberately short circuit.
2. After the wire is connected, needs to charge first, then have output.
3. When the battery is connected in series with 3 groups ,please ensure that the voltage of each battery is the same. If not the same, please fill in
each set of batteries and then use.
4. Do not mix the good battery and the battery.
5. It will be better the capacity of the battery internal resistance is closer.

Package included:

1 x Battery Protection Board
