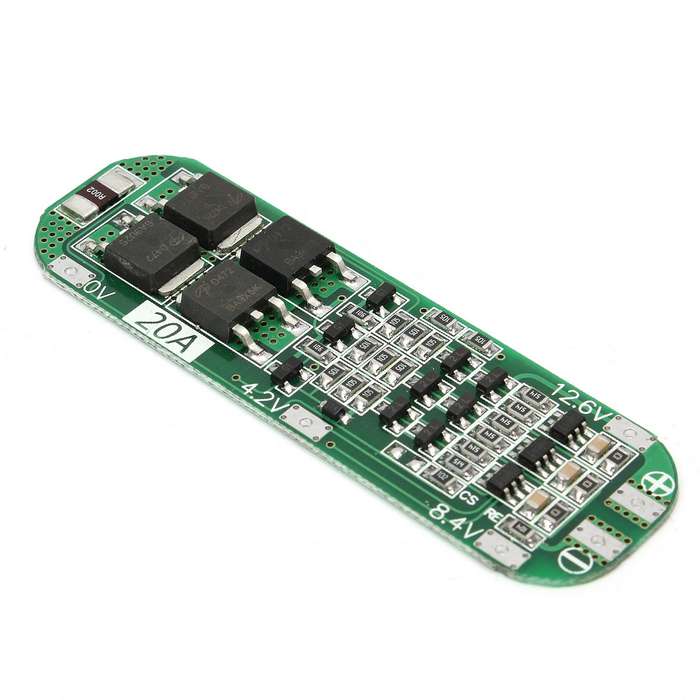

3S 20A Li-ion Lithium Battery 18650 Charger PCB BMS Protection Board 12.6V Cell
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Returns
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Bob Shop ID
615113797

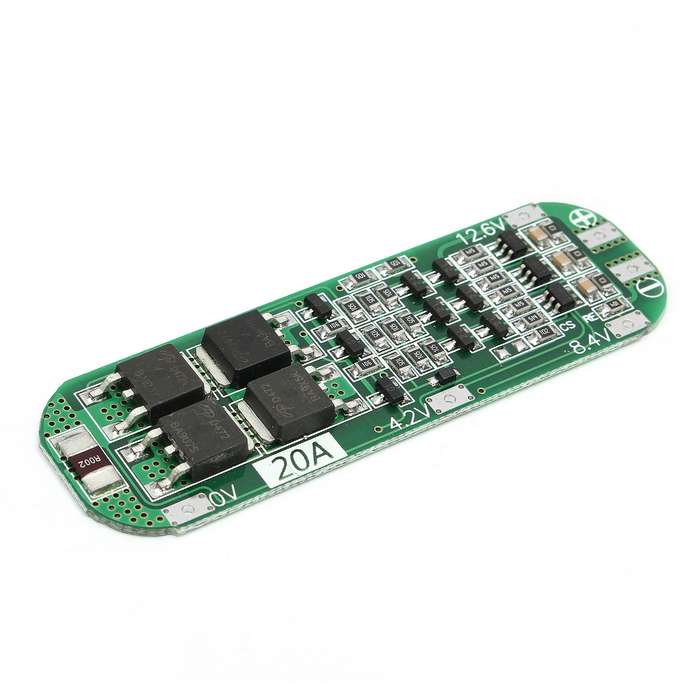

Features:
Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)

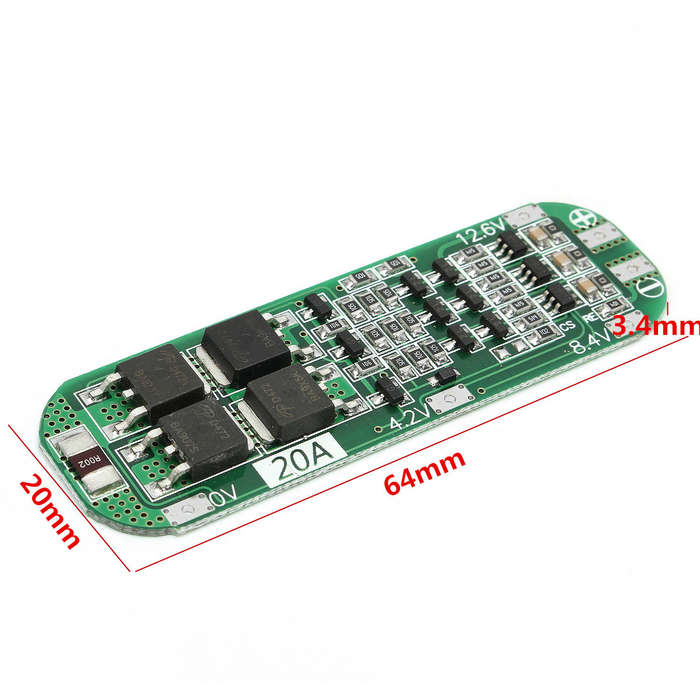

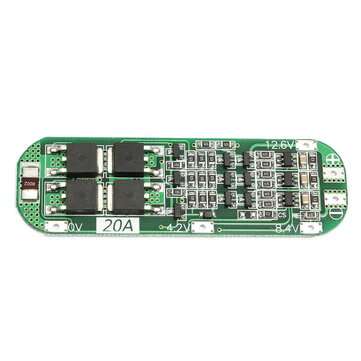

Product Size: 64mmx20mmx3.4mm
Material:Metal
Charging voltage: 12.6V

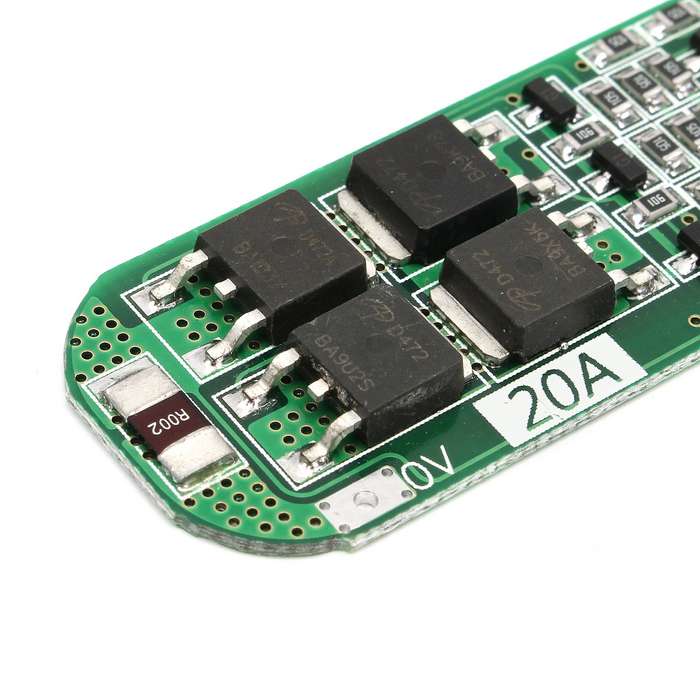

Maximum output current: 20A
Maximum output power / charging power: 252W
Note:

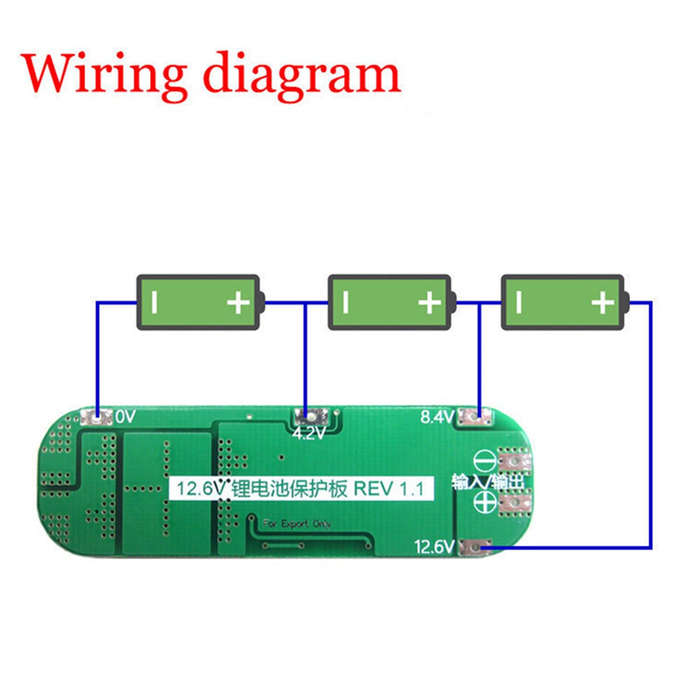

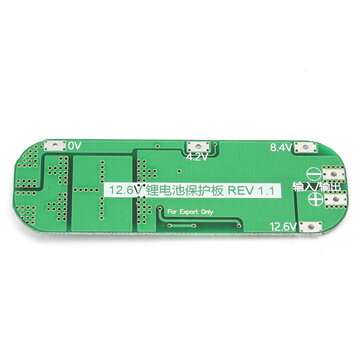

1. Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.
2. After connection,it need to first charge activation, then will have the output.
3. Do not mix the good battery and poor battery to use.The internal resistance of 3 battery capacity are closer will be better.Please buyers know the
??? professional knowledge of this module before buying
Package Included:
1 x PCB Protection Board
Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)
Product Size: 64mmx20mmx3.4mm
Material:Metal
Charging voltage: 12.6V
Maximum output current: 20A
Maximum output power / charging power: 252W
| Electrical Parameters | ? | ? | ? | ? |
| Item | Minimum | Typical | Maximum | Unit |
| Consumable Current | 12 | 18 | 24 | uA |
| Over charge protection voltage? | 4.2 | 4.25 | 4.3 | V |
| Over charge recovery voltage | 4.1 | 4.16 | 4.2 | V |
| Over charge delay time | 500 | 1000 | 1500 | ms |
| Over discharge protection voltage | 2.35 | 2.5 | 2.7 | V |
| Over discharge recovery ?voltage | 2.9 | 3.2 | 3.3 | V |
| Over?discharge delav time | 50 | 100 | 150 | ms |
| Conduction resistance | 10 | 12 | 14 | m?? |
| Overcurrent protection current | 37 | 40 | 43 | A |
| Ovcrcurrcnt delay time | 5 | 10 | 15 | ms |
| Normal operating current | 0 | 20 | 20 | A |
| Transient current (<10ms) | 18 | 20 | 22 | A |
| Ambient temperature | -40 | 25 | 85 | ??C |
Note:
1. Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.
2. After connection,it need to first charge activation, then will have the output.
3. Do not mix the good battery and poor battery to use.The internal resistance of 3 battery capacity are closer will be better.Please buyers know the
??? professional knowledge of this module before buying
Package Included:
1 x PCB Protection Board
