Product details

Condition
New
Location
South Africa
Product code
MOD-150
Bob Shop ID
593183694

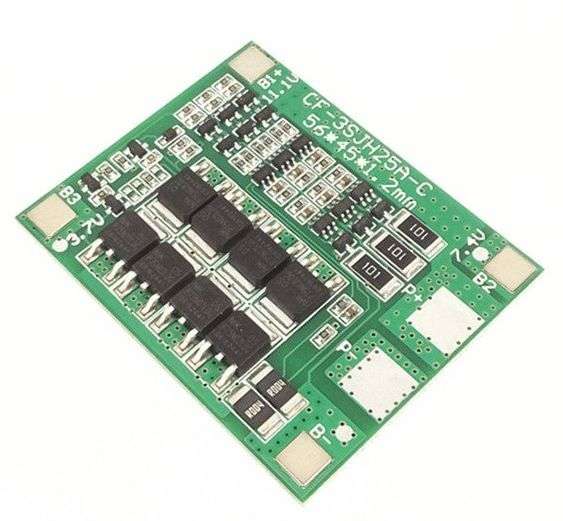

The 25A 3-cell rechargeable battery charger is used for 3-cell 18650 rechargeable batteries. The circuit has a separate charge function for each cell, automatic shutdown when full, short-circuit protection, over-voltage, and under-voltage.

3S 25A Lithium Battery 18650 Charger Quick Spec

  • Model: HX-3S-FL25A
  • Overload Voltage: 4.25 - 4.5V
  • Charging Voltage: 12.6-13V
  • Working Range: 20-25A
  • Operating Temperature: -40 C ~ +50 C
  • Immediate Stream: 35-40A
  • No Load: <30uA
  • Life Expectancy: over 30 000 hours
  • Dimensions: 56 x 45 x 4mm

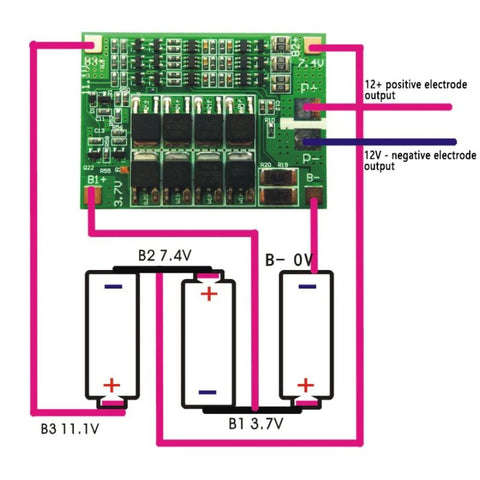

Wiring diagram (also the silk screen at the back of the pc board.)

3S 25A Lithium Battery 18650 Charger diagram
