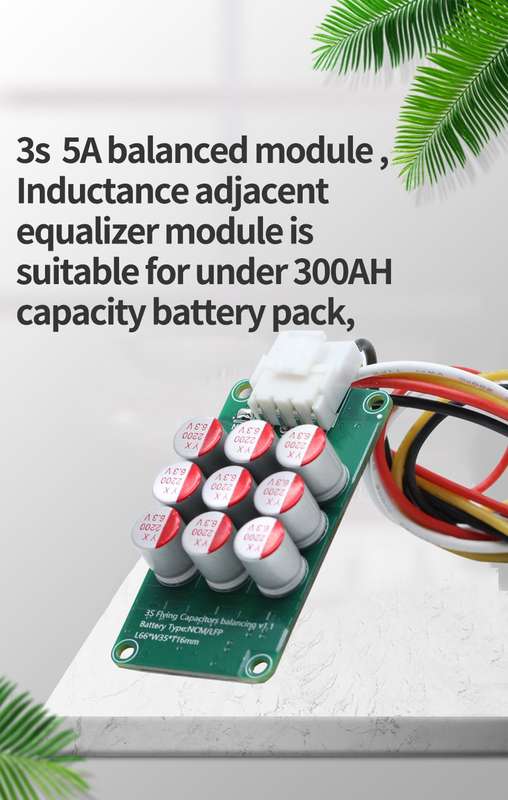

3S 5A BMS Lithium Battery Balance Li-ion Lifepo4 LTO Lithium Battery Active Equalizer Balancer Board

Technical Parameters:
Operating voltage 1.8V-4.5V, suitable for li-ion, LiFePo4, lithium titanate. Working principle: the balanced work will be started when the balanced board is connected to the battery. The original ultra-low internal resistance MOS and 2OZ copper thick PCB are adopted, And the balanced current is 0-5.5a, the more balanced battery, the smaller balanced current. The static current is around 12 mA. It is recommended that the battery capacity should be in the range of 60-300AH! With undervoltage dormancy protection, if the voltage is less than 1.8V, it will automatically stop into the dormancy state, standby power consumption is less than 0.1 mA.
Connection Definition:

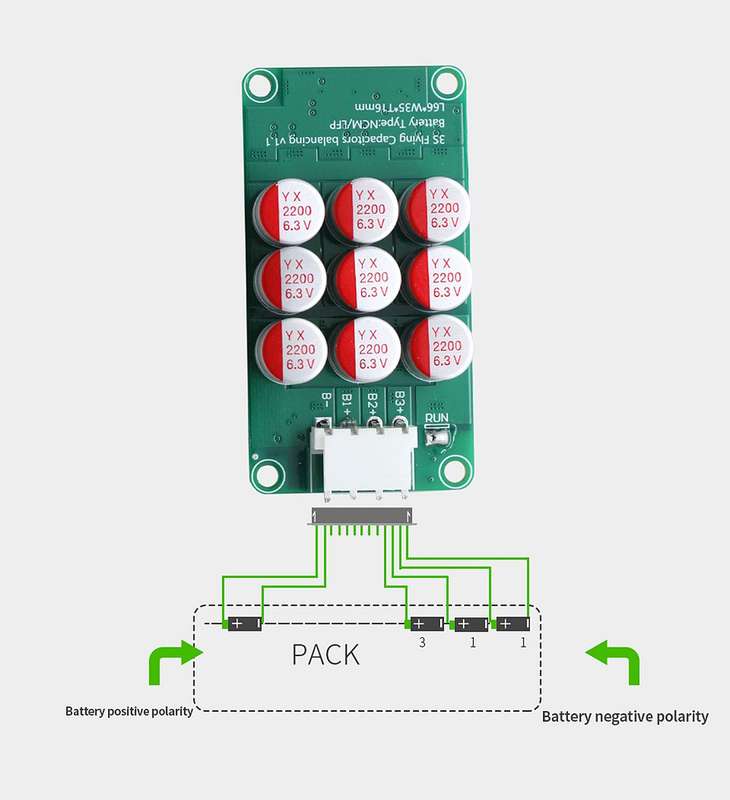

BC- Connect the first string of positive pole of the battery pack BC2 Connect the second string of positive pole of the battery pack BC3 Connect the 3rd string of positive pole of the battery pack. the total positive pole of the battery pack
Package Included:
1 x Lifepo4 LTO Lithium Battery Active Equalizer Balancer Board
