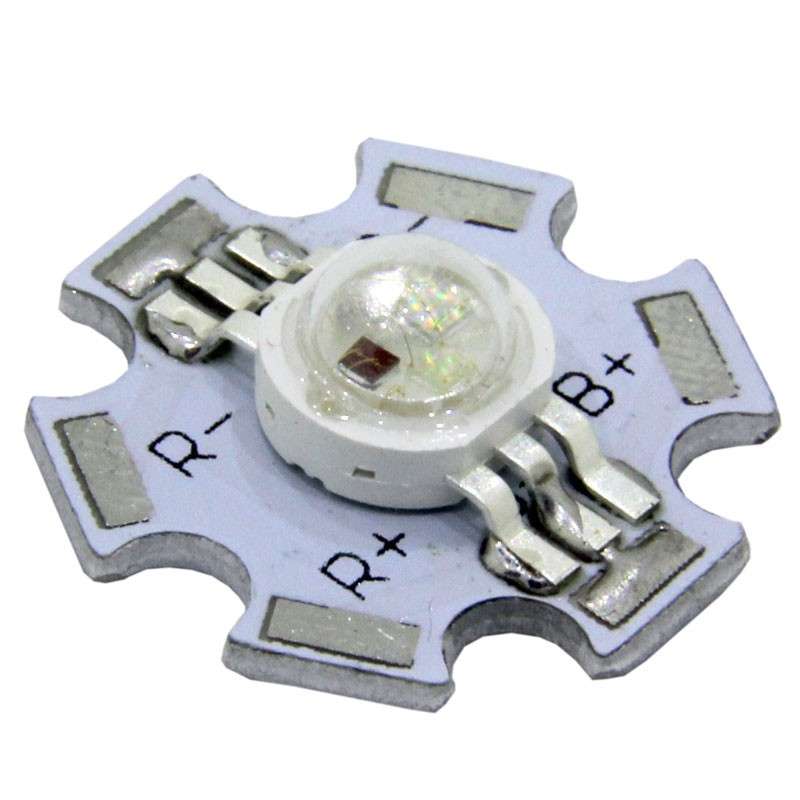

3 watt High Power RGB LED
LED With Three Separate Internal LEDs
The RGB STAR LED is very special in that it contains three separate LEDs. With a rating of 3 watt, current to the LED is optimal at 700mA for each colour.
Each RGB high power LED contains 3 anodes and 3 cathodes. Designed for operation in specialty lighting applications
Specifications:
RGB-3W-120-01
Color Frequency: Red: 620nm, Green: 520nm, Blue: 460nm
Luminous Intensity: Red: 65 lumen, Green: 80 lumen, Blue: 65 lumen
Viewing Angle: 120ᅡᄚ
Radiation Pattern: Lambertian
Forward Voltage: Red: 2.4v (2.4-2.6v), Green: 3.5v (3.4-3.6v), Blue: 3.4v (3.4-3.6v)
Typical Forward Current: 700mA
Style: 3 watt STAR Configuration (6 pin)
