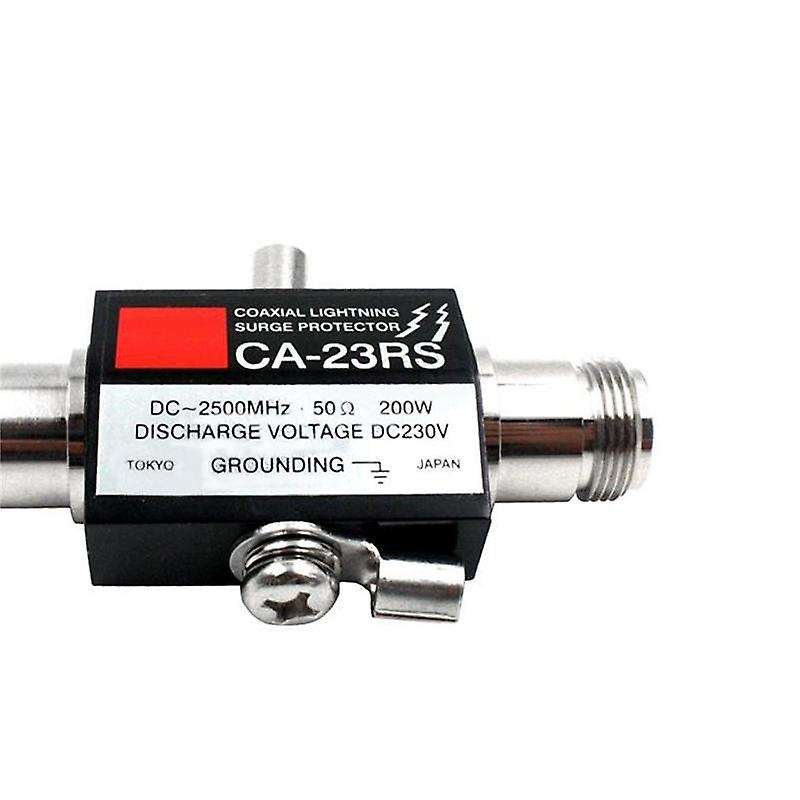

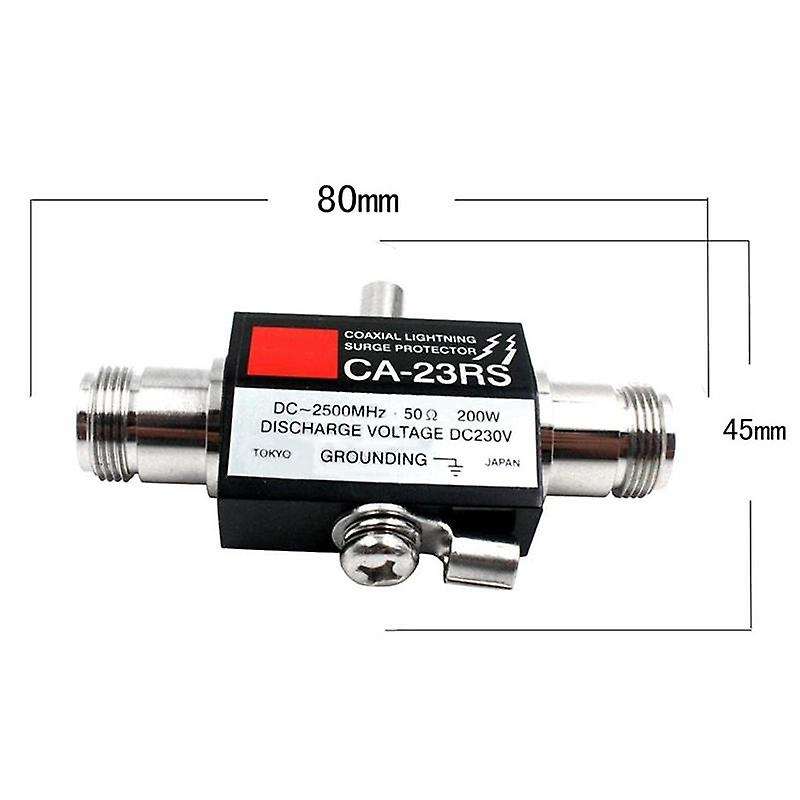

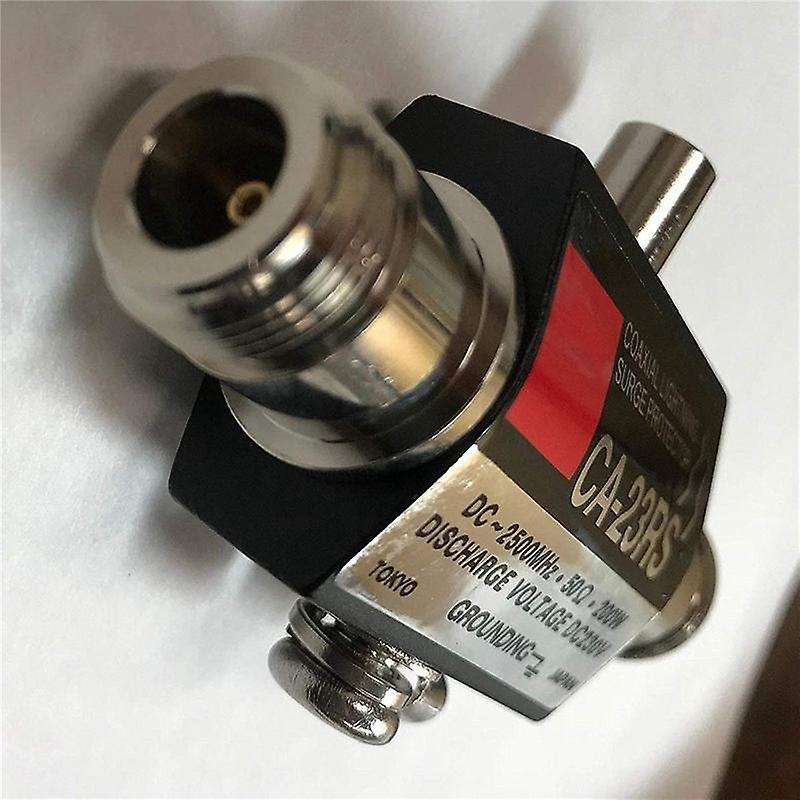

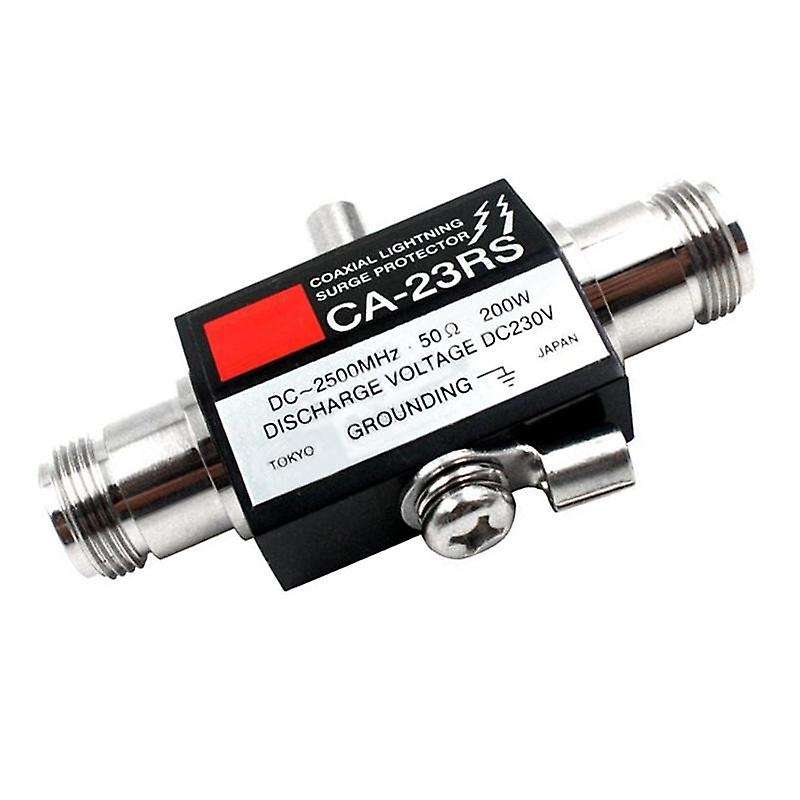

Operation: 1 When using the Coaxial Lightning-Surge Protector under the eaves,connect it with an antenna cable,For connection ,mount a plug(male)connector on both ends of antenna cable. 2 Clinch or solder a copper wire.2.5 to 3.2mm diameters,and connect top end of the wire to lightning-escape ground buried deep in the soil ground.It is recommended to connect the item and the ground as short as possible3 Be sure to ground lighting protector firmly .It is recommended to refer to a book on grounding or consult with a specialist in the field. (A) Use isolated independent ground .Do not share the ground with power line safety ground which is used to avoid electrocution. (B) Make ground resistance as small as possible (C) Make ground plate area as wide as possible to allow the plate to contact with earth soil as wide area as possiable by burming wide copper plate.(D)Isolate the ground as far away as possible with other ground.(E) Since the good is not waterproof ,locate them on the place where is not expose to direct rain fall or if they may exposed to water ,tape them firmly with water resistant adhesive tape. Caution 1 to inspect or replace the surge arrestor ,turn an aluminum knob whith a hand,slant the device and take it out.When tightening the knob,use a fingertip rather than a tool2 When using a tall antenna tower,ground the base of the tower with a thick wire.Mount a coaxial lightning-arrestor beneath the anenna,and ground the arrestor through the tower,In this case,apply an adhesive tape to the arrestor for weatherablility.3 Throung the good is very effective to protect from surge voltage caused by thunder-lightning,they can not prevent high voltge and current caused by lighting stoke.To prevent thunder stroke,install thunder conductor with thick cable described above and connect them to ground rodsColor: black + silverMaterial: ABS+ metalThe Surge Protector is a lightning-amestor of coaxial construction.The device is designed to absorb the surge of lightning-strikes on an antenna at the top of a bulking and ground it,thus providing full lightning-protection for transceivers,receivers,etc1 Designed with a stress on high safety,this device has a built-in gas-charging surge arrestor elements which discharges and ground the surge at the moment the surge voltage exceeds a specified level.2This device makes the actions of surge discharge and restoration as repeatedly as necessary.No replacement is practically needed .3 Should the surge arrestor elements be damaged,it can easily be replaced with a new element4 The coaxial construction of this device assures excellent high frequency characteristics,wide bandwidth and low loss and VSWR.Frequency Range DC~2500MHzVSWR Less than 1.1Loss Less than 0.2dBWithstand power 200W PEPVoltage at discharge start DC230V15%Discharge voltage of shock wave(1 x 40)uS 1,000VWithstand current of shock wave(1 x 40)uS 6,000ARepetitive discharge of shock wave(1 x 40)uS 500A,over 500 times DC230V20%Insulating resistance DC 100V Over 10,000M ohmsConnector N Male / N femaleOuter dimensions (Max.value incl.connector) 78W x 41H x 20DmmPackage Contents: 3 x Antenna Surge ProtectorOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
