3x1 (3 input ports) Manual HDMI Switch - Push Button Type

This device does not require external power and acquires power directly from HDMI 5volt port power provided on all players / sources and LCD's.

Tested 100% with all common HDMI sources such as HDPVR, Apple TV Player, Mvix (HDMI Version), Sony Playstation 3, Microsoft Xbox 360, DVD players and Blu-ray Players on the SA market.

HDMI devices (any source / player, LCD, Plasma etc) have different results when inserting HDMI Repeater devices depending on the equipment you are using (a repeater device is any switch / splitter / extender etc). Please ensure to get confirmation from the manufacturer of your source / player / LCD that the specific player or LCD can communicate via a HDMI Repeater. Some source devices might not allow any HDMI device between itself and the LCD and will only function via a direct HDMI cable to the LCD. The opposite is also possible where the LCD needs a direct connection to the source / player and will not accept a regenerated signal from a HDMI Repeater device. Your display or source manufacturer can confirm if their product supports the functions required.

This is 3 Port HDMI Selector from 3 HDMI signals and display it on one device making it an excellent choice for HDMI Select system.

Features :

● Support high-resolution display settings.
● Supports HDCP
● Compact in size (only 5cm x 5cm).
● 3 HDMI (hdcp) inputs.
● 1 HDMI (hdcp) output.
● No IR Remote needed.
● No Power Supply needed in most cases.
● Auto selects any active input signal from the three inputs to the single HDMI?output.
● Manual selection button (for manually selecting an input if needed).
● Signaling rates up to 10.2Gbits in support of 1080P Full HD displays.
● Powerful receiver equalization to compensate for 15m HDMI cable losses.
● Pre-emphasis to compensate for PCB losses.

Smart Function (Auto Selection): When more than one HDMI sources connected to the switch the user leaves the desired source on, the others off, then the switch will choose this source automatically and will route desired HDMI signal to the display. If several sources are powered on, the last powered source will be chosen. As result of this functionality, user could use simple method of power off/on sources to choose the desired HDMI? signal.

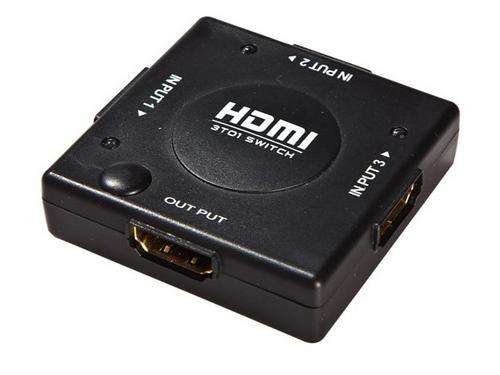

(*)This switch does not include any cables. You need to buy HDMI cables separately. Actual Image displayed on the right. Simulation displayed in image below. Switch does NOT include a remote control.

HDMI CABLES AND EQUIPMENT SHOULD NEVER BE CONNECTED / DISCONNECTED WHILE YOUR EQUIPMENT IS POWERED ON SINCE THE HDMI PORT CARRIES A LOW VOLTAGE BUT CAN CAUSE DAMAGE TO EQUIPMENT WHEN PLUGGED / UNPLUGGED WHILE POWERED ON. The sequence below should be followed when installing new cables or equipment between source/player and LCD / Plasma.

1.) Power-off all equipment (At the wall socket).
2.) Connect all Cables, Splitters, Switches, Extenders within HDMI Distribution Network.
3.) Power on all Splitters, Switches, Extenders within HDMI Distribution Network.
4.) Power on all LCD / Plasma's and set to HDMI input from HDMI Distribution Network.
5.) Power on Sources / Players (Sources negotiates HDCP Handshake via HDMI Network to displays which is set to HDMI input to respond to handshake).
