3x1 HDMI Switch & IR Remote | 4K x 2K Ultra HD

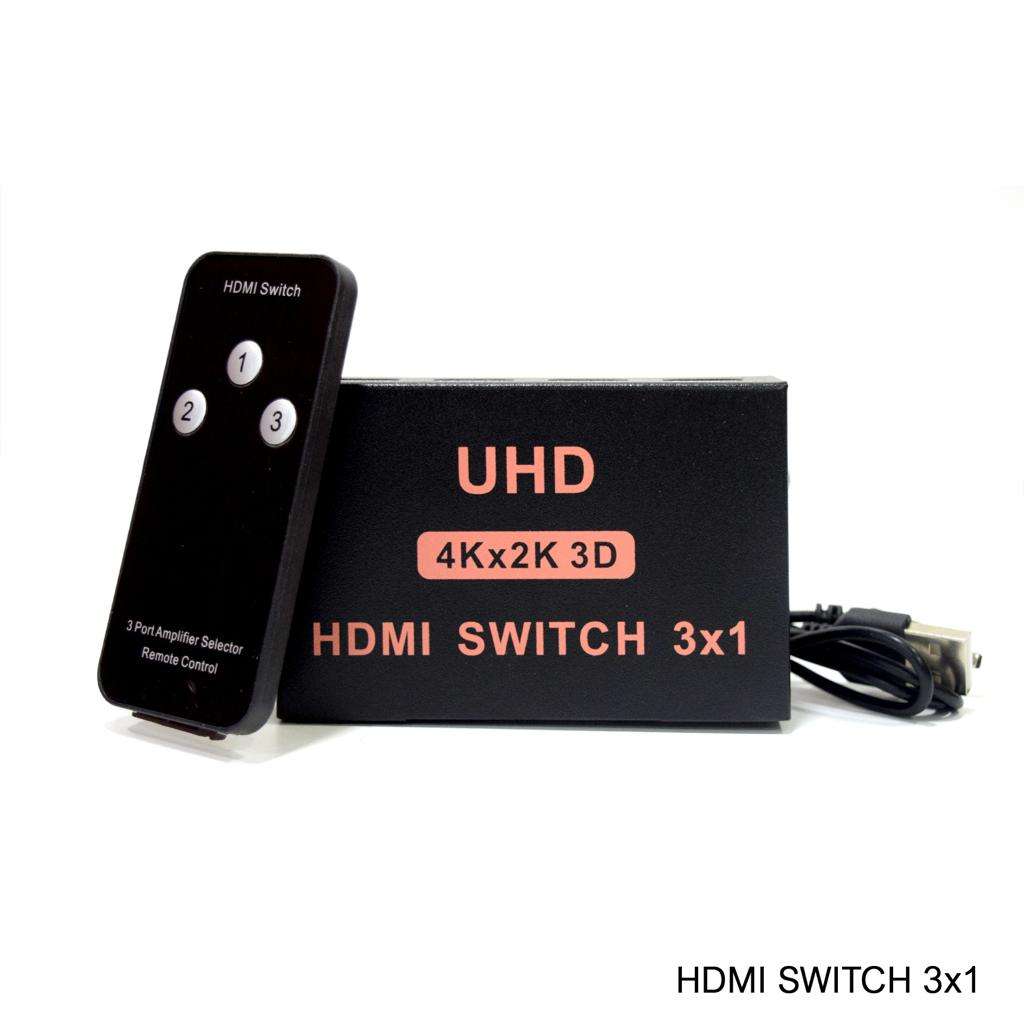

4K x 2K Ultra HD 3x1 (3 input ports) HDMI Switch with built-in Equalizer & IR Remote Control

This is a high performance 3 HDMI input and 1 HDMI output switch. The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K. Furthermore, the remote control is included and you will be able to control which source you would like to be on.

Features:

• Compliant with HDMI2.0, HDCP2.2 and DVI 1.0
• Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:2:0
• Support 3D frame sequential video format up to 1080p@60
• Support high resolution VESA mode video format up to QSXGA@60Hz
• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
• Supports smart auto switch function
• Supports IR and Panel button control

Specifications:

• Video Bandwidth - 300MHz/10.2 Gbps
• Input Ports - 3 x HDMI (Female type)
• Output Ports - 1 x HDMI (Female type)
• Output Resolution - 480i ~1080p50/60, 4Kx2K@24/30,
• 4k2k@60Hz with 12bit YCBCR 4:2:0, VGA~UXGA
• ESD Protection
• Human Body model: 8 kV (air-gap discharge) 4 kV (contact discharge)
• Dimensions - 64 mm (W) 155mm (D) 17 mm (H)
• Weight - 180 g
• Chassis Material - Metal
• Silkscreen Color - Black
• Operating Temperature - 0 C~40 C/ 32 F~104 F
• Storage Temperature 20 C ~ 60 C/4 F ~140 F
• Relative Humidity - 20~90 % RH (non-condensing)
• Power Consumption - 2W

Connect and Operate

Connect the signal sources such as Blu-Ray Player, Play Station 3, satellite receivers and computers equipped with HDMI output interfaces with a short high-speed HDMI cable to the HDMI Switcher input.

Connect the HDMI outputs from the HDMI Switcher to high-definition display devices such as HD-LCD, HD-DLP and HD projectors with HDMI input interfaces. Use high-speed HDMI cables that are recommended for the distances that are required for each connection
