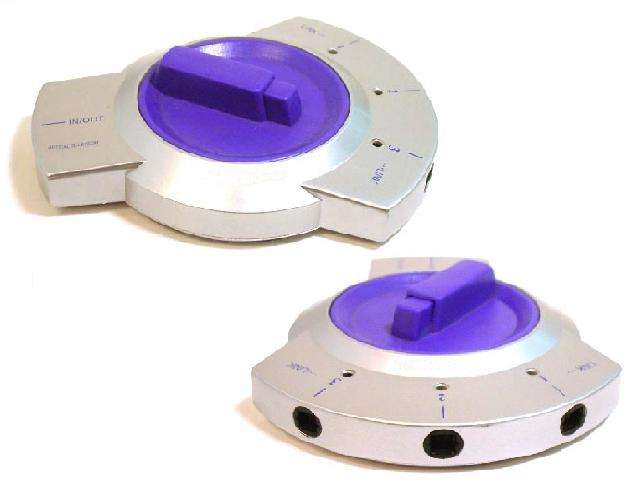

3x1 Optical Toslink Audio Bi-Directional Manual Switch

This switch enables you to connect 3 Optical Toslink input devices to one output device or vice versa.

Toslink cables have a flat side and a round side on the cable. The flat side is regarded as the "top" side and the rounded side as the "bottom" side. Please ensure when inserting the optical cables that the same optical density cables are used e.g OD 5.0mm or 6.0mm and that the "flat" side on the optical cable points towards to top side of the switch. Optical cables click into place when you have a secure connection to ensure the flow of the light signal to pass through correctly. Please ensure that the cable is properly inserted without bending or twisting the cable otherwise you will damage the switch and the optical cable. Push the cables inwards towards the switch ensuring "flat" side of all optical cables point to the top side of the switch until you hear a solid "click". The optical cable plastic mold should be touching the switch side if the cable is inserted properly and the cable clicks into place. All optical toslink cables on the HDCabling website are 5.0 Optical Density as per cable specifications.

There are 1-in and 3-out Signal Jack or vice versa.

The switch works Bi-Directionally.

Dimensions : 140mm(L) x 110mm (W) x 30mm(H)
