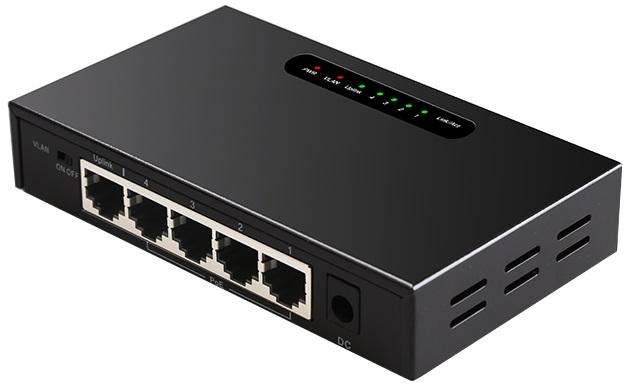

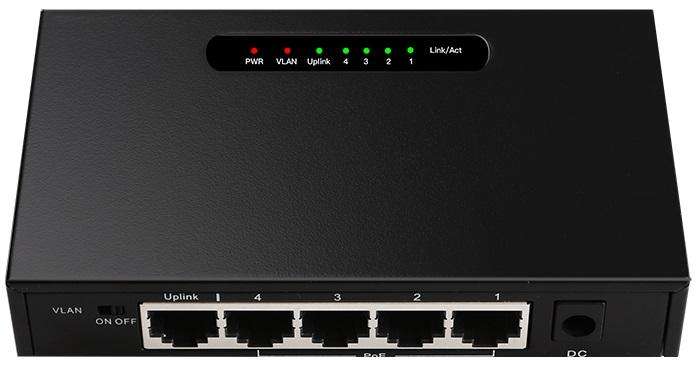

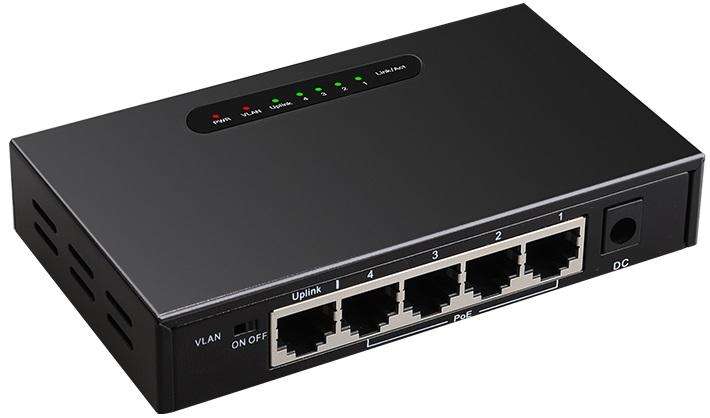

4+1 GIGABIT POE SWITCH

4+1 GIGABIT POE SWITCH - TXE038

5-Port 10/100/1000Mbps Unmanaged PoE Switch (4-Port PoE)

Hardware Specification

Model Name: TXE320

Chipset: AN8855H+TMI7604R

Standards And Protocols

IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x

IEEE802.1q, IEEE802.3az, IEEE802.3at, IEEE802.3af

Interface:  5 x 10/100Mbps Auto

Network Media

10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)

100Base-Tx: UTP Category 5, 5e Cable (Maximum 100m)

1000Base-T: UTP Category 5, 5e Cable (Maximum 100m)

Transfer Method: Store-And-Forward

MAC Address Table: 2K

Switching Capacity: 10Gbps

Packet Forwarding Rate: 7.44Mpps

PoE Ports (RJ45):  4 x PoE Ports Compliant With 802.3at/af

Power Pin Assignment:  1/2(+),3/6(-)

PoE Budget: 60W

Indicators

Per Device: Power, VLAN

Per Port: Link/Activity

Power Supply: DC 52V,1.25A External Power

Power Consumption:  Maximum (PoEon): 63W (220V/50Hz)

Dimensions (W x D x H):  123 x 70 x 23mm

Environment

Operating Temperature: 0? - 45?

Storage Temperature: -40?- 70?

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing

2 PIN Powercord Included
