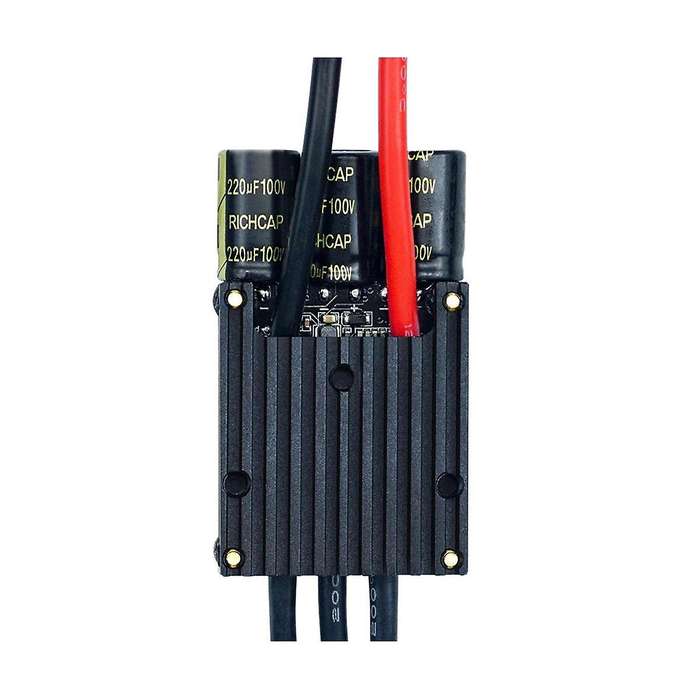

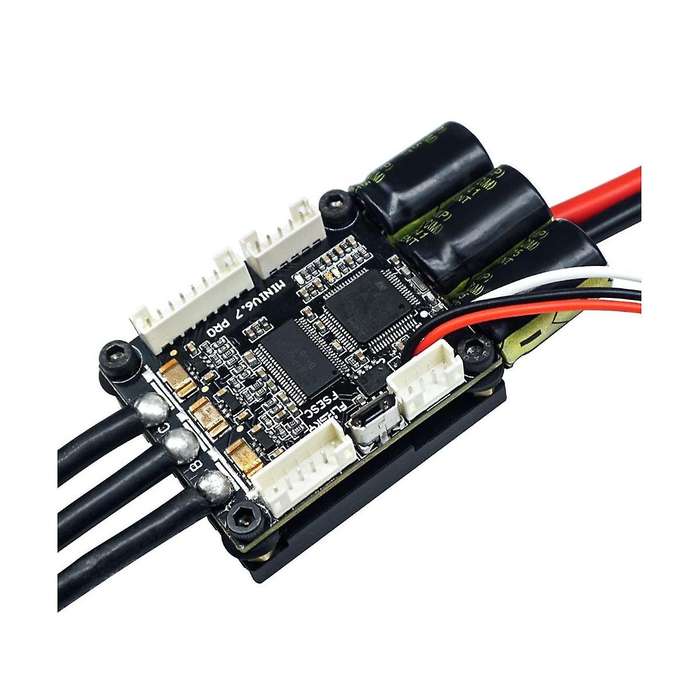

4-13S ESC Speed Control Mini FSESC6.7 70A Base on VESC6.6 with Aluminum Anodized Heat Sink for Brush

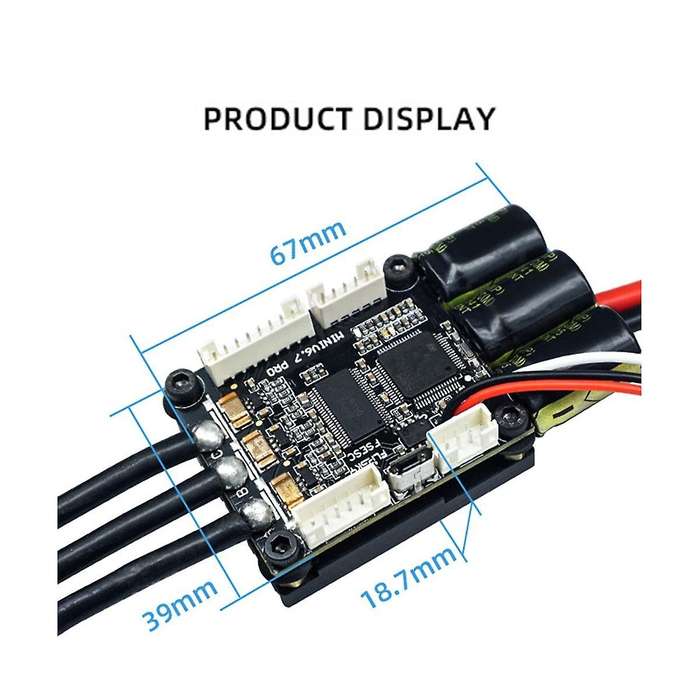

Support BLDC square wave mode control and FOC sine wave mode.Support USB online firmware update;Support three control mode: Current\/Duty cycle\/Speed control\/Position control modeSupport with for Hall(, HALL, AS5047, AS5048A) and sensorless Hall;Adjustable protection measures: low input voltage\/high input voltage\/ motor current\/high input current\/over-temperature protection (for MOSFET and motor);Voltage: 14V-60V (4-12S safety), voltage shall not exceed 60VContinuous current: 70APulse current: 200ADimension: 67X39X18.7 (mm)E PRM: 150000Motor Cable: 12AWGPower cable: 12AWGCommunication: PPM, ADC, , UARTCommunication port: USB, CAN, UART, SPI, IIC; Support sensors: for , HALL, AS5047, AS5048AControl modes: support current, duty cycle, speed, position control modesNote: Using any throttle grip, under ADC control, need to make the positive terminal of power supply is connected to 3.3V, not 5V.Material: PCBcolour: BlackPackage Contents: 1 x ControllerOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
