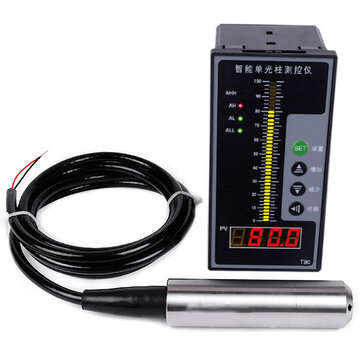

4-20MA Level Sensor Liquid Sensor Water Level Display Instrument / Beam Digital Display Control Inst

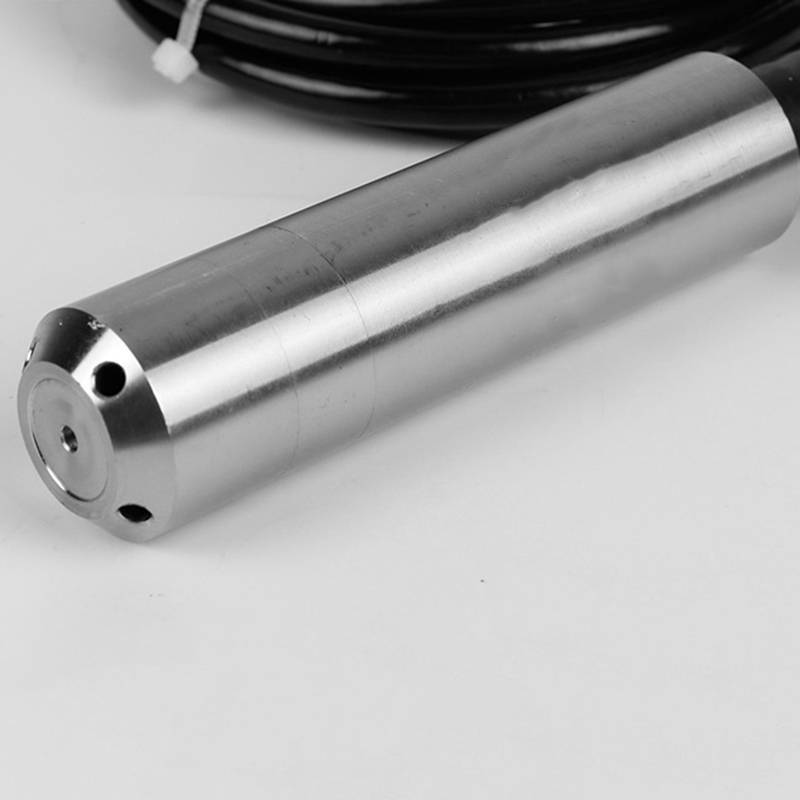

Filled with silicone oil, and the sensor chip is completely isolated from the medium, which can measure a variety of medium levels.

The medium can be a variety of liquids (for vacuum wire non-corrosive media, choose a material if it corrodes stainless steel or tetrafluoroethylene).

Low water level monitoring of open water tanks, depth or water level measurement of wells and open waters, groundwater level measurement, sewage treatment, water supply, and pharmaceutical industry, water system measurement and control of other industries.

Features:

Impact design

High accuracy and stability

Flexible installation and easy to use

Small size, light weight and shockproof

Low cost, impact design

Specification:

Measuring medium: water

Temperature: 0-50 Celsius

Sensitivity: 2.0MV / V

Overload pressure: 150% FS

Measuring range: 5m

Colour:Black, silver

Material:Plastic, metal

Size:Cable length: 6m

Package Contents:

1* Sensor(Can be used for water level/liquid level/oil level)

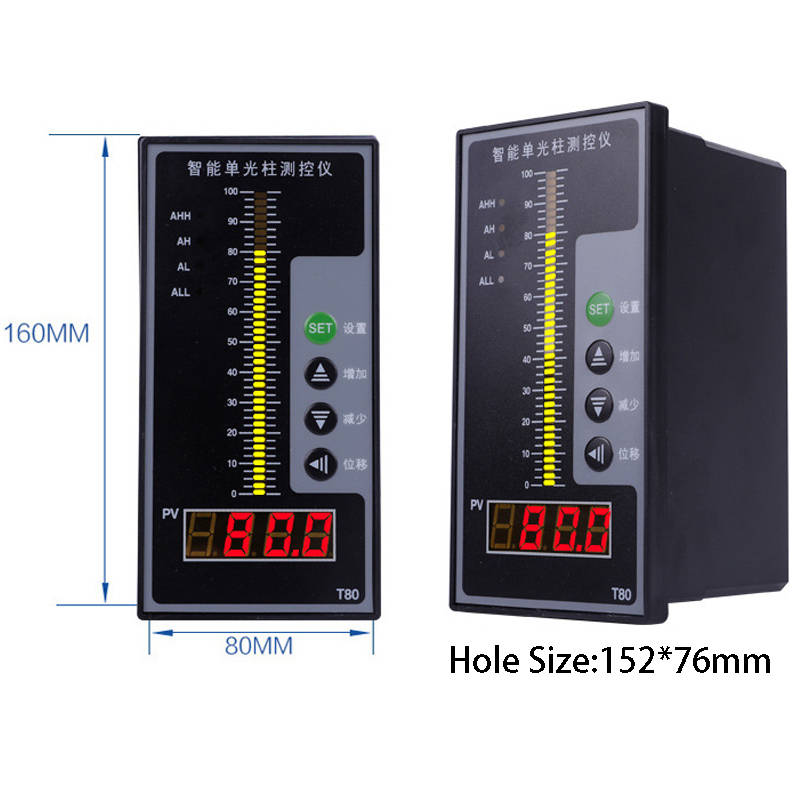

1* Display

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Details pictures:
