4-20mA to 3.3V5V10V Voltage Transmitter Signal Conversion and Conditioning Current to Voltage Module

20 available / new
R288.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641109938
Description:
In the process of circuit signal transmission, the voltage signal will weaken with the increase of the transmission distance, and the current transmission can avoid the weakening of the signal. The module is used for the end of current signal transmission, the signal is converted into voltage signal for SCM detection. The current input supports 4-20mA and 0-20mA, and the voltage output supports 0-3.3V 0-5V 0-10V. Features:

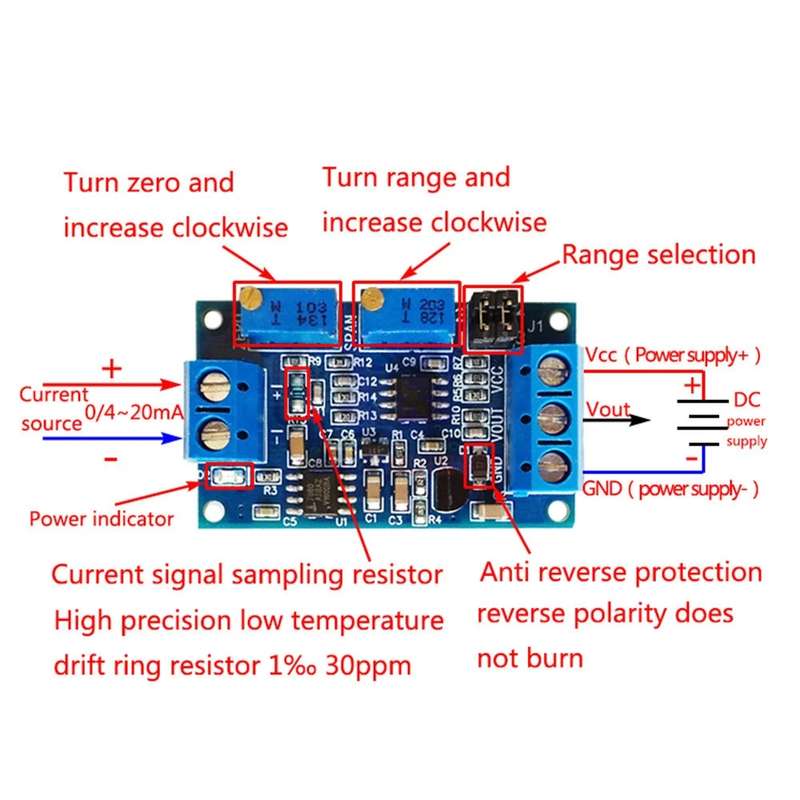

The power supply voltage range is wide, and the output voltage supports multiple ranges; Zero and full range can be adjusted automatically; High stability, good linearity, industrial grade; The sampling resistor of current signal adopts high precision color ring resistor, which has high precision, small temperature drift and high power Instruction: 1. The module is connected according to the definition, the supply voltage is 7-36V (if the output is to 10V, the supply voltage must be greater than 12V) 2. After power on, the D2 light should be bright, otherwise please check the line connection. Board with reverse connection protection, reverse connection not burning. 3. When the current input is minimum (0mA or 4mA), adjust the ZERO potentiometer, so that the output of VOUT is minimum (0.0V or other voltage) 4. When the current input is the maximum (20mA), adjust the SPAN potentiometer, so that the VOUT output is the maximum value (3.3V or 5V or 10V, when the input is 4-20mA, the minimum output can be 2.5V).
According to your needs, select the corresponding range by jumper cap: 4--20ma: 0--2.5V range: J1 1, 2 feet short connection, 3, 4 feet short connection 0--3.3V range: J1 1, 2 feet off, 3, 4 feet off 0--5.0V range: J1 1, 2 feet short connection, 3, 4 feet short connection 0--10.0V range: J1 1, 2 feet short connection, 3, 4 feet off 0--20ma: 0--3.3V range: J1 1, 2 feet short connection, 3, 4 feet short connection 0--5.0V range: J1 1, 2 feet short connection, 3, 4 feet short connection 0--10.0V range: J1 1, 2 feet short connection, 3, 4 feet off
Package Included:
1 x Current to Voltage 0/4-20mA to 0 -10V Transmitter Module
