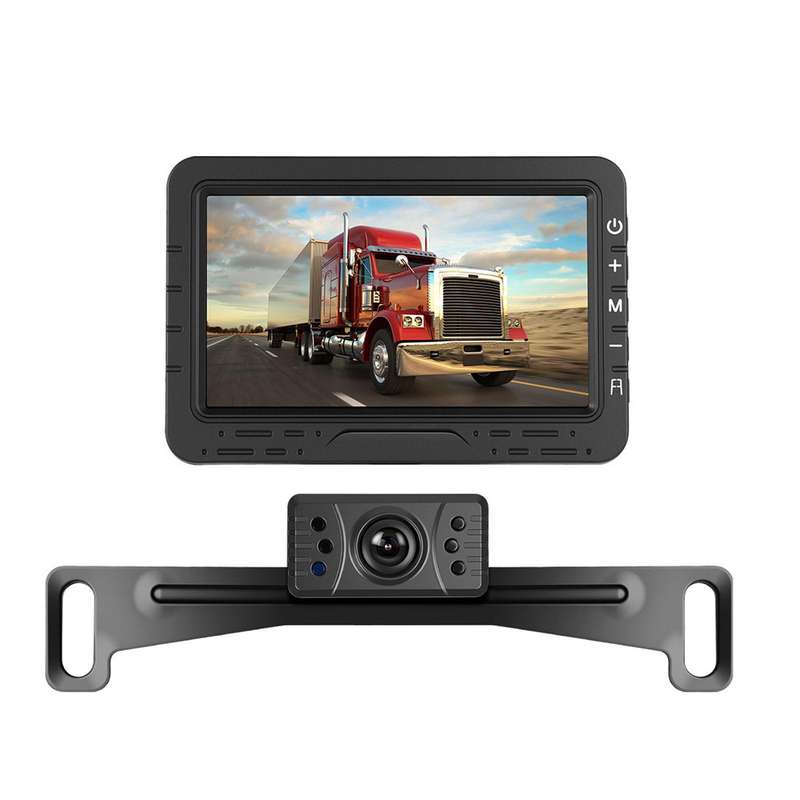

4.3 Inch Reversing Display Digital Wired HD 1 To 1 Set, Spec: North America

Monitor:
1. Camera: support 1 camera
2. Resolution: 480 x 272
3. Screen: TN
4. Operating temperature: -22 - 176 degrees Fahrenheit
5. Power: 5W
6. Contrast: 700:01:00
7. Material: plastic + metal
8. Language: Chinese, English, Japanese, Russian
9. Signal: 1080P
10. Standard: PAL / NTSC
11. Voltage: 12V
12. Brightness / contrast / saturation / color: adjustable
13. Camera mirror: support
14. Flip: support up and down flip
15. Reverse line switch: support
16. Custom reversing line:
- H: Overall left and right adjustment
- V: Overall height adjustment
- W: Width adjustment
17. Reverse delay: off/3/6/9/12s
18. Restore default value: support
19. Applicable models: general

AHD camera:
1. Standard: PAL / NTSC
2. Pixels: 1920 x 1080P
3. Video output: AHD video (1080P)
4. Night vision image: automatic control
5. Noise ratio (SNR): above 69dB
6. Minimum illumination: 0.01Lux
7. Working temperature: -22 - 176 degrees Fahrenheit
8. Chip: A4101

Features:
1. Simple installation method, two power supply methods, meet different needs, the monitor can support the input of two camera images at the same time, voltage 12V, suitable for most cars
2. High-definition video cable, video transmission cable can better transmit images to the display, so you no longer worry about blurred images and inaccurate colors
3. The 4.3 inch display is more realistic than ordinary displays, and the camera is waterproof and dustproof, making you safer when driving in extreme weather
4. High-definition night vision function with infrared night vision technology can provide clear and sharp images even in low-light or dim parking lots at night, ensuring safe reversing
5. Wide field of view, ultra-wide-angle lens design, effectively eliminating visual blind spots, and the surrounding environment is clearly visible, helping the driver to easily grasp the dynamics behind
6. Backup line guidance, built-in backup line, providing accurate guidance for parking

Packing list:
- Reversing camera x 1
- 4.3-inch display x 1
- Universal bracket with rubber pad x 1
- Power cord x 1
- Camera mounting screw kit x 1
- Extension cord x 1
- Car cigarette lighter x 1
- User manual x 1


TBD0606027101
