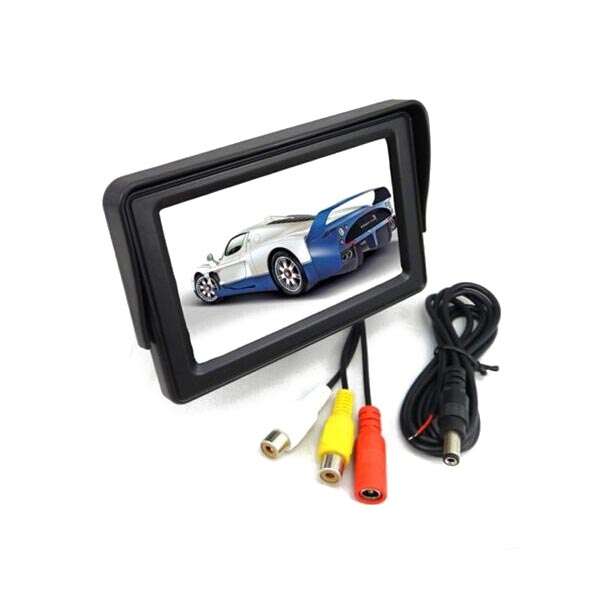

4.3 Inch TFT LCD Car Rear View Monitor Color Screen For CCTV Camera
Features:4.3" Car Rear View Monitor helps in preventing accidents while driving in reverse by avoiding children,
Traffic, pedestrians, toys and pets while backing out of the driveway or parking space
2-channel video input:V1/V2(Auto switching)
Video Frequency: PAL/NTSC
4.3" security color TFT-LCD Monitor, Easy to install
Low power consumption
Connect VCD/DVD/GPS/ car reserving camera etc
Display black screen on no signal
Specifications:Resolution: 1440H*272V
Aspect Ratio: 4:3
Contrast Ratio: 350:1
Visible Area: 96*54
Power Supply: DC 12V
Power Consumption: 2W
Working temperature: 0-80 degree

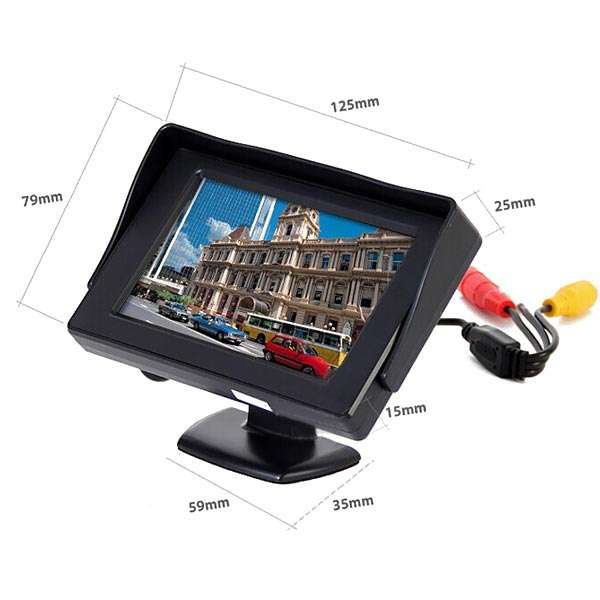

Dimensions:115mm (L) x 88mm(W) x 25mm(H)
Precautions:Do not block the vertilaion holes at the back of the monitor , keep the monitor from direct sunlight , heat, water or moisture,
Make sure the monitor stand is firmly fixed to secure location.

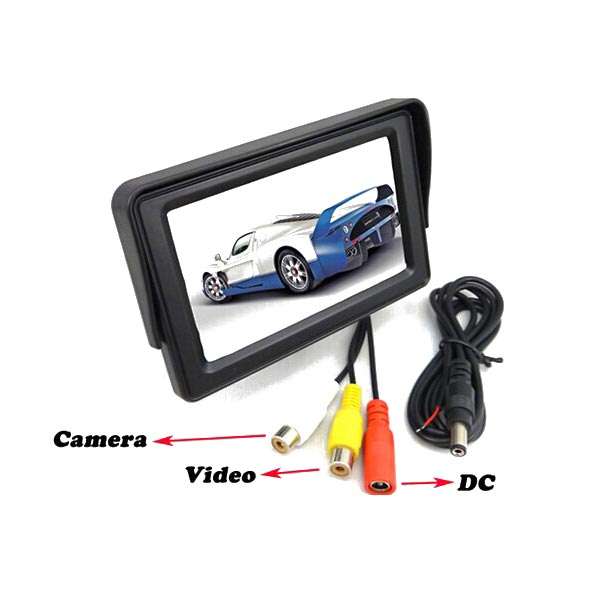

Note:Please Connect the Rear view camera's power cable with Reversing lamp,
And connect camera's video cable with LCD's yellow cable (Video V1),
Then the LCD will show Camera's video when you are Reversing, and stop playing movie (auto switching).

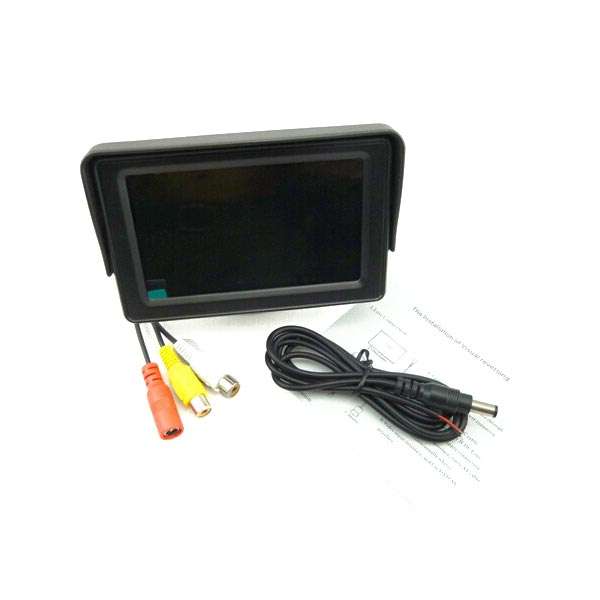

Package Included: 1 X LCD Monitor
1 X Power Cable
1 X User Manual
