4.3 Inch TFT LCD Car Rear View System Kit Monitor&IP Night Vision Reversing Camera

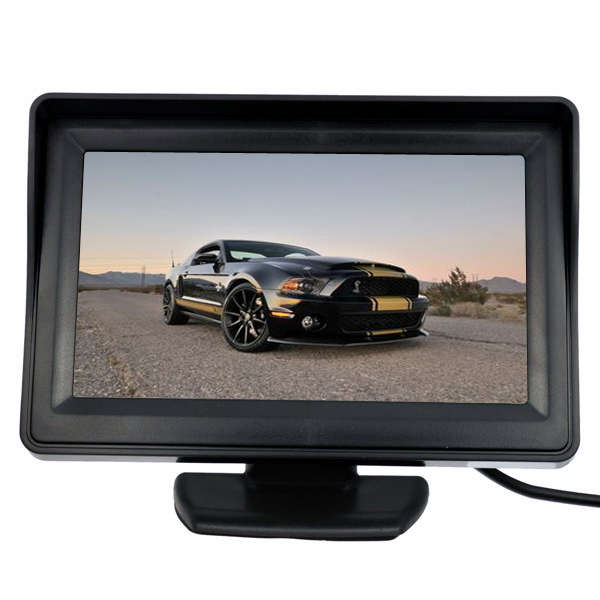

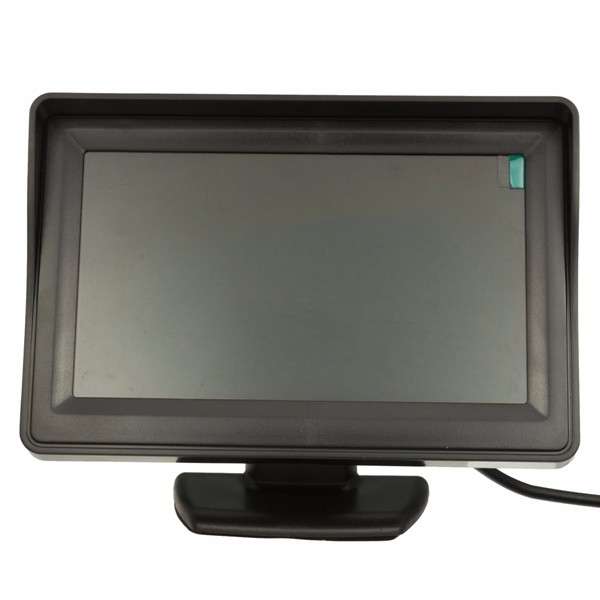

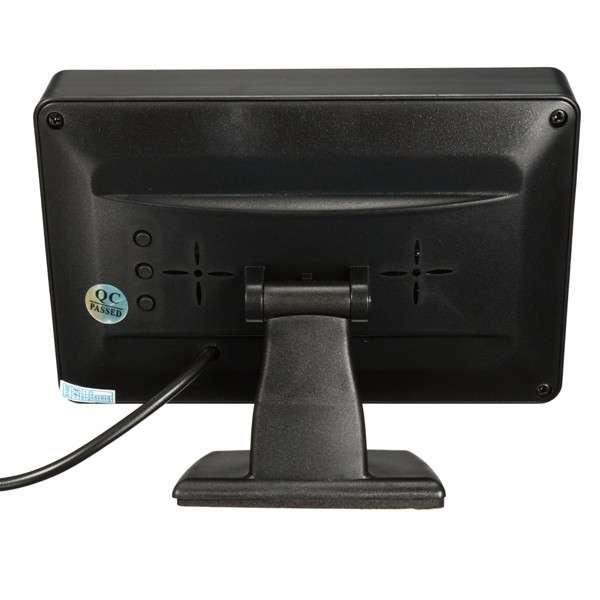

Item 1: 4.3" TFT LCD MONITOR
Specification:

Color	Black
Screen	4.3 inch TFT
Resolution	320(H)*RGB*240(V)
Model	PLA/NTSC
Power	DC 12V
Visible Area	96mm*54mm
Power Consumption	2W
2-Channel video input	V1/V2 auto switching(V1 display first)

Note:
Fit all CCTV camera,car reversing camera,car DVD player.

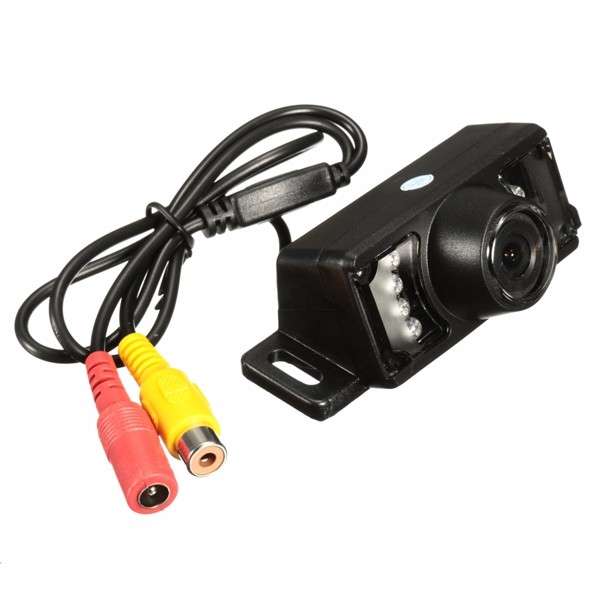

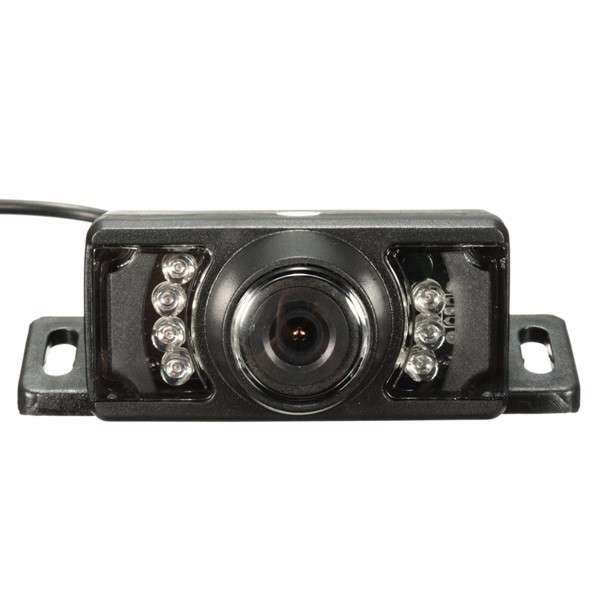

Item 2: 6 LED Reversing Camera

Sensor	CCD
TV System	PAL
Effective Pixel	622*586 pixels
Electronic Shutter	1/50-1/100,000 sec
Scanning System	2:1 Interface
Sync System	INternal
Resolution	420 TVLines
Lens Angle	2.8mm/120 degree
Sensor Area	5.961mm*4.276mm
Video Output	1.0 Vp-P,75Ohm
S/N Ratio	More than 48db
Waterproof	lp67-lp68
Minimum Illumination	0.2Lux/F1.8(0 Lux With LED)
Vurrenct Consumption	No More 300mA
Power Supply	DC 12V+/-10%
Operation Temperature	-20 degree-60 degree
Storage Temperature	-30 degree-60 degree
Other Items	Automatic white balance,Agc and BLC

Feature:
1. Waterproof IR camera with 6 LED.
2. 4.3" inch portable mini TFT LCD monitor.
3. Plug and play-easy installation
4. High resolution cameras.
5. Distance reference marking display

Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
3. Instruction is included.

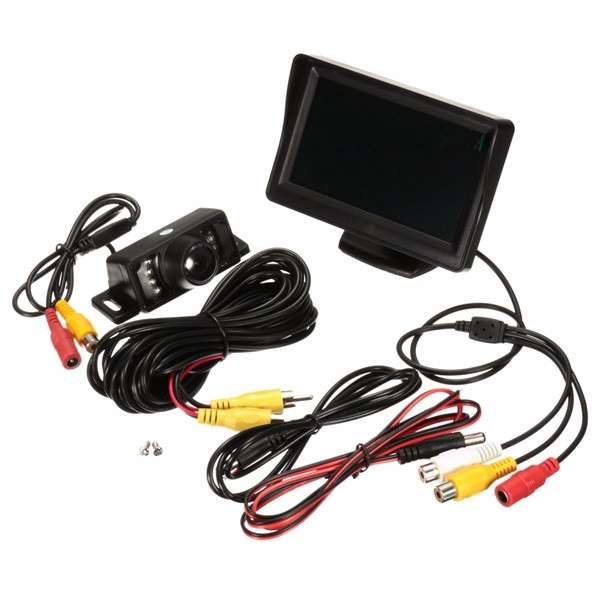

Package Included:

1 X 4.3" TFT LCD MONITOR	1 X 6 LED Reversing Camera
3 X Cable	1 X Instruction

Picture details:
