Description:
1. Video frenquency : PAL/ NYSC (automatic throw-over)
2. 2 channel video input : V1/V2 Auto Swiching (V1 display first)
3. With 2 video input : white video cable connects to car rearview camera,yellow one to other video equipment.
4. Parking rearview priority: the monitor will start up automatically, and synchronously display the video from rearview
camera when you 're backing your car, the monitor will close itself after backing. Scenes will cut to rearview camera automatically
while you're backing car and change back to the original scenes after that.
5. Support car DVD,VCD,camera,STB,satellite receiver,and other video equipment.

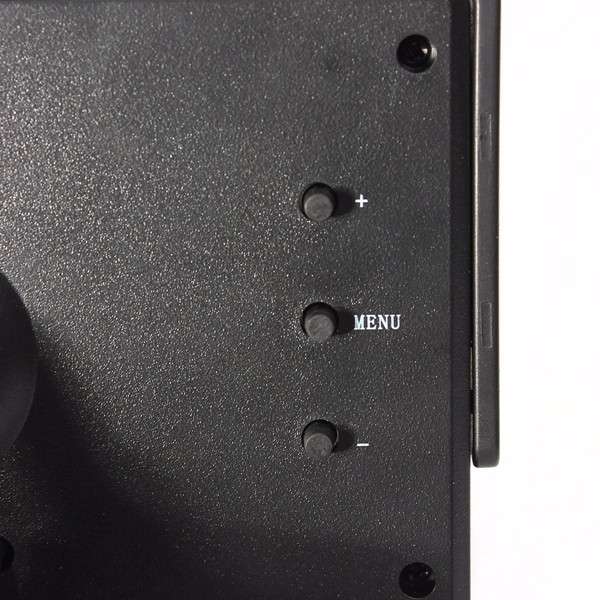

6. With menu buttons at the back, brightness/contrast/hue/saturation/language (Chinese/English/Spanish)adjustable.

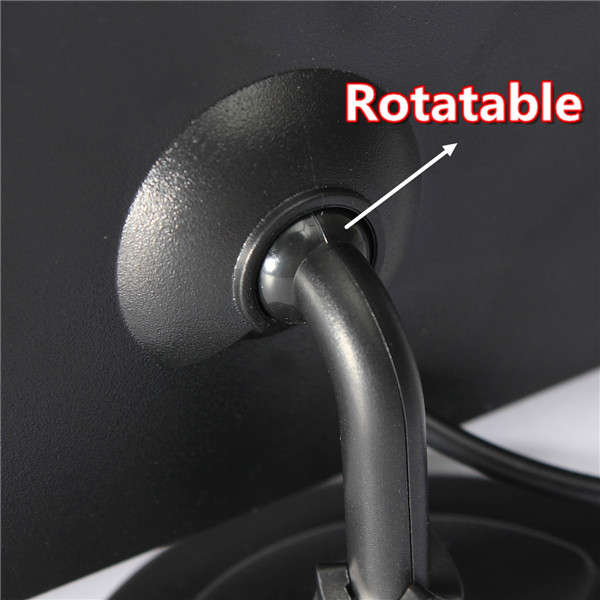

7. Screen rotatable.
8. Easy to install,with sticky pad at the bottom of stand.
9. Low power consumption.
10.No audio input or output.
11. Display black screen on no signal.
12.There are three wires, red for power, yellow for V1 and white for V2. And yellow V1 for rearview camera and white V2 for a frontview camera.
Specification:
| Screen/Monitor Type | Headrest Monitor |
| Unit Size | 4.3 Inch (16:9) |
| Aspect Ratio | 4:3 |
| Resolution | 320x240 |
| Housing | ABS |
| Power | 3W |
| Working Voltage | 11V |
| Power suppy | DC 11V |
| Monitor Dimensions | 120x70x15 (mm) |
| Visible Area | 96x54 (mm) |

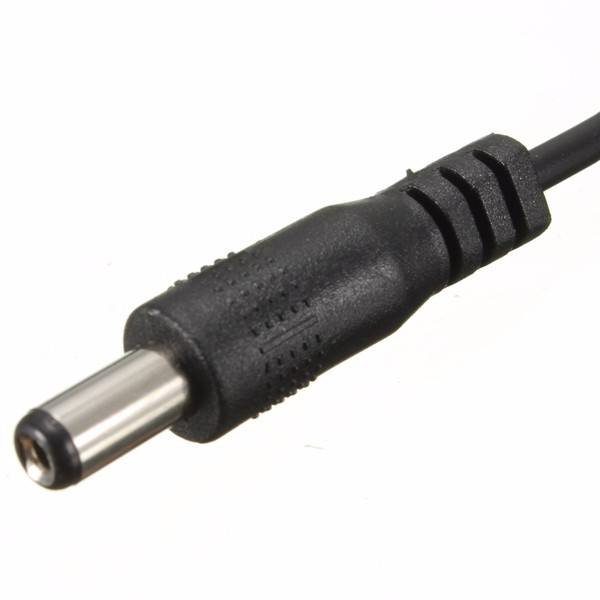

| Length of the DC power cable | 100cm |
| Package size | About 140mmx126mmx65mm |
Note:
Please connect the rearview camera's power cable with reversing lamp, and connect camera's video cable with LCD's yellow cable (Video V1),
then the LCD will show Camera's video when you are reversing, and stop playing movie (auto switching).
Package Included:
| 1 X 4.3 inch TFT LCD Car Monitor | 1 X Power Cable |
| 1 X Install Instruction |
