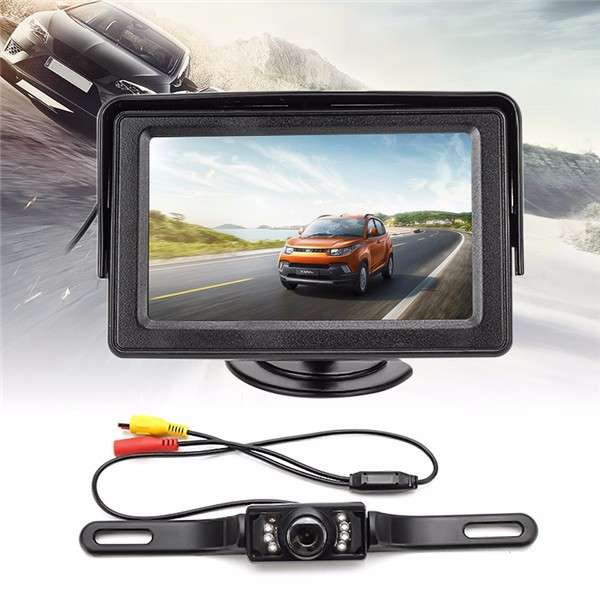

4.3 Inch TFT LCD Monitor 120 Degree Wireless IR Night Vision Reversing Camera Kit

4.3 Inch TFT LCD Monitor 120 Degree Wireless IR Night Vision Reversing Camera Kit

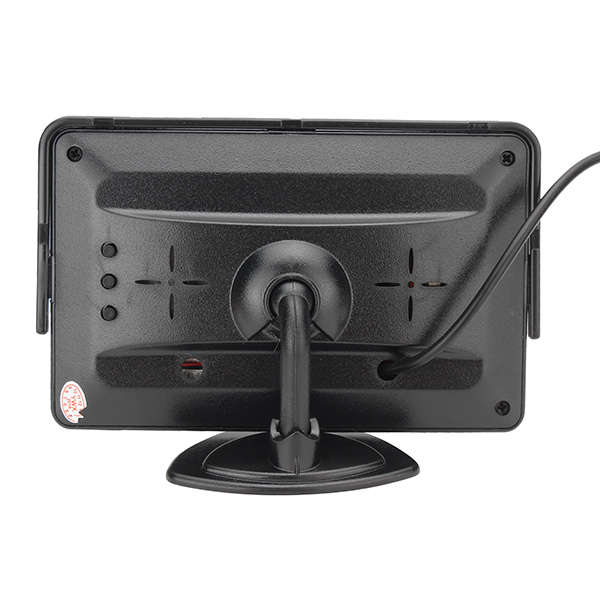

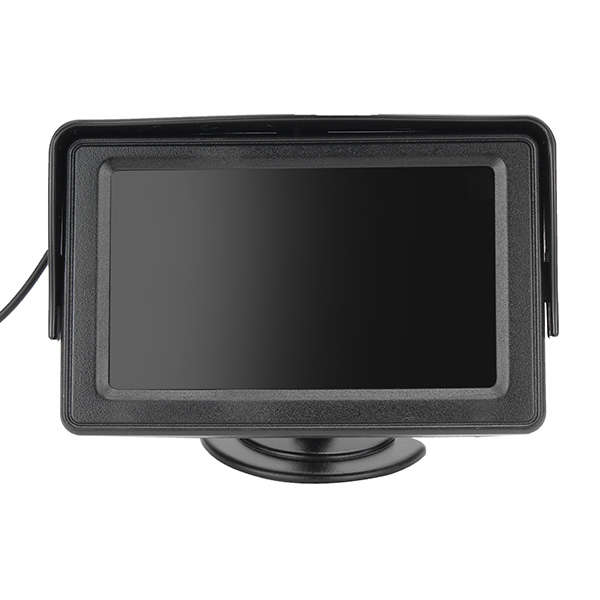

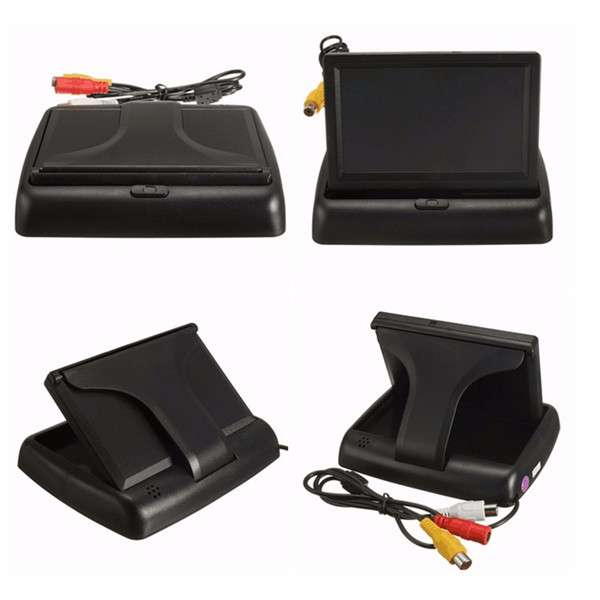

4.3 Inch Monitor

Feature:
- Foldable design can better protect the screen against dust, dirt, bumps and scratches
- Under the on state: In the process of driving,reversing,automatically from the video AV1(VCD/DVD)playing screen
   switch to AV2(rear view camera)screen.After the reversing,auto switch back to video AV1(VCD/DVD)playing screen,
   make driving entertainment and reversing safety compatible
- Under the off state:Reversing parking,auto power on,get AV2(rear view camera)signal and display AV2 rear view screen,
   after reversing,auto shut off,more power saving.

Specification:

Color	Black

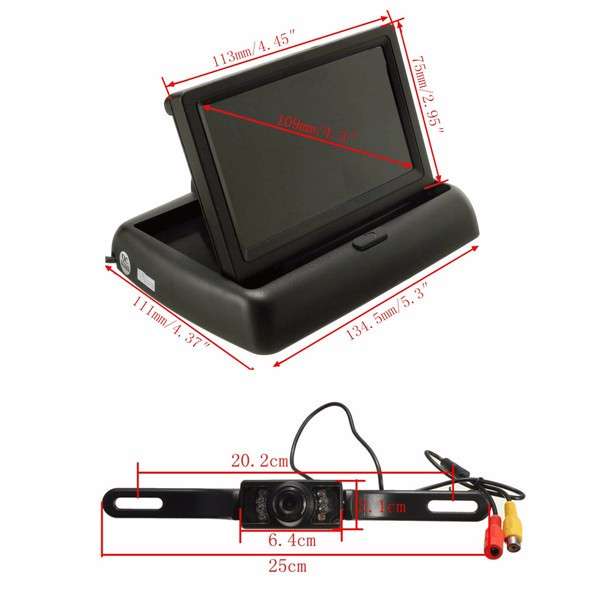

Screen Size	4.3 inch TFT LCD screen(Best size for rear view)
Aspectratio	16:9 or 4:3
Power Supply	DC 12V
Resolution	480(H) * RGB * 272(V)
Consumption	≤ 4.5W
Video input	AV1/AV2,AV1 connect VCD/DVD video output signal (system default),  AV2 connection reversing camera (auto switch when reversing)
Video System	NRSC/PAL/AUTO,Compatible with all system

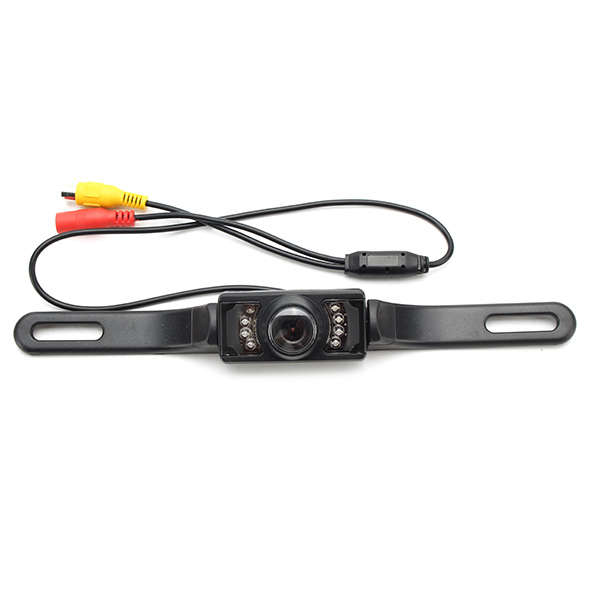

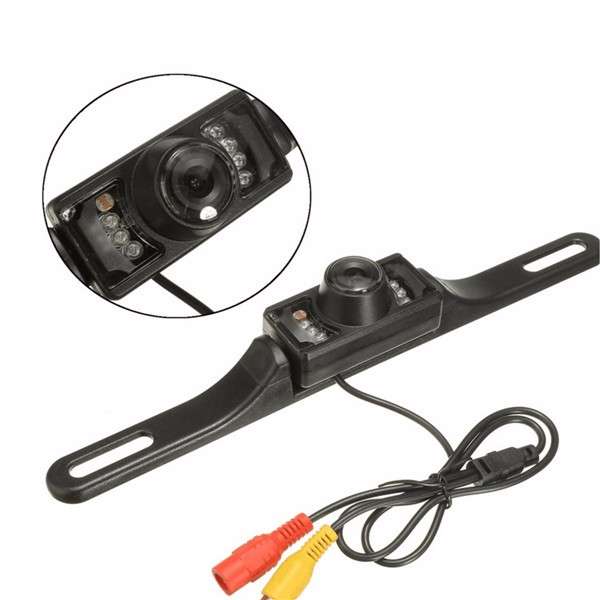

IR Reversing Camera

Feature:
- 120 degree Viewable Angle.
- Night vision.
- Built-in 7 LED light.
- Waterproof,weatherproof and anti-shock

Specification:

Image Chip	1/4 CMOS PC7070
Format	PAL/NTSC
Power Supply	DC 12V
Resolution	600 TV lines
Lens	1.8mm
SNR	≥48db
Maximum Angle	Horizontal 120 degree,Diagonal 120 degree
Video Outoput	Composite video(1.0 Vpp,75 ohm,RCA)
Operating Ambient Temperature	- 20¿¿¿ ~ + 70¿¿¿,95% RH maximum
Storage Temperature	- 40¿¿¿ ~ + 100¿¿¿,95% RH maximum
Waterproof	IP66
Image Rollovers	Mirror image

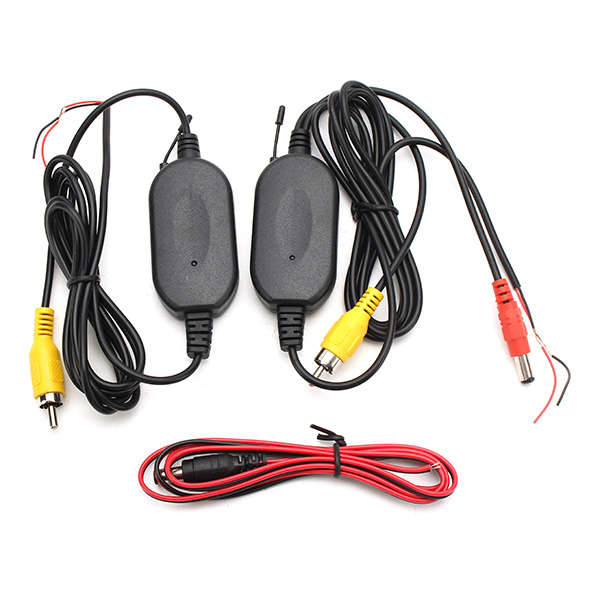

Wireless kit  (Wireless 2.4GHz transmitter & receiver set)

Specification:

Transmit Receive Frequency	2370 MHz
Output Power	100MW
Working Voltage	DC 12V
Video input	PAL/NTSC   Composite video signal
Transmit Receive Distance	100M maximum
Work Temperature	- 20¿¿¿ ~ + 80¿¿¿
Video Output	PAL/NTSC   Composite video signal
Receiving Sensitivity	- 85Dbm

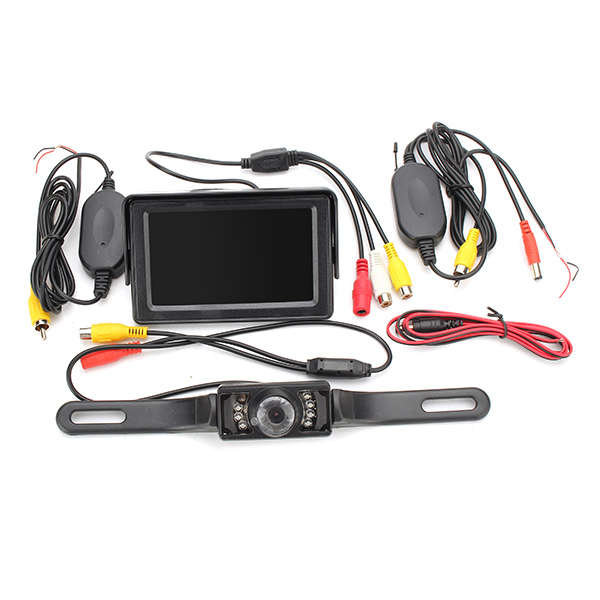

Package Included:

1 X 4.3" Car Monitor	1 X 7LEDs Car Rear View Camera	1 X Wireless Transmitter
1 X Wireless Receiver	1 X Power Cable	1 X Monitor Mat
1 X User Manuals
