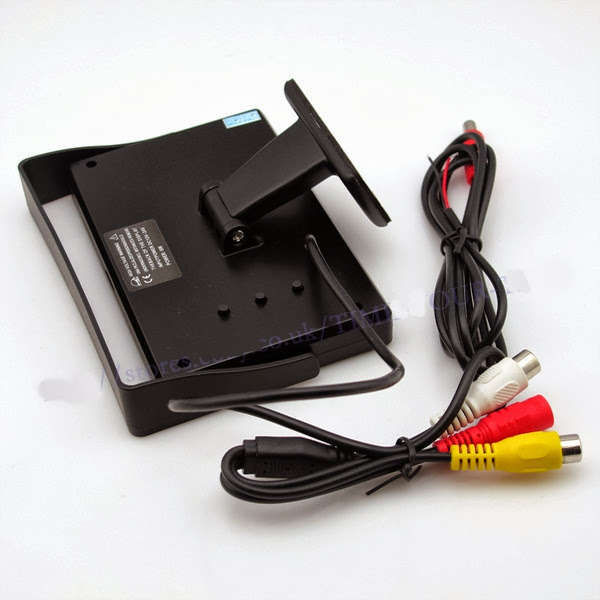

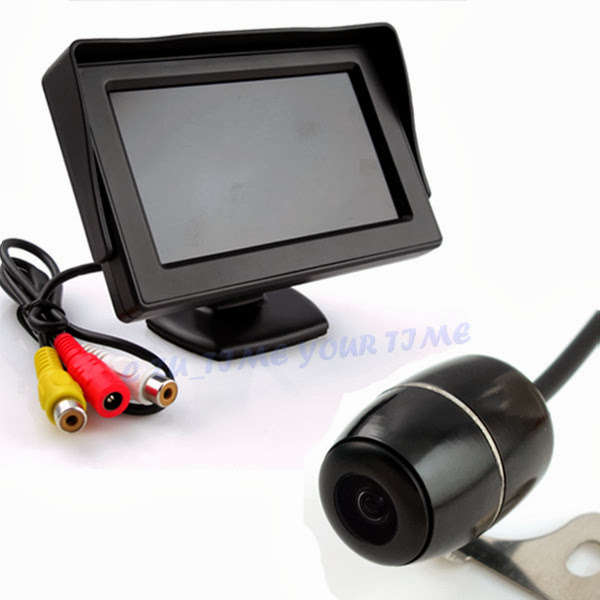

4.3" LED Backlight Color TFT LCD monitor.
High-resolution picture.
Full color LED backlight display.
With 2 video inputs: White video cable connects to car rearview camera, yellow one to othervideo equipment.
Parking rearview priority: The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing your car; the monitor will shut down reversing. Scenes will cut to rearview camera automatically while you're backing the car and change back to the original scenes after that.
Supports Car DVD, VCD, camera, STB, satellite receiver, and other video equipment.
Screen rotatable.
Easy to install.
Low power consumption.
No Audio input or output.
Specifications:
Digital color TFT monitor.
for a camera for rear view and front view or side view.
Screen size: 4.3 inch TFT 16:9 screen.
Pixels: 480 x RGB x 272.
Signal system: PAL/NTSC auto switchable.
Operant power: 12V DC.
Current consumption: 3W(MAX).
Operation temperatures: -10ï½ÂÂÂÂÂÂ+50 degrees.
Storage temperatures: -30ï½ÂÂÂÂÂÂ+70 degrees.
Video signal: 1 Vp-p 75 degrees.
Open Size:13.5cm x 11.2cm x 9cm.
Close Size:13.5cm x 11.2cm x 2.5cm.
Package Included:
1 x 4.3 Inch Monitor
1 x Power cable
1 x Mat

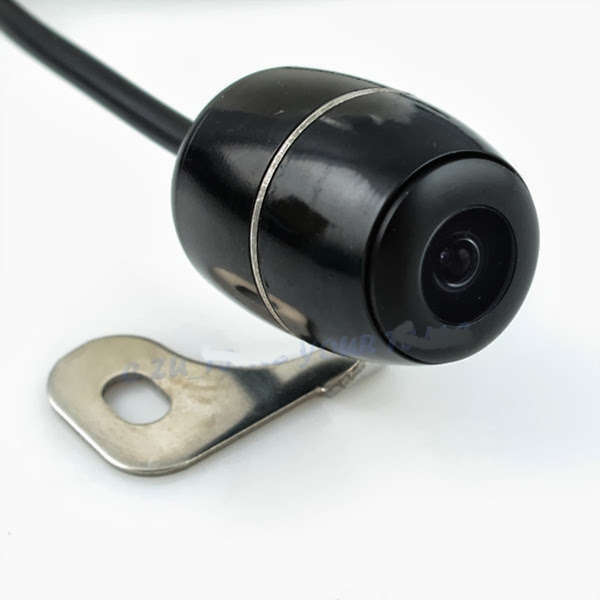

This mini car rear view camera is applicable to variety of vehicles: car, truck, RV, etc and it helps to avoid incidents and ensure your safety.
Features:
Anti fog glass.
Low illumination level, it can work within 3 meters at night and other dark environments.
CMOS imaging sensor.
Support NTSC video system.
High grade of waterproofing: IP66.
High-definition and 150 degree wide viewing angle.
Applicable to variety of vehicles: car, truck, RV, etc.
Easy to install.
Its simple and modest design and mini size won't draw any attention.
It helps to avoid incidents and accidents abrasion well.
Specification:
Image Sensor: CMOS 1/4 MT9V125 or PC1030, color
TV system: NTSC
Horizontal Resolution: 420 TV lines
Effective Pixels: NTSC:510(H)x 492(V)
Minimum Illumination: 0.5 Lux
Lens: 13.5mm
View Angle: 150 degree
Sync. System: internal
S/N Ratio: >48db
Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
Video Output: 1.0Vpp, 75Ohm
White Balance: Auto
Power: DC 12V
Current Consumption: 90mA
Operating Temperature: -20 to + 70°C, 95% RH maximum
Storage Temperature: -40 to + 100°C, 95% RH maximum
Water-proof: IP66
Image Reverse: Left-right mirror
Video Cable Length: 6m
Power Supply Cable Length: 1.5m
Package Includes:
1 x Car Rear View Camera
1 x Video Cable
1 x Power Cable
1 x Screw(for bracket mount)
Installation:
Connect the yellow video output connector to terminal display device.
Connect the black power input connector to power output device.
