4.3in LCD Color Display 480 x 272 pix

4.3in LCD Color Display 480 x 272 pix

New 1 available
Only 1 left – grab it before it’s gone!
R1,472.80
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Returns
Warranty Type: Manufacturer https://acrobat.adobe.com/id/urn:aaid:sc:EU:60f589d9-954e-4367-b1cd-895555c7a9d4 Money-Back Guarantee: 7 Days: Money back in 7 days or replacement if available
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
DIS-0024
Bob Shop ID
643620516
Features:

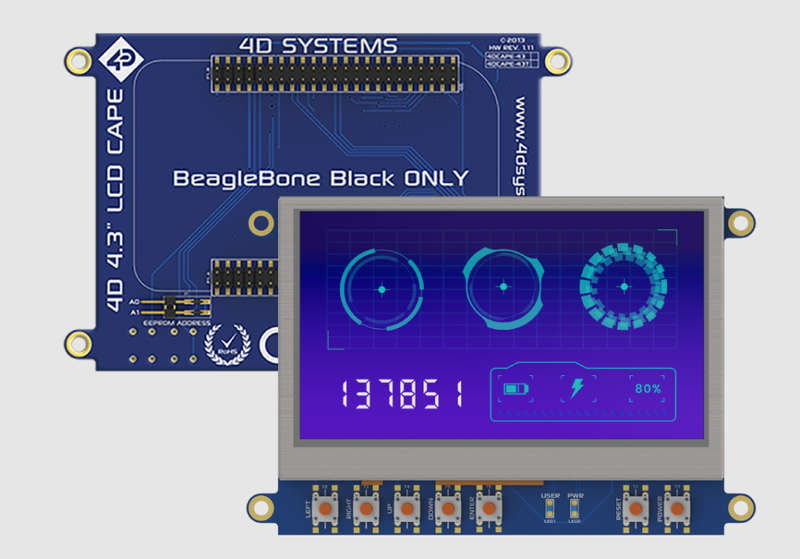

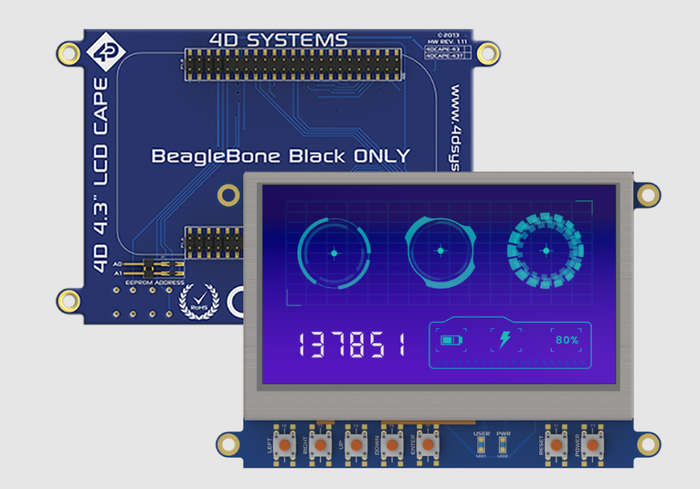

  • 4.3-inch TFT LCD screen with 480x272 resolution
  • LEFT, RIGHT, UP, DOWN, ENTER, RESET, and POWER are among the seven pushbuttons.
  • Two LEDsone for power and the other for the userthat can be adjusted as needed
  • Completely compatible with drivers that have already been developed for the Beagle Bone.
  • Version 4DCAPE-43T (Resistive Touch)
  • 3.5mm mounting holes that allow the monitor to be attached to an enclosure, panel, or other mounting solution using conventional M3 screws or bolts
  • No additional power is needed because the Beagle Bone Black powers it directly.

Specifications:
  • Diagonal Display Size INCHES: 4.3
  • Resolution: 480×272
  • Brightness: ~500 cd/m2
  • Backlight LEDs: 2×5
  • Touch: Resistive-Touch
  • Operating Ambient Temperature: -15°C to +65°C
  • Storage Temperature: -30°C to +70°C
  • Display Viewing Area (mm): 95.04 x 53.86
  • Module Dimensions (mm): 80.00 x 121.40 x 22.40
  • Supply Voltage: 5.0V DC
  • Supply Current: ~2A (for BBB)
  • Frame Rate: 25 fps
  • Colors: RGB 65K
  • Viewing Angle: Standard Viewing Angle
