Color | Black |
Aspect Ration | 4:3 |

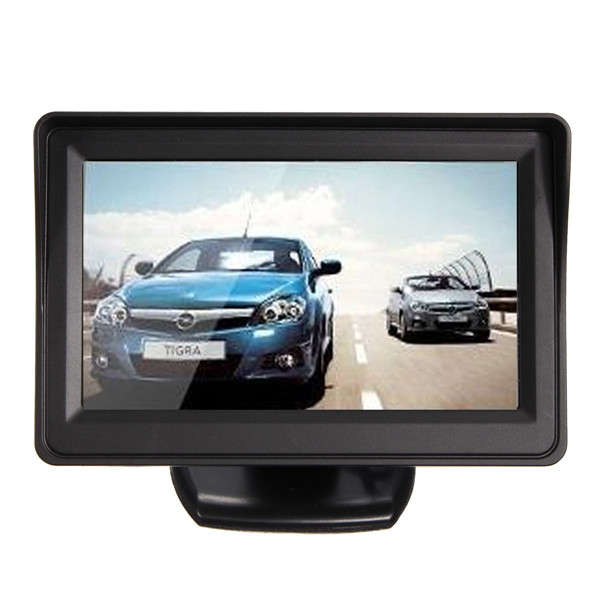

Screen size | 4.3 inch |
Resolution | 480x272 |
Power supply | DC 9V-36V |
Housing Material | ABS |
Video input | One way video input |
Display Component | Color TFT LCD |
Lens | 2.0cm |
Color | Black |
TV System | NTSC |
S/N Ratio | >48dB |
Water-proof | IP66 |
Power | DC 12V±10% |
White Balance | Auto |
Camera Size | 22*21mm |
Sync. System | Internal |
Video Cable Length | 6.0m |
Video Output | 1.0Vpp, 75Ohm |
Length Angle | 120 degree |
Cable Length of Camera | 59cm |
Scanning System | 2:1 Interlace |
Power Supply Cable Length | 41cm |
Image Reverse | Left-right mirror |
High grade of waterproofing | IP66 |
Horizontal Resolution | 420 TV lines |
Effective Pixels | NTSC: 510(H) * 492(V) |
Current Consumption | No More Than 300mA |
Image Sensor | CMOS 1/4 MT9V125 or PC1030, color |
Minimum Illumination | 0.2 Lux/ F1.8(0 Lux with LED) |
Storage Temperature | -30¬トテ to + 60°C, 95% RH maximum |
Operating Temperature | -20¬トテ to + 60°C, 95% RH maximum |
Electronic Shutter | 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds |
