4.5 Inch Flex Sensor For Robot/ Virtual Motion Gaming / Musical Instruments / Computer Periphera

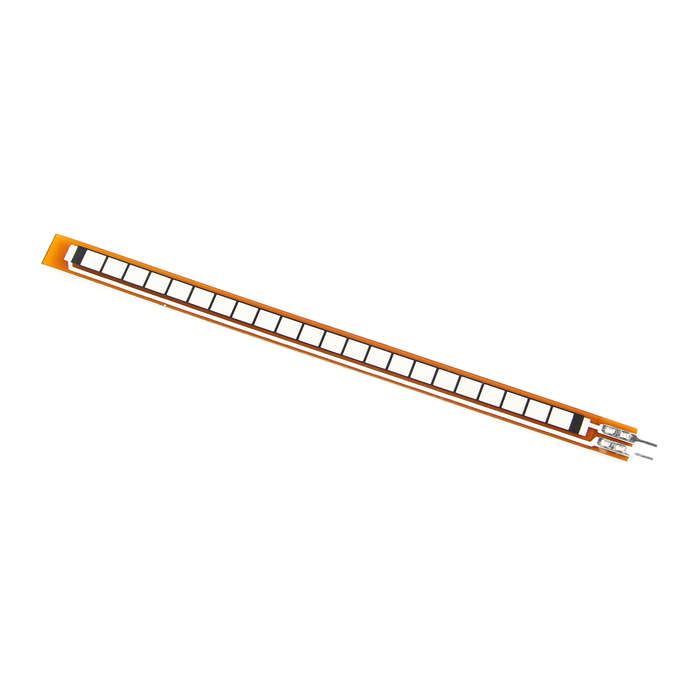

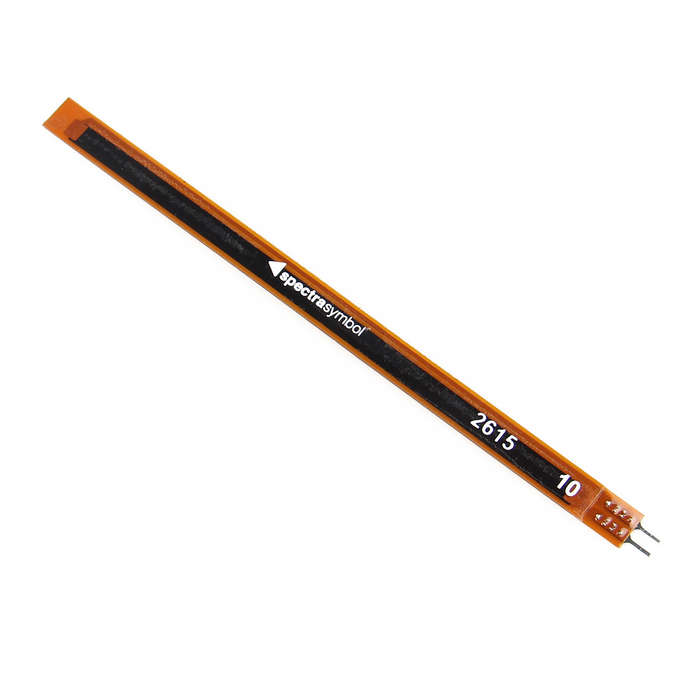

Descriptions: A simple flex sensor 4.5 inch in length made by SPARKFUN. As the sensor is flexed, the resistance across the sensor increases. The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend). Connector is 0.1 spaced and bread board friendly. Check datasheet for full specifications. Features:
1. Angle Displacement Measurement 2. Bends and Flexes physically with motion device 3. Possible Uses 4. Robotics 5. Gaming (Virtual Motion) 6. Medical Devices 7. Computer Peripherals 8. Musical Instruments 9. Physical Therapy 10. Simple Construction
Specifications:

Flat Resistance: 10K Ohms ±30% Bend Resistance: minimum 2 times greater than the flat resistance at 180 pinch bend Power Rating : 0.5 Watts continuous; 1 Watt Peak Mechanical Specifications Life Cycle: >1 million Height: 0.43mm (0.017) Temperature: -35C to +80
Package included:

1 x 4.5 Inch Flex Sensor

, ,
