4.5 to 30v 0.56 Inch Mini Green LED Display Panel Voltage Meter

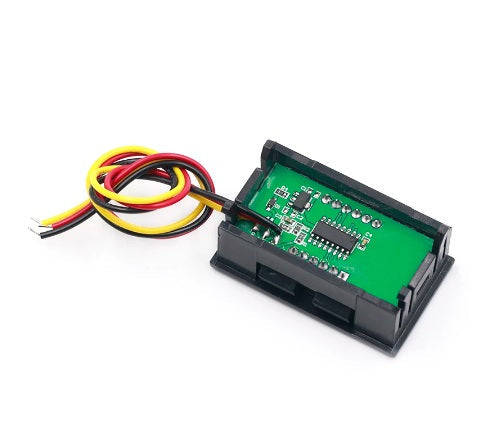

4.5 to 30v 0.56 Inch DC Mini GREEN LED Display Panel - 3 Wires (10004782)

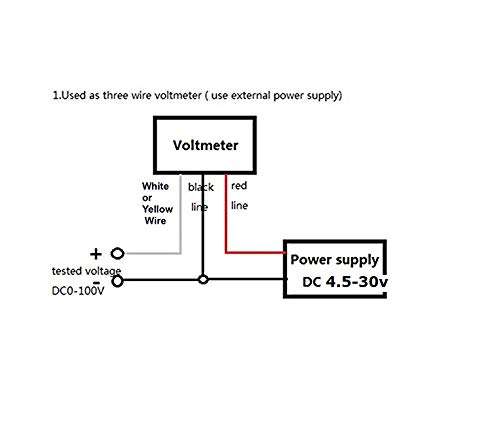

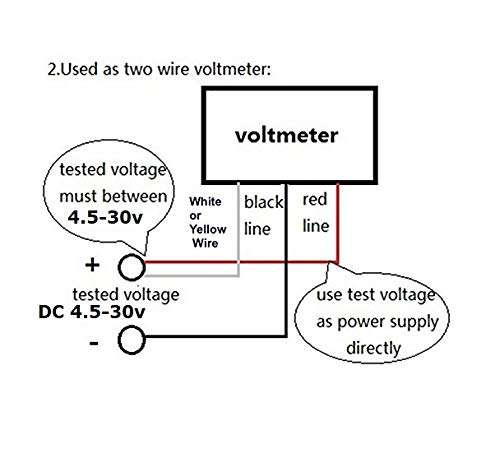

This compact voltage meter features a 0.56 inch LED display panel, capable of measuring voltages from 0 to 100v DC. It is designed with 3 wires for easy installation and monitoring of voltage levels.

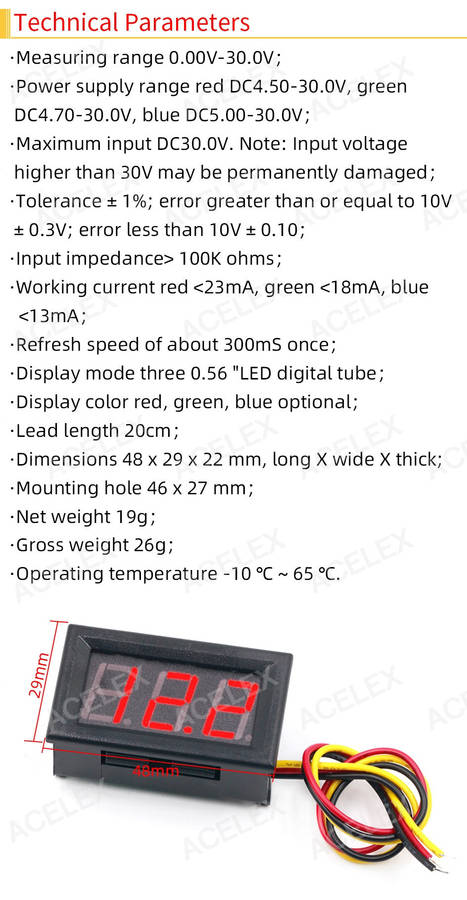

• Operating voltage: 4.5 ~ 30V (with reverse polarity protection function)
• Test voltage: 0 ~ 99.9V Operating Current: <60mA Display: 0.56 "
• Mounting holes: 45.5 26.5 mm
• Measurement rate: ? 500mS
• Measurement accuracy: 1%
• Maximum operating conditions: Minimum operating voltage: +4.5 V
• Operating temperature: -10 to +65 ° C
• Operating Humidity: 10 ~ 80% (no condensation)
• Working pressure: 80 ~ 106kPa
• Sun exposure: no direct exposure
