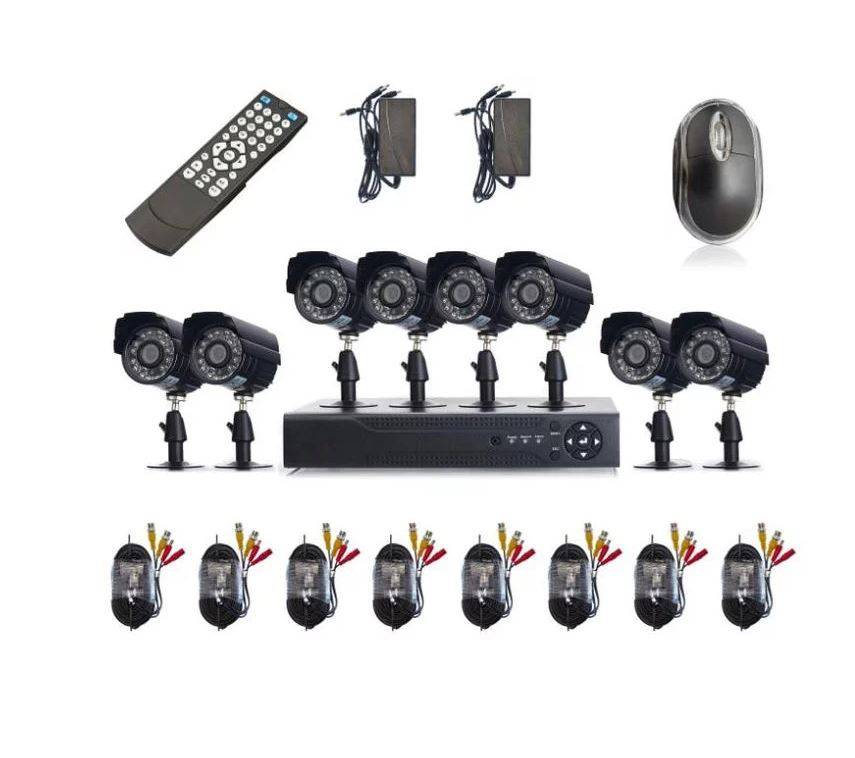

4 / 8 Channel DIY CCTV Kit With Internet & Home Viewing

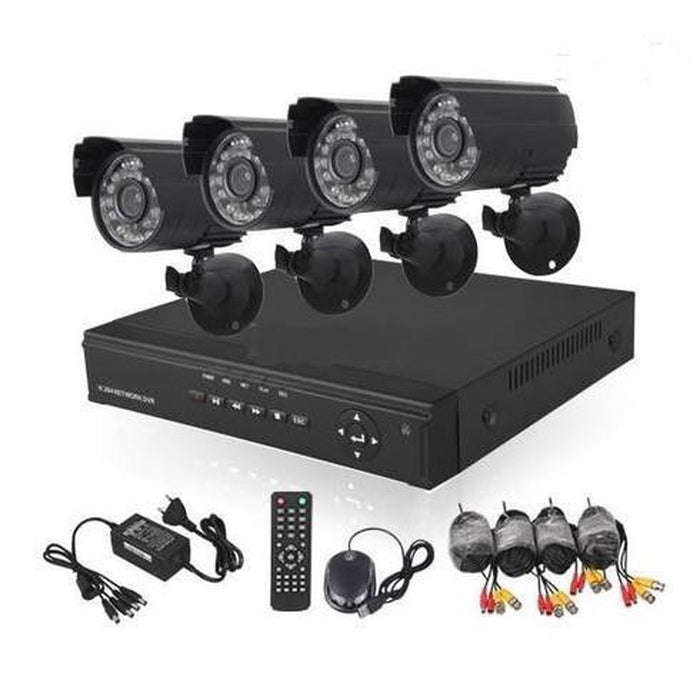

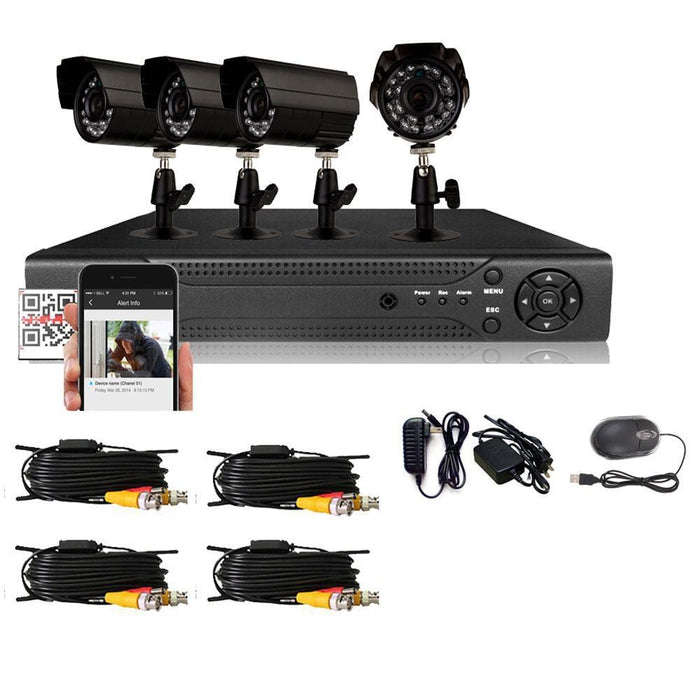

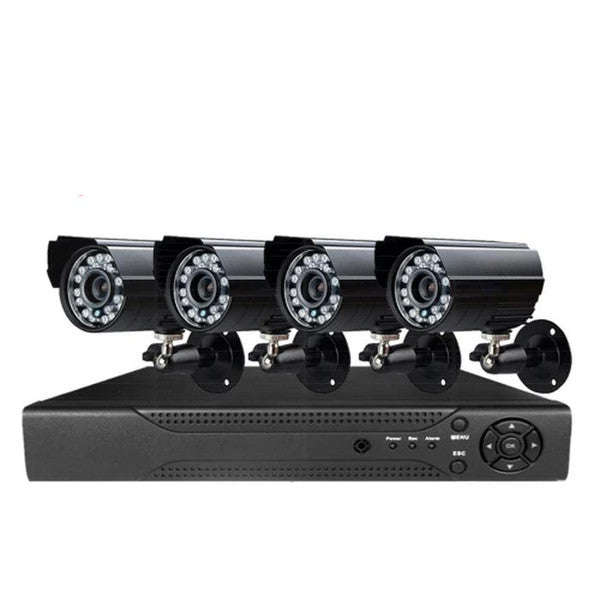

The CCTV Systems includes a 4CH H.264 Real-time Recording Network DVR and 4pcs indoor/outdoor Weatherproof IR Day & Night surveillance Cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.

The DVR is a 4 / 8 channel, fully integrated, real time, and hardware based standalone digital video recorder. Includes a remote control for easy setup and operation.

With network access, VGA video output, and USB2.0 backup, this DVR is perfect for the home or small business.

The DVR also features the most updated 3G mobile live! Preview via mobile phone.

• Adopt the latest second generation H.264 compression technology for video coding and decoding (Main profile), it makes image quality more clear and network transmission more faster
• Support motion detection and alarm recording
• IE browser remote monitoring: support computer real time monitoring through IE browser
• Support backup through USB and internet. Download backup from internet
• CMS centralized management platform: You can monitor multiple DVRs simultaneously through network by it
• VGA: Support highest resolution in 1280*1024 pixels
• Support 6 different operations Synchronously: Recording, playback, Network transmission, Backup, mobile phone monitor and platform
• Built- in remote ID and domain name, need'nt to apply
• Mobile surveillance: support 3G smartphone, Windows Mobile, Symbian, Android, iphone, Blackberry, ipad remote surveillance
• Only available in black

• Video System: NTSC / PAL
• Operation System: Linux Based
• Operation Interface Graphical User Interface (GUI)
• Video Input / Output BNC: 4 / 8 Channel Input / 1-Channel Output
• Other Video Output: VGA/HDMI
• Audio Input / Output: Input: 1ch/ Output: 1ch
• Display Resolution: NTSC: 720P / PAL: 720P
• Recording Frame Rate: NTSC: 120 fps 720P/ 960H;/
• PAL: 100 fps [at]4CH 720P/ 960H
• Record Resolution Selectable: 720P/ 960H
• Record Mode: Continuous /Time Schedule /Motion Detection
• Network Function: Support Live View with IE & Mobile Phone
• Network: RJ45, 10M/100M
• Net Protocol: TCP/IP, PPPoE, DHCP and DDNS
• Remote Access: LAN or Internet Browsing
• PTZ Control: RS-485
• HDD Interface SATA II/III, Support between
• 320GB and 4TB, (Not Included)
• USB Backup/USB 2.0
• Remote Control: IR Remote Control
• Power Supply: DC12V
• Hard Drive Not Included

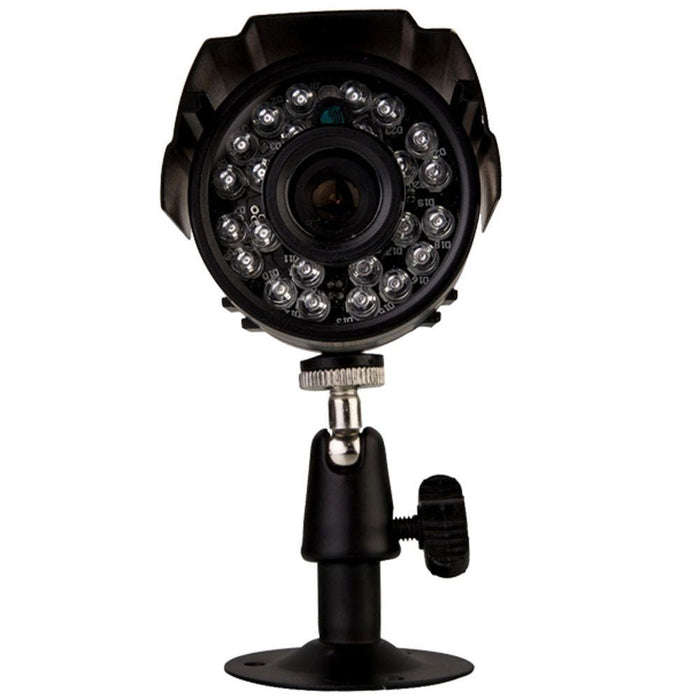

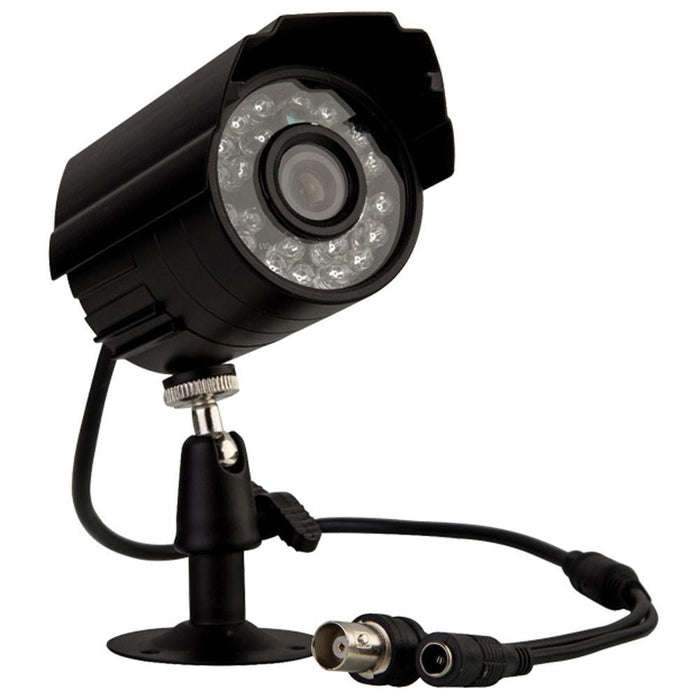

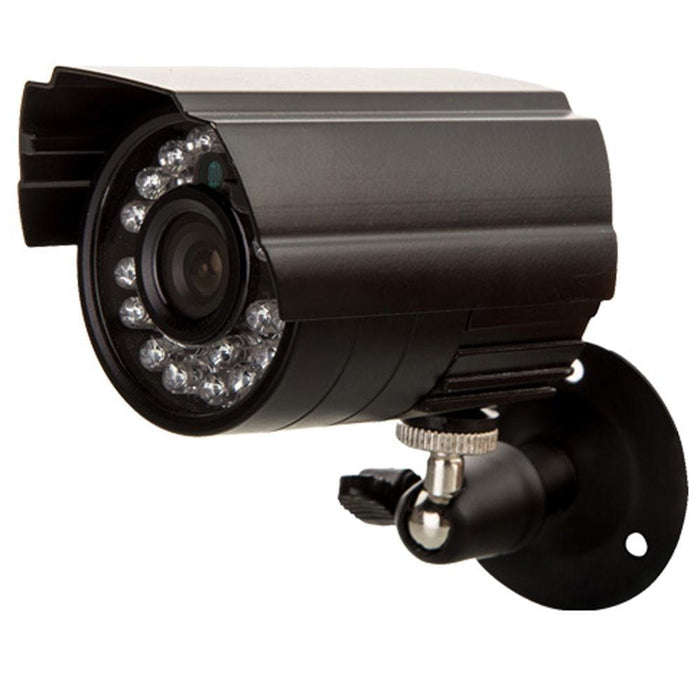

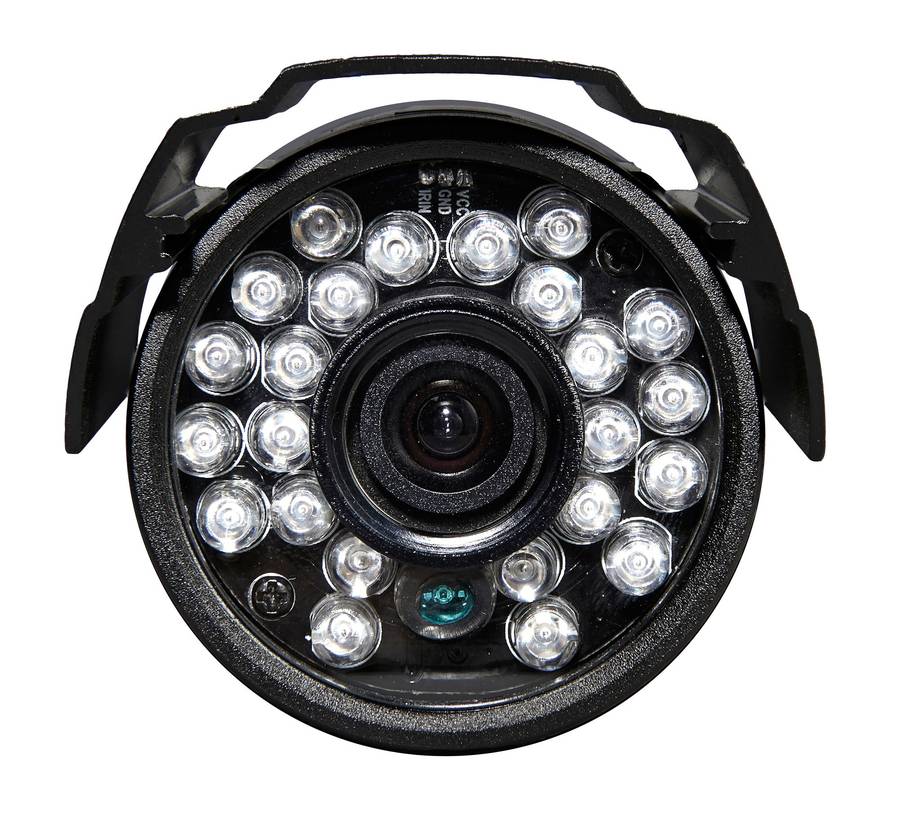

• Image Sensor: CMOS
• TV System: NTSC / PAL
• Horizontal Resolution: 720P
• Lens3.6mm
• Number of IR LEDs: 24 LEDs
• Infrared Illumination (Night Vision)up to 65ft
• Minimum Illumination: 0.0 Lux
• S/N Ratio> 48dB
• Video Output1.0Vp-p, 75 ohms
• Operating Temperature-25F~122F / -32C ~50C
• Weatherproof: Yes
• Power: 12V DC
• Material Metal Body & ABS+PC Lid

• 22" TFT LCD built-in 4/8ch DVR

• Outdoor cameras built-in waterproof microphone
• Indoor cameras built-in C/CS mount lenses & microphones
• 60ft 6pin Din cable
• Adjustable mounting brackets
• A/C power cable
• Software for remote setup
• Instruction manual
• Quick setup guide
• Remote controller
• RJ-45 cable
• PS2 / USB mouse
