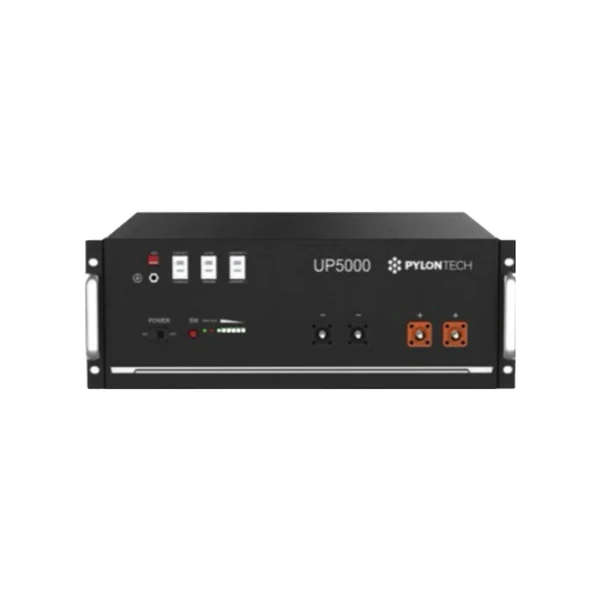

4.8kWh 48V PylonTech UP5000 LI-ION Solar Battery

PylonTech UP5000 4.8kWh 48V Li-Ion Solar Battery Scalable Energy Storage Solution

Description:

The PylonTech UP5000 4.8kWh 48V Lithium-Ion Solar Battery is a high-efficiency energy storage solution designed for solar and backup power systems. With a modular design and high usable capacity, this battery enables scalable energy expansion for residential and commercial applications.

Key Features:

• Modular & Scalable: Supports parallel connections of up to 16 units, allowing expansion up to 72.96kWh without an LV Hub.
• High Usable Capacity: Offers 4,560Wh of usable energy with a 95% Depth of Discharge (DoD) for maximum efficiency.
• Advanced Battery Management System (BMS): Built-in protection against overcharging, over-discharging, and temperature fluctuations to ensure safety and longevity.
• Seamless Integration: Compatible with RS485 and CAN communication protocols for enhanced system monitoring and control.
• Durable & Reliable: Backed by a 5-year warranty for long-term performance.

Specifications:

• Battery Type: Lithium-Ion (Li-Ion)
• Nominal Voltage: 48V DC
• Nominal Capacity: 100Ah
• Total Energy Capacity: 4.8kWh
• Usable Energy Capacity: 4,560Wh
• Max Parallel Units: 16 (Up to 72.96kWh)
• Dimensions: 442mm x 485mm x 132mm
• Weight: 45kg

Important Notes:

• Battery cables are NOT included and must be purchased separately.

Warranty & Installation Requirements:

• 5-Year Warranty included.
• Installation must be performed by a qualified electrical wireman or master electrician registered with the Department of Labour.
• A valid Certificate of Compliance (COC) must be issued upon installation, ensuring compliance with SANS 10142 regulations.
• Warranty claims must include installation photos, a valid COC, and proof of installation by a certified professional. Failure to meet these requirements may result in a rejected warranty claim.
