Specifications:
| Product name | Stove Fan |
| Material | metal |
| Color | golden+black |
| Operating Range | 140ﾣF to 698ﾣF (60ﾣC to 370ﾣC) |
| Airflow | 203 CFM |

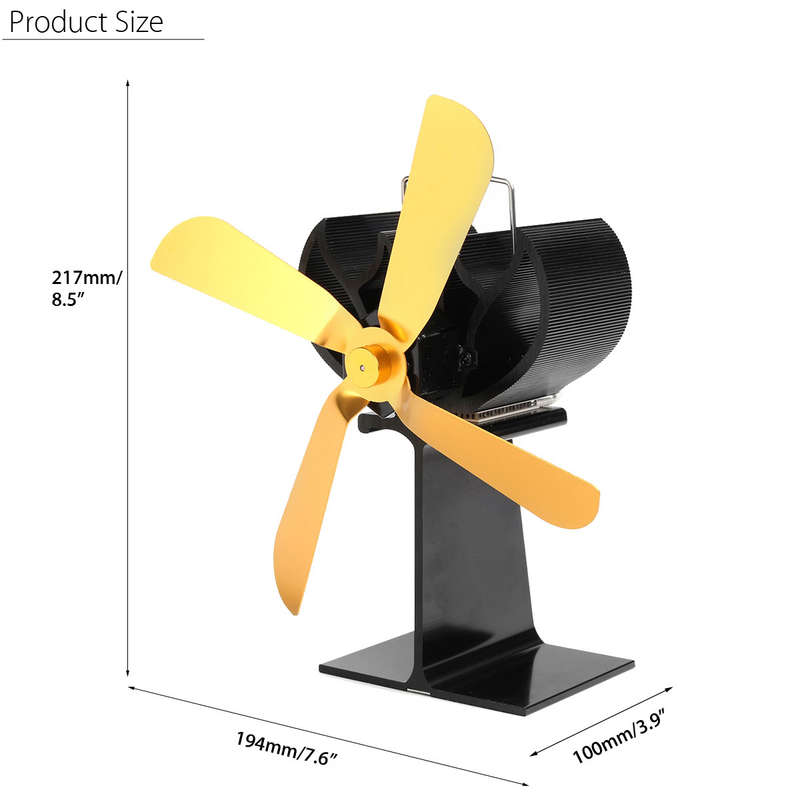

| Overall height | 217mm/8.5a |
| Overall width | 194mm/7.6a |
| The base dimensions | 92x75.8mm/3.6ax2.9a |
| Power Supply | Thermoelectric Module |
Product Features:
. Eco friendly fan
. Whisper-quiet
. No batteries or electricity required.
. Less fuel Consumption up to 17% Fuel Saving
. Enjoy the heat from your stove faster
. Maximum Airflow: 203CFM
. Extremely low start up temperature of just 40 degrees
Installation:
1. Easy operation,ready to use out of the box
2. Ensure lifting handle is upright before placing on the stove
3. Please DO NOT place the fan in front of the chimney or near the chimney,the temperature around chimney
pipe is very high,it may cause damage of your fan.The optimum position is at the side or back part of the
stove top.
4. The stove fan starts automatically and adjusts its speed with the stove temperature,the hotter,the faster it
runs to circulate the warm air through out the room
5. The optimum running temperature is 60~370a(140~698a ) ,stove thermometer is recommended been
used to monitor the temperature to avoid damage to your fan
6. Please only use this product with the free standing stoves,as it is not suitable for inset stove or other stove
that has heat insulation design on the top
Package Included:
1x Stove Fan
1x User Manual
Please Note:
1. Check Your Stove Before Order
This fan is powered by the heat of stove top,with surface temperature between 60 ﾣ C to 370 ﾣ C (140ﾣ F to 698 ﾣ F),
if your stove heat insulation is designed on the top,please do not buy,the fan will not work efficiently or even totally canat
work on your stove.

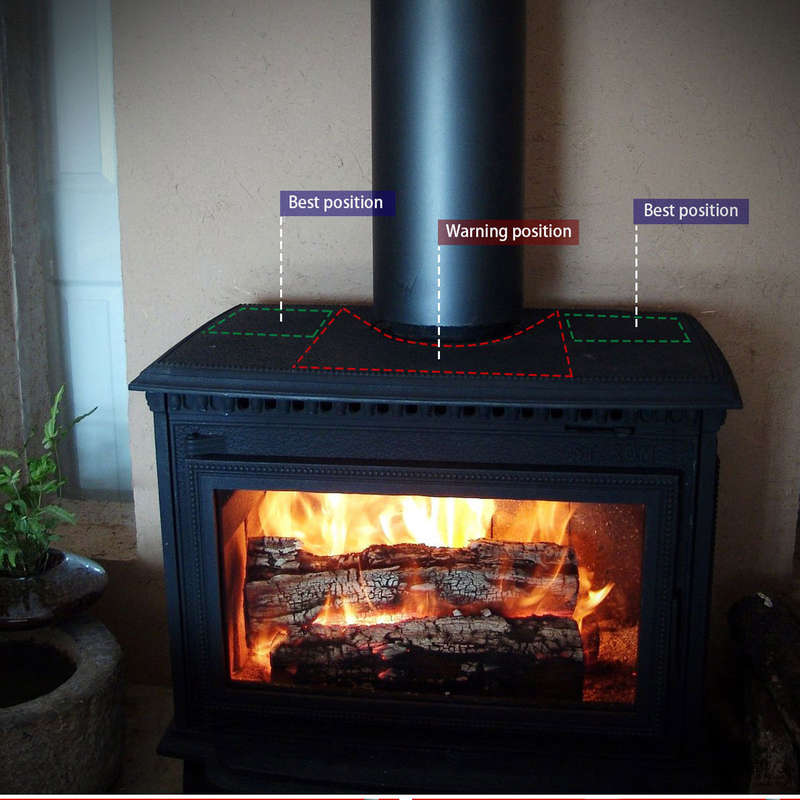

2. The Wrong&Correct Position
Please DO NOT place the fan in front of the chimney or near the chimney,the temperature around chimney pipe is very
high,it may cause damage of your fan.The best position is at the side or back of the stove top as the picture shown.
3. The Operating Temperature
Please do not exceed 370oC (698oF). Higher temperature will cause damage to the components of
the stove fan.The optimum temperature range is 80-250ﾣC(176ﾣF-482ﾣF).We suggest use a stove thermometer to
monitor the temperature to avoid damages by overheat.
4. What to do If Noise
If there is a noise when the fan is spinning,please check the fan blade after stop working, Check whether the blade
is blend, and then rotate it with your fingers to the right position.We will check every fan before sent to our customers,
so it will be in a very low rate.
5. Difference:Electric Blower Fan VS Heat Powered Stove Fan
Electric Blower Fan: When you use a electric blower fan on your stove,you may feel breeze when you stand in front of it.
Heat powered fan: You will not notice the breeze but feel the overall room temperature rises.It silently moves the air above
the surface of the stove and increase the efficiency without using electricity.
6. Maintenance
This stove fan do not require particular maintenance in normal operation,just dust it off occasionally, and put some light oil
on the blade shaft to keep it spinning smoothly and quietly.
7. Why a Stove Thermometer is Necessary
Maximized improve the efficiency of your stove,and monitor the operating temperature to avoid any damage to both of your
fan & stove caused by overheat,a stove thermometer is recommended been used.
,
,
,
,
,
,
