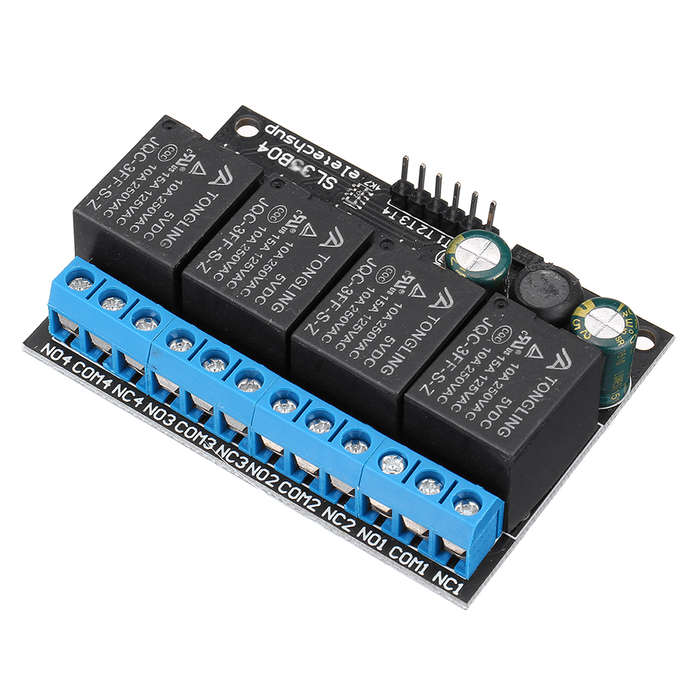

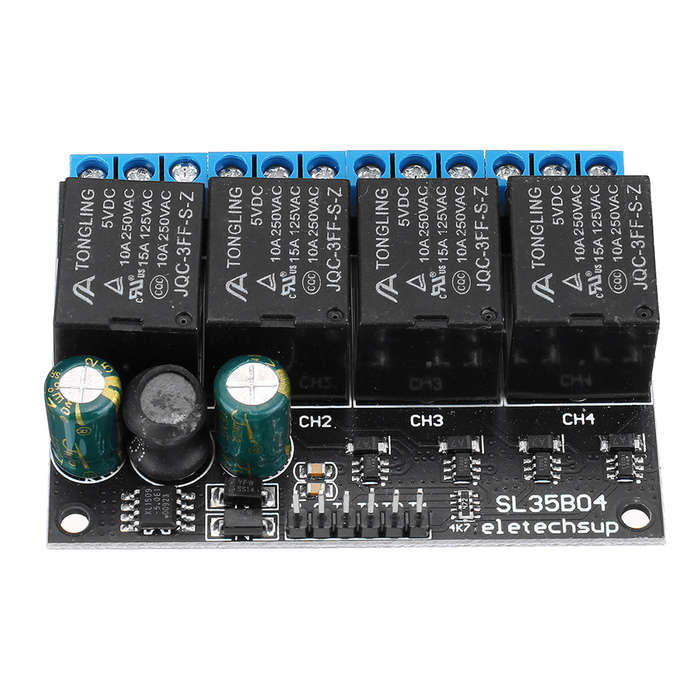

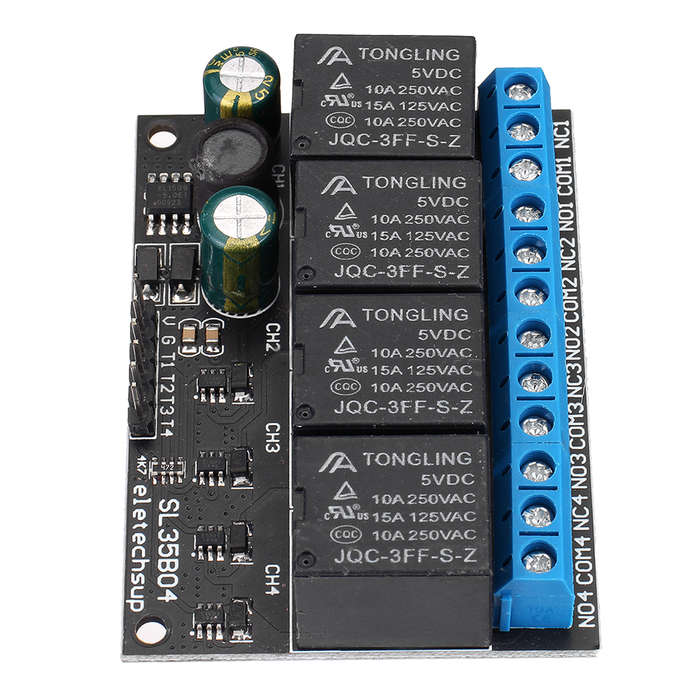

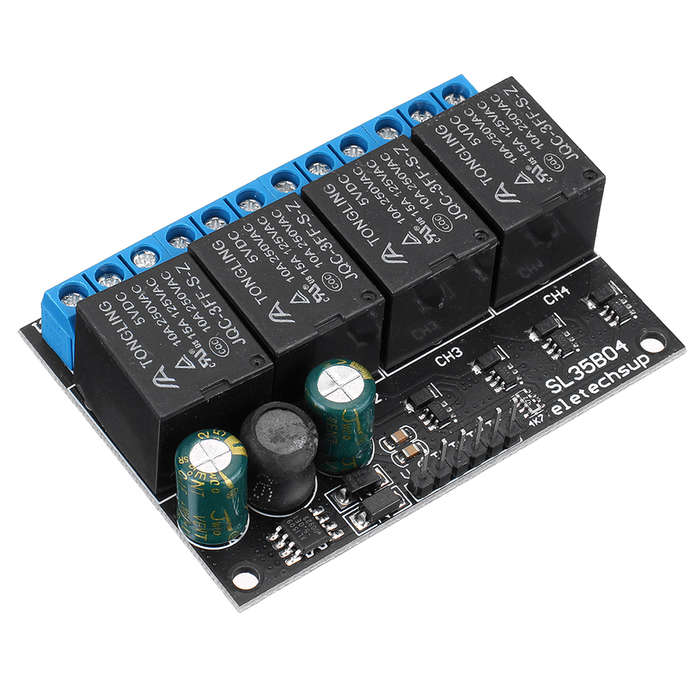

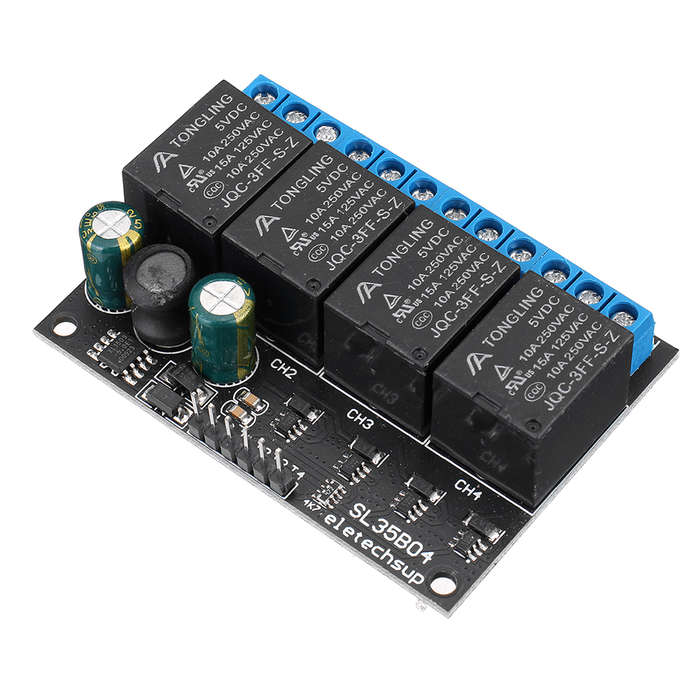

4 Channel 12V Bistable Self-locking Relay Module Button MCU Low-level Control Switch Board

New

20 available

R498.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4024

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654084531

Feature:

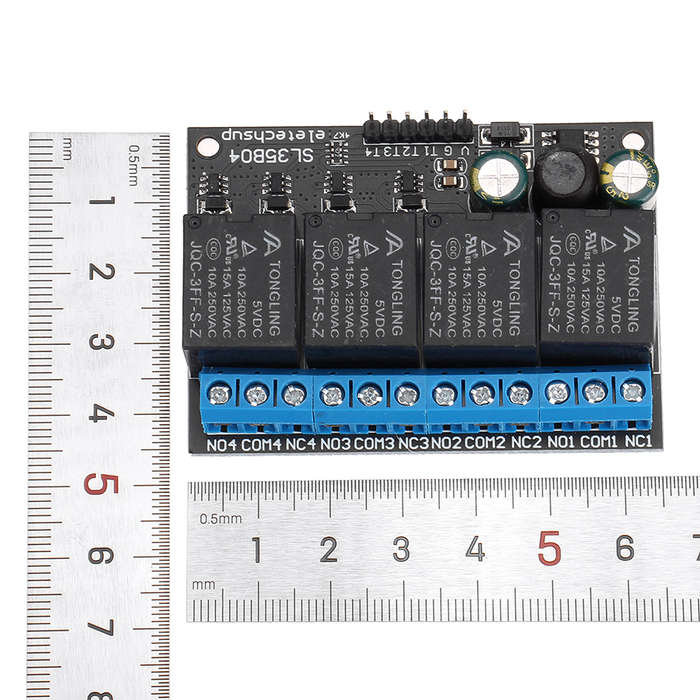

Working voltage: DC 6-24V (recommended DC 9V 12V 24V) Working current: 1 relay pulls in 37MA, 2 relays pulls in 73MA, 3 relays pulls in 110MA, 4 relays pulls in 146MA Quiescent working current: 2mA Relay load current: AC 250V/10A, DC 30V/10A Trigger mode: low level trigger Size: 65mm * 47mm * 18.5mm Weight: 56.8g
Note: This is a self-locking (bistable) relay module. When triggered once, the relay is closed (and held), and triggered again, the relay is disconnected.
Pin description:

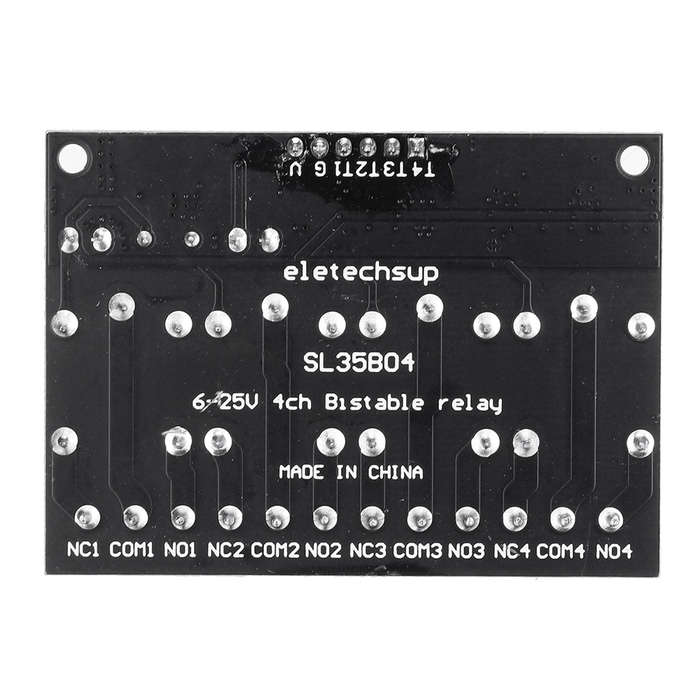

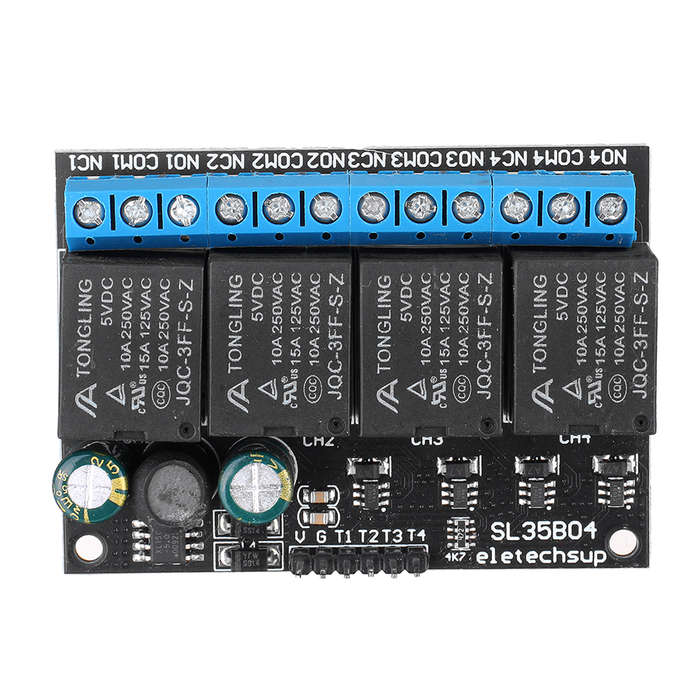

V: Positive power supply G: The negative pole of the power supply and the ground terminal of the trigger signal; T (T1/T2/T3/T4): Trigger signal input (0.2-2 second low pulse). NO: Relay normally open port COM: Relay common port NC: Relay normally closed port
Instructions:
When power is applied, the relay is disconnected. Click the trigger port (T1/T2/T3/T4 port) the relay to pull in (and hold), click the relay again to disconnect, and so on.
Package includes:
1 x Relay module
