Specifications:

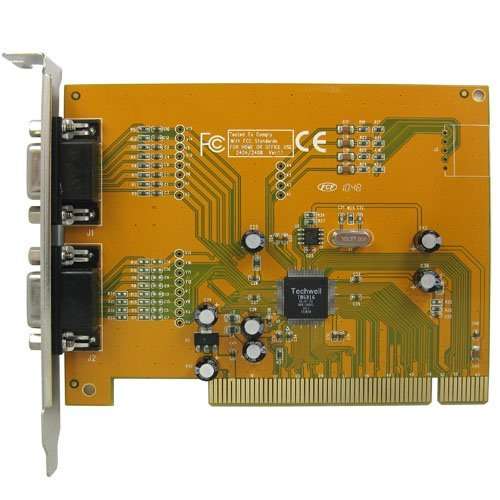

4 Channel DVR Cards
1-2ch real-time or 3-4ch non real-time monitoring, and its image speed is two or three times of the other non real-time equivalent cards.
Each channel Image color can be adjusted independently by software.
Support insert 6 cards in the same PC at most, form 24 channel monitoring, and can also support mix inserting Ether8104 & ETHER8416, to form 20 channel monitoring
Multi screen monitoring, 1,4,9,16,25, 36 split Screen available, support rotate display
Camera input: 4 channels
Audio input: 1 channel audio input through sound card with microphone
Image compression: H.264 optimized (high recording definition, especially when there is intense movement)
Install Directx 8.0 or more advanced
Support Intranet IP to remote monitoring
Support one IE remote monitors several DVR of different IP.
Support one IE remote monitoring several different DVR within the same IP.
Support the watermark of the characters and time, the particular format of video files prevent being edited, the security is high.
The video file supports electron enlarge, taking pictures and instant print and WMV format back up.
Support local and remote PTZ control
Support multi-hard disks cycle recording
Recording both flow trends yard and fix yard are available
Video total frame rate: 50 fps in PAL, 60 fps in NTSC
Display resolution: 640 X 480, 352 X 288, 320 X 240
Recording resolution: 640 X 480, 352 X 288, 320 X 240
Compression ratio: 30-100M/C/H
Network protocol: TCP/ UDP
Operating System: Windows2000 / XP /
Minimum system Require:
Memory:256M or more
HDD:80G 7200/s
CPU: PIII 800MHz or more
Operate System: Windows 98/2000 / XP / Vista (all 32bit)
Display model:1024*768
Intelligent searching for historical DVR files, up to 16 screen playback
Multi-user's authority management setup, support to set up user's operating authority
Support motion detection touch off the video recording, sending E-mail (monitoring pictures in the enclosure), sending alarm by phone, and by sound.
Setting up motion detection area discretionarily, the sensitivity is adjustable
Through IE realize such perfect network management functions as remote spot monitoring, remote historical playback, remote spot video recording, remote historical video recording, etc
Approved: CE / FCC
Accessories:
1 x 2 Real time DVR Card
4 x BNC Converter
1 x Software CD Driver
