4 Channel DC 12V Relay Module Solid State High and low Level Trigger 240V2A Gee... (MODE: LOWLEVEL)

New

20 available

R441.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4090

92.36 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654084537

SELECTED OPTION:
MODE: LOWLEVEL

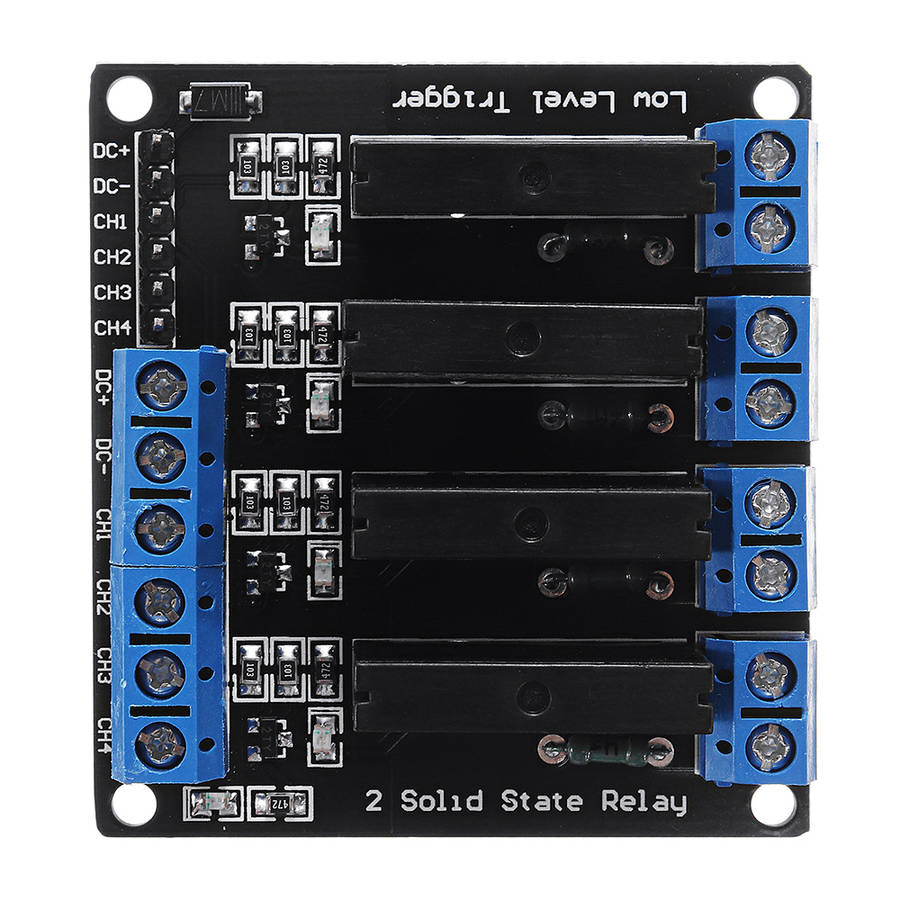

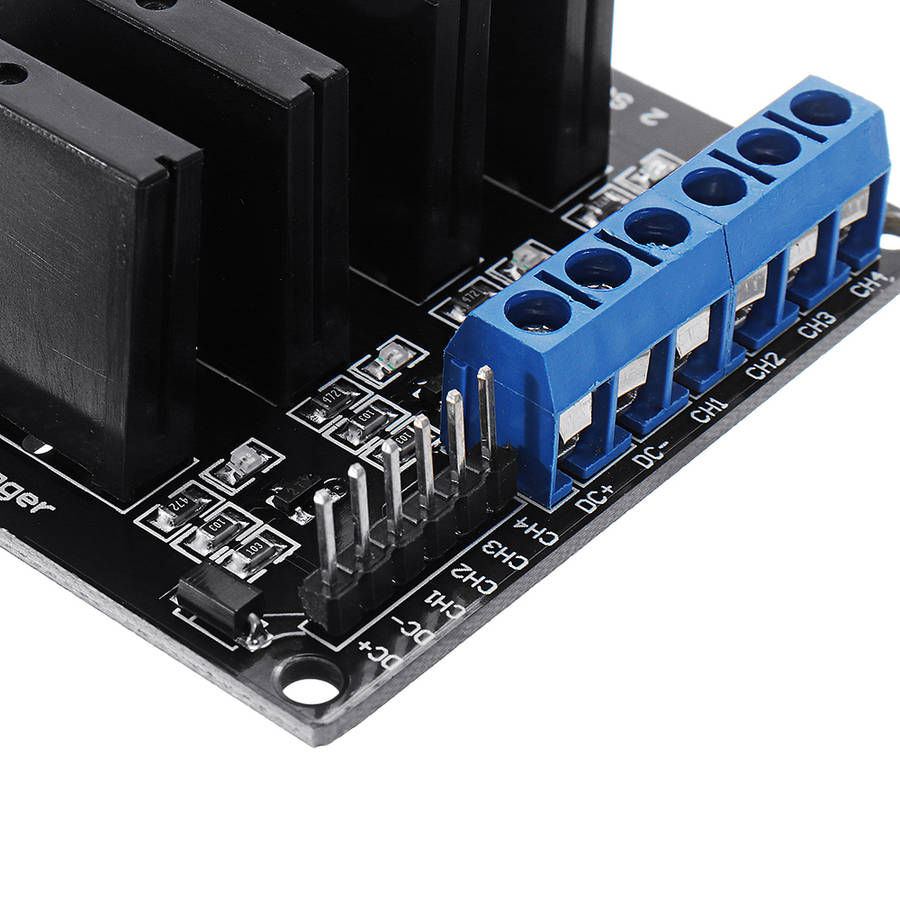

Specification: Input Power Supply: 12V DC Load Voltage: AC240V 2A Maximum operating current: 48.8mA Trigger mode: high level / low level Input control signal voltage: (0-2.5V low state relay OFF) (3.3-5V state high relay ON) Blue KF301 terminal connection control line is more convenient. Module interface: DC +: positive power supply (by relay voltage power supply) DC-: connect power negative CH: Relay Module signal triggering end (Low level trigger effective) Note: Power must be DC voltage and need to be consistent with the voltage relay Package Included: 1x High Level / Low Level Relay
