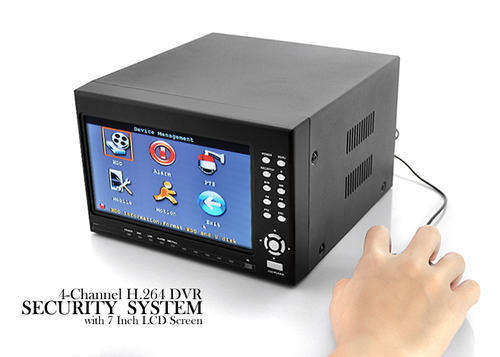

4 Channel DVR System - H264 DVR, 7 Inch Screen, x2 SATA HDD

A great 4 Channel Standalone Security DVR with a built in 7 Inch screen; with tons of great features and functions, ideal for your security issues.

High Quality Compression - 7 Inch LCD Screen
This awesome DVR set comes with high quality H.264 video compression. H.264 compression records at a lower bit rate for high quality playback, longer recording with less storage required. This quality made DVR comes with a built in 16 bit true color 7 Inch Screen, so there’s no need to buy 2 devices when you can get both functions in this awesome combination security device. You can even install a HDD into the casing and connect it up to record video to, and the security system will indicate the HDD's capacity for recording.

Multi Functional DVR
Ideal for small business, office, factory or even your executive home, this DVR lets you have up to 4 security cameras (PAL or NTSC) setup around your premises, and comfortably take control of them from your office. It has a Multi-task processor for simultaneous recording, network surveillance, and even mobile phone live view via 3G/WiFi.

Professional Standalone Device
This device comes with a professional file system. Avoid pesky disk fragments among subsection recording, protect super secret private data with extremely wild security; and it supports up to 2TB SATA HDDs (not included). Whilst this device is very compact and packed full of features it also consumes very little power and can help you with high speed backup and is multi-OS compatible. With support for DHCP and PPPOE, it is possible to connect the DVR Security System to your LAN or even the Internet.




At a Glance...

• 4-Channel Simultaneous Recording/Viewing
• User-friendly interface: 16 bit true color, semi-transparent graphical user interface with instruction hints
• Easy to control with USB mouse
• Suitable for supermarkets, chain stores, community security or mansions
• Super compact design, low power consumption
• Hi-speed backup/upgrade/record via USB2.0 - Install HDD into Casing for Recording
• Virus free Linux O/S, auto system upgrading

Manufacturer Specifications

• 4 Channel Security DVR with 7 inch LCD Screen
• Color: Black

• Input Connectors/Ports:
  - Video in: 1,2,3,4
  - Audio in: 1,2,3,4
  - Mouse full USB
  - Extra full USB
  - Dc12V in
  - GND
  - Alarm in: 1,2,3,4
  - IR receiver (front of device)

• Output Connectors/ports
  - Video out: 1
  - Audio out: 1
  - VGA out
  - Cat5 out
  - Dc12V out: 1,2,3,4
  - Fan: 1.44inch
  - Nc1, no1, GND, 485+, 485-, 12V

• Switch:
  - On/off (back of the product)

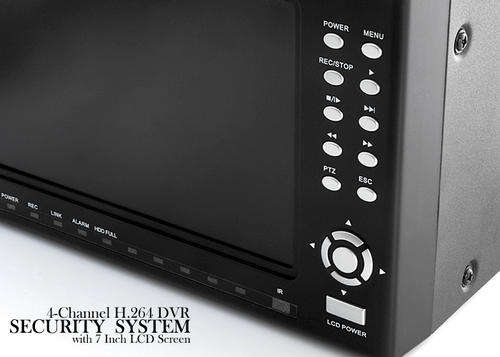

• Buttons:
  - Power, Menu, Rec/stop, Play, Stop, Pause, Next, Rwd, Ffd, Ptz, Up, Down, Left, Right, Confirm, LCD power

• LED lights: Power, Record, link, alarm, HDD full
• Languages: English, Russian, Portuguese, Spanish, Turkish, Italian, Persian, French, Polish, Chinese
• Software version: T110324
• Video modes: PAL/NTSC
• VGA resolutions: 1024x768, 800x600, 1280x1024, 1440x900
• Built-in screen size: 7 inch

• Dimensions (cm): 21x20x13

Product Notes

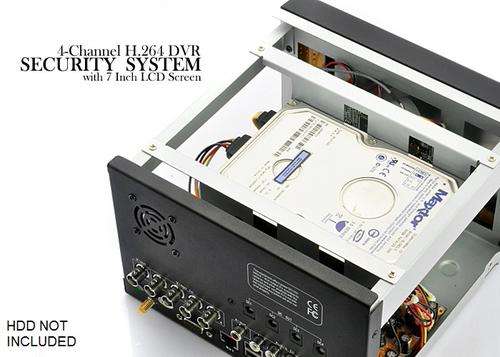

• You can unscrew the casing and fix a HDD to the security system, and then connect it up with the internal wires and record straight to HDD with the system.

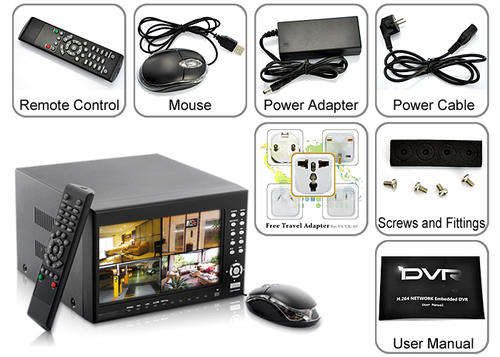

Package Contents

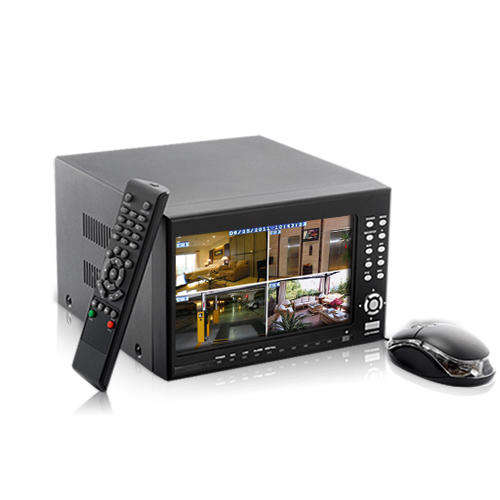

• 1X 4CH Standalone DVR
• 1X Remote control
• 1x USB Mouse
• 1x EU power adapter
• 1x User manual
• 1x CD
• 4x Screws
