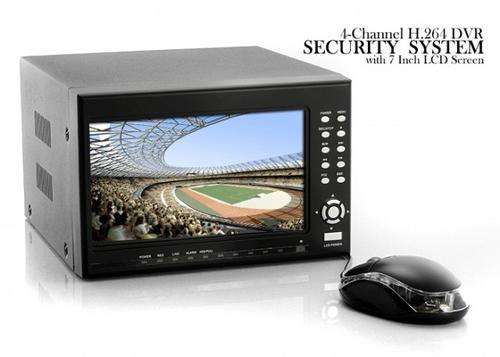

4-Channel H.264 DVR Security System with 7 Inch LCD Screen (2x SATA HDD Interfaces) - E184
High Quality Compression - 7 Inch LCD Screen
This awesome DVR set comes with high quality H.264 video compression. H.264 compression records at a lower bit rate for high quality playback, longer recording with less storage required. This quality made DVR comes with a built in 16 bit true color 7 Inch Screen, so there’s no need to buy 2 devices when you can get both functions in this awesome combination security device. You can even install a HDD into the casing and connect it up to record video to, and the security system will indicate the HDD's capacity for recording.

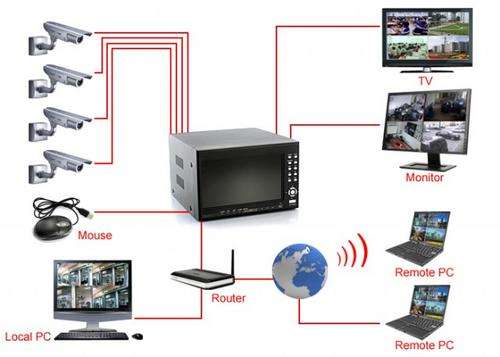

Ideal for small business, office, factory or even your executive home, this DVR lets you have up to 4 security cameras (PAL or NTSC) setup around your premises, and comfortably take control of them from your office. It has a Multi-task processor for simultaneous recording, network surveillance, and even mobile phone live view via 3G/WiFi.
This device comes with a professional file system. Avoid pesky disk fragments among subsection recording, protect super secret private data with extremely wild security; and it supports up to 2TB SATA HDDs (not included). Whilst this device is very compact and packed full of features it also consumes very little power and can help you with high speed backup and is multi-OS compatible. With support for DHCP and PPPOE, it is possible to connect the DVR Security System to your LAN or even the Internet.
At a Glance...
4-Channel Simultaneous Recording/Viewing

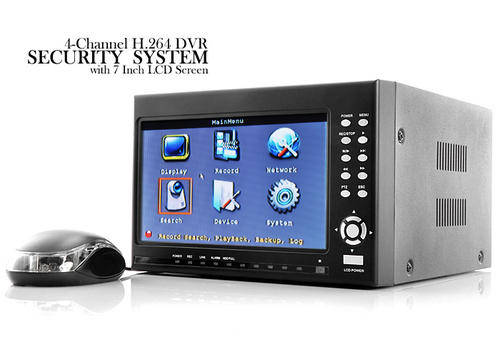

User-friendly interface: 16 bit true color, semi-transparent graphical user interface with instruction hints
Easy to control with USB mouse
Suitable for supermarkets, chain stores, community security or mansions
Super compact design, low power consumption
Hi-speed backup/upgrade/record via USB2.0 - Install HDD into Casing for Recording
Virus free Linux O/S, auto system upgrading
Manufacturer Specifications
4 Channel Security DVR with 7 inch LCD Screen
Color: Black

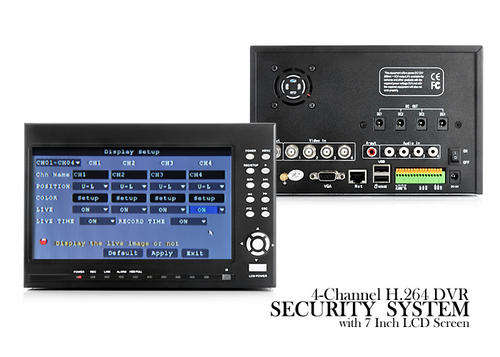

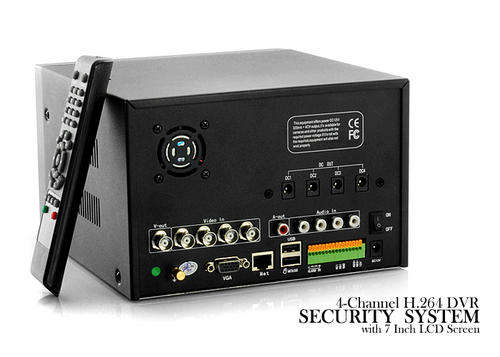

Input Connectors/Ports:
- Video in: 1,2,3,4
- Audio in: 1,2,3,4
- Mouse full USB
- Extra full USB
- Dc12V in
- GND
- Alarm in: 1,2,3,4
- IR receiver (front of device)
Output Connectors/ports
- Video out: 1
- Audio out: 1
- VGA out
- Cat5 out
- Dc12V out: 1,2,3,4
- Fan: 1.44inch
- Nc1, no1, GND, 485+, 485-, 12V
Switch:
- On/off (back of the product)
Buttons:
- Power, Menu, Rec/stop, Play, Stop, Pause, Next, Rwd, Ffd, Ptz, Up, Down, Left, Right, Confirm, LCD power
LED lights: Power, Record, link, alarm, HDD full
Languages: English, Russian, Portuguese, Spanish, Turkish, Italian, Persian, French, Polish, Chinese
Software version: T110324
Video modes: PAL/NTSC
VGA resolutions: 1024x768, 800x600, 1280x1024, 1440x900
Built-in screen size: 7 inch
Dimensions (cm): 21x20x13
Product Notes

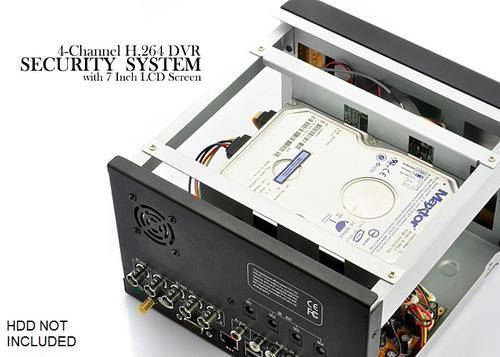

You can unscrew the casing and fix a HDD to the security system, and then connect it up with the internal wires and record straight to HDD with the system.

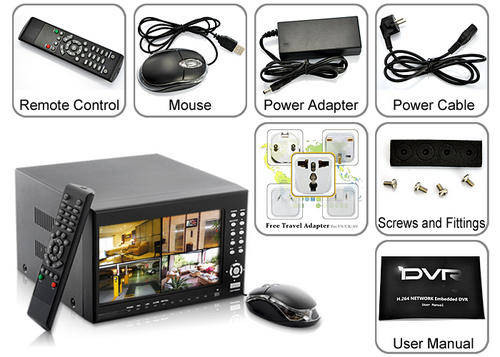

Package Contents
1X 4CH Standalone DVR
1X Remote control
1x USB Mouse
1x EU power adapter
1x User manual
1x CD
4x Screws
