4-Channel Opto-Isolated Relay Module 10A
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
**** LOCAL STOCK ****

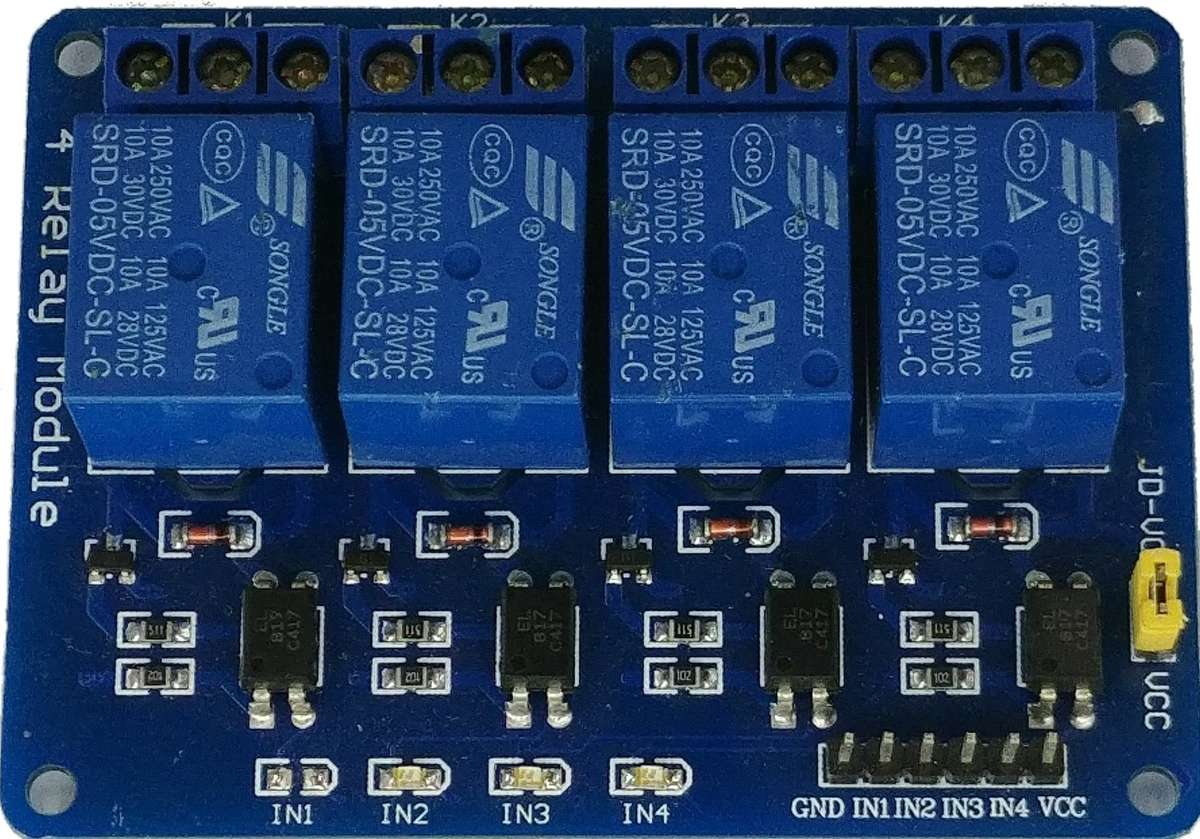

4-Channel Opto-Isolated Relay Module 10A
- This is a 5V 4-Channel Relay module, and each input is opto-isolated. It can be controlled directly by a wide range of microcontrollers such as Arduino.
- The module uses the Songle relay for control, AC voltage max at 250V, AC current max at 10A, DC voltage 30V DC current maximum 10A;
- Optical coupler support relay trigger by TTL low.
- Transistor relay driver
- Operating voltage 5V from MCU IO directly
- With fixed bolt hole for easy installation
- On Board power relay status indicator.
- Please Note that the VCC to JD-VCC jumper must be connected.
Connection:
- VCC connect to 5V
- GND connect to GND
- 1N1-1N4 relay control interface connected MCUs IO port
