4 Channel Remote Control Transmitter and Receiver Board
Sold

4 Channel Remote Control Transmitter and Receiver Board

New 5 were available
R79.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
WIRELESS-REM-KIT
Bob Shop ID
171786205

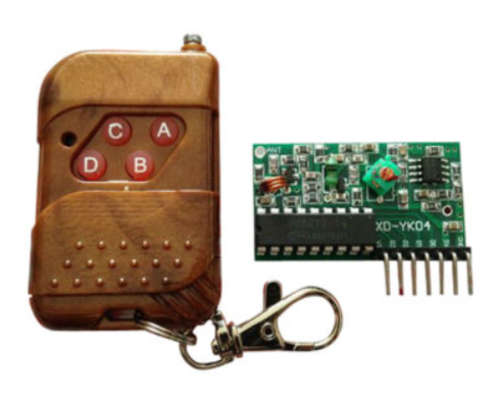

4 CHANNEL REMOTE CONTROL TRANSMITTER AND RECEIVER BOARD

Product information
This transmitter and receiver kit enables four independent devices to be remotely controlled. Four buttons on the remote control correspond respectively to the four data pins on the receiver. The data output pins can be connected directly to a relay module or to a microcontroller board.

Transmitter Specification
Operating voltage: DC 12V (27A/12V battery x1)
Operating current: 10mA @ 12V
Transmitter power: 10mW @ 12V
Modulation: ASK (Amplitude Shift Keying)
Transmitter frequency: 315MHz (SAW frequency stabilization)
Transmission distance: 50 - 100m (open air)
Encoder type: fixed code
Size: 62mm x 38mm x 14mm

Receiver Specification
Operating voltage: DC 5V
Quiescent Current: 4.5mA
Modulation: AM (OOK)
Working temperature: -10 deg. C ~ +70 deg. C
Receiver sensitivity: -105dBm
Operating Frequency: 315MHz
Encoding: Encoding pad (fixed code)
Output: D0, D1, D2 and D3 pins
Size: 41mm x 23mm x 7mm

Package Includes
1 x 4 Channel Remote Control Transmitter
1 X 4 Channel Receiver Board
