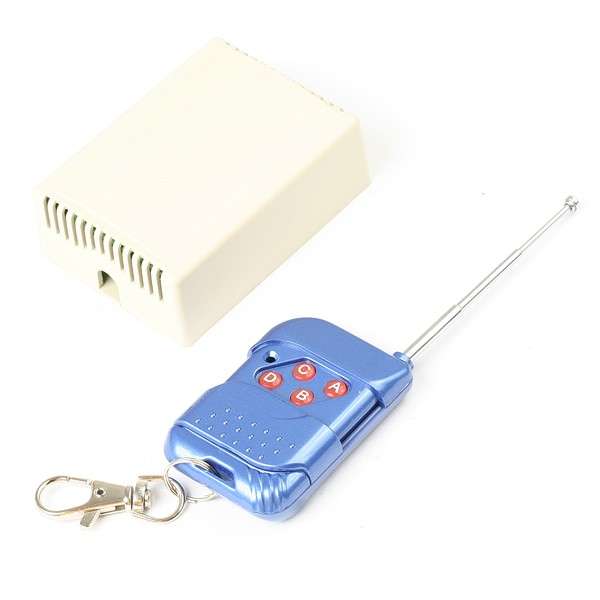

4 Channel RF Wireless Remote Control Switch Receiver and Transmitter

Main Function:

• Control Lights, TV, Motors, Fans, Cameras, Video Signals, Audio Signals, Electric Doors/Locks/Windows/Curtains/Cars or Other Appliances with voltage AC 110~240V or DC 0~28V.
• You can turn on/off the receiver with transmitter (remote control) from any place, the wireless signal can pass through walls, floors, and doors.
• Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bits code.
• One/several transmitters can control one/several receivers.
• Transmitting Frequency: 315MHz/433MHz.

 Technical Specification:

Receiver:

• Channel: 4 CH
• Control Types: Toggle, Momentary, Latched, Toggle+ Momentary
• Decode: Learning code
• Power Supply (Operating Voltage): DC12V
• Relay: 10A/120VAC, 5A/220VAC, 20A/14VDC
• Work Voltage Range of Relay: AC 110~240V or DC 0~28V
• Receiver Board Size: 68mm x 48mm x 20mm
• State current: 6mA

Transmitter (remote control):

• Channel (keys): 4CH
• Remote control distance: Up to 100m
• Encode: Fixed code, Soldering
• Power Supply: 1 x 23A-12V battery (included)

Control Types:

• Toggle: Press->On; Press again->Off
• Latched: Press->On; Press other button->Off
• Momentary: Press and hold->On; Release->Off
• Toggle+ Momentary:  CH 1 and CH 2 for Momentary, CH3 and CH4 for Toggle

Internal ichnography:

 Includes:

• 1 x 4CH Receiver (4 Channels / Four Control Types /DC12V)
• 1 x Transmitter (remote control)
