4 Channel USB 2.0 DVR

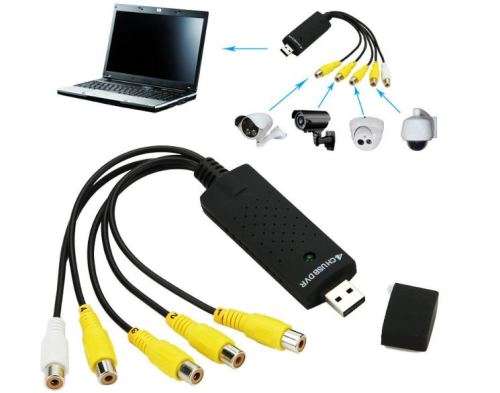

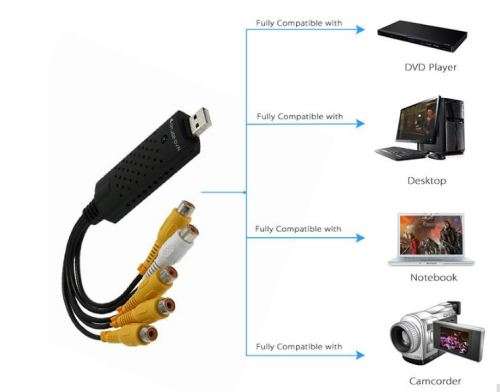

The 4 Channel USB 2.0 DVR supports directly capture high-quality video & audio from almost any video device such as, VCR, Camcorder, DVD player or any device supports video output through an S-Video & Composite RCA connection by USB 2.0 interface without sound card. And, The multifunctional is supports Video signal filtering, for filtrating Active and Invalid channel, Also supports Automatic Space Management, automatically stopping recorder or capture still when its disk is full. Etc. It will bring you much convenience.

Easy CAP Features:

Supports Sending e-mails attachment with image. Also supports Saving image on Hard Disk.

Supports Video signal filter, for filtrating Active and Invalid channel.

Supports Sound alarm & Signal lost alarm.

Supports Motion Detection, Automatically lock, while not any operate.

Supports Schedule Monitoring sessions, for timer snap.

Supports Record video / audio (with USB 2.0 audio interface), snap shot.

Supports Automatic Space Management, Stopping recorder or capture still automatically when its disk is full.

Supports on Screen Display. Displays date and time, or channel description on video.

Supports login and logout, by User Name and Password

Supports video play back

Easy CAP Specifications:

Complies with Universal Serial Bus Specification Rev. 2.0.

Supports NTSC, PAL, Video format

Video input: One RCA composite, One S-Video.

Audio input : Stereo audio (RCA)mm

Dimension (L)88mm x (W)28mm x (H)18mm

USB bus power

Supports high quality video resolution

NTSC: 720 x 480 @ 30fps

PAL: 720 x 576 @ 25fps

Color: Black

Main item size: 9.0 * 2.5 * 1.5cm / 3.54 * 0.98 * 0.59in

Main item weight: 49g / 1.70z

Package size: 13.5 * 11.0 * 3.0cm / 5.3 * 4.3 * 1.18in

Package weight: 75g / 2.6oz

Easy CAP System Requirements:

Windows 2000/XP or better (Note:Easy CAP not supports Windows 10 OS).

Pentium 4 of CPU or better

512MB of RAM better

Microsoft DirectX 9.0C

USB 2.0 free port

Audio Card / True Color VGA Card

Microsoft DirectX 9.0C

Package List:

1 * 4 Channel USB 2.0 DVR

1 * USB female to male Cable

1 * Software and Driver CD
