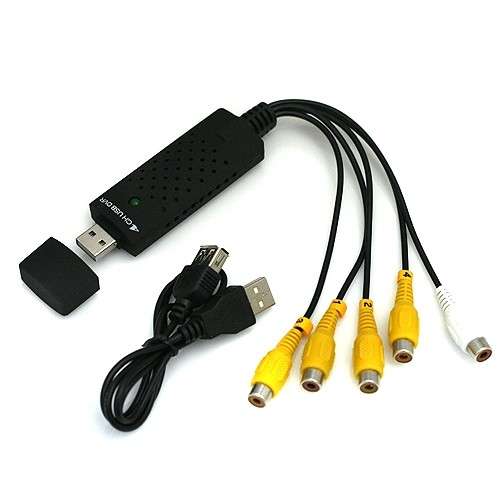

4 CHANNEL USB DVR SURVEILLANCE VIDEO AUDIO CAPTURE ADAPTER WITH SOFTWARE

4 CHANNEL USB DVR SURVEILLANCE VIDEO AUDIO CAPTURE ADAPTER WITH SOFTWARE

Specifications:

• Green LED for Power indicator
• Dimension: 88mm x 28mm x 18mm
• Full-Screen Video Resolution Input:
  With USB 2.0 connection: the output resolution will be full-screen DVD video resolution up to 720x480 at 30 fps for NTSC and 720 x 576 at 25 fps for PAL;
  With USB 1.1 connection: the video resolution reaches up to 320x240 at 30 fps for NTSC and 320x288 at 25 fps video for PAL.
• Video input: 4S-video input and RCA type composite video input
• Video system supported: NTSC, PAL and SECAM
• Supports all video capturing/ recording formats including DV, MPEG-1, MPEG-2, MPEG-4 with DivX codec, SVCD/VCD, DVD, AVI, WMV
• High MPEG bit rate adjustment up to 10000K bps
• Supports color adjustment including brightness, contrast, saturation, hue and sharpness control
• USB powered operation. No power adapter needed
• Power Consumption: 5VDC, 250mA(max) through USB port
• Extension USB Cable & CD ROM is included


Features:

• 4 channels video input in one card, the maximum display/recording rate is 25fps under PAL format, and 30 fps under NTSC format
• 4 screen display modes are available
• Multi alarm triggering method: sensor, motion, video loss, and HDD space shortage
• Support schedule recording mode, recycling recording method available
• MPEG4 video compression format. 5 level recording quality options available. and the recording frame rate range from 1 to 30 fps adjustable for each channel
• Support 1 channel playback, searching by time/date and recording events, images can be Zoom/capture/save/print/backup
• Configurable auto reboot function for preventing PC deadlock

System Requirement:

• Windows 2000/XP, Intel P4 CPU, 1700MHZ
• HDD: 80G, RAM: 256M memory
• Microsoft DirectX 9.0C
• Free USB 2.0 port and Audio Card


EasyCAP002 4 CHANNEL USB 2.0 DVR is the safety system of ideal design for
home/office/shop guard or baby care purpose;
Users can do their own security by easy installation.
It is the cost-effective solution to replace commercial VCR tape recorder,
which also supports stable digitize video record and easy manages the recorded
data via index of date and time.
Thats it, makes your life more safety and easier.

Package Included:

• EasyCAP002 4 Channel USB 2.0 DVR Capture in original package x1 (100% Brand New)
• 1 x USB Cable

• Software CD (Driver& Application) x1
