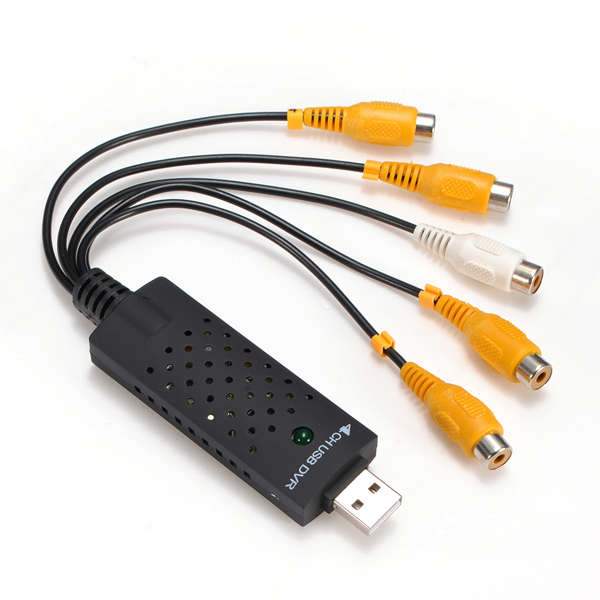

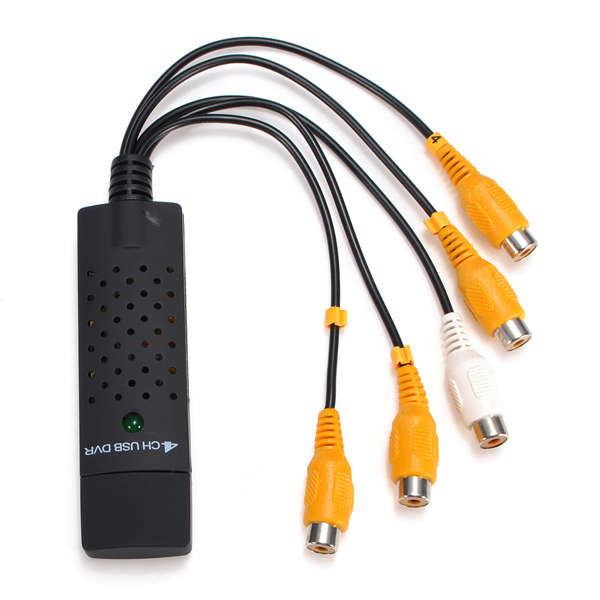

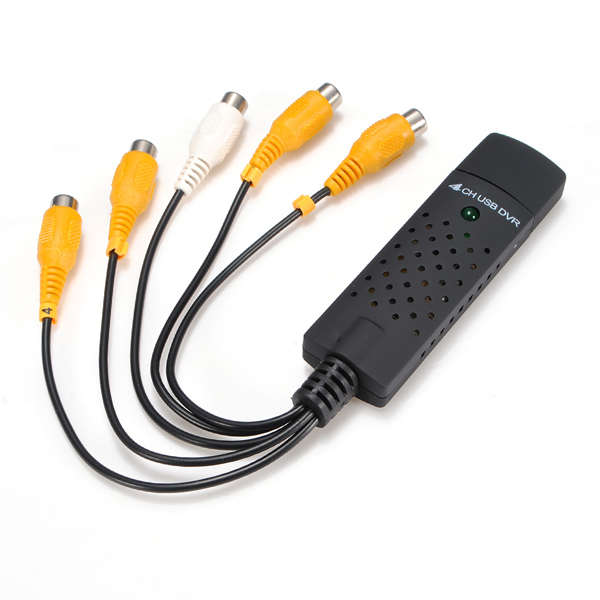

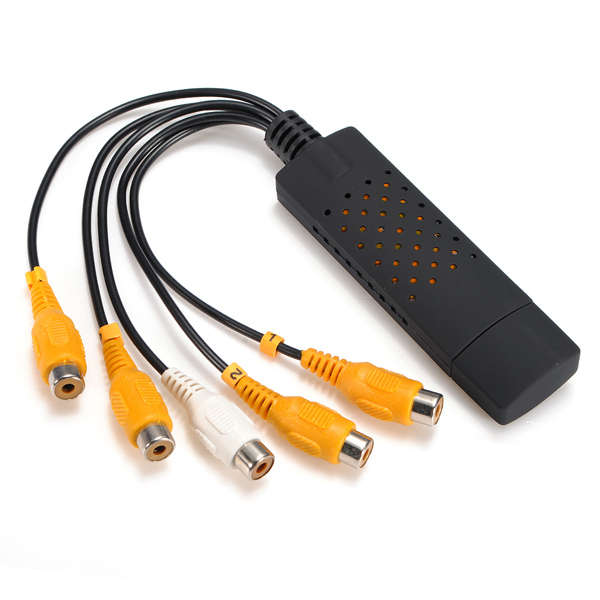

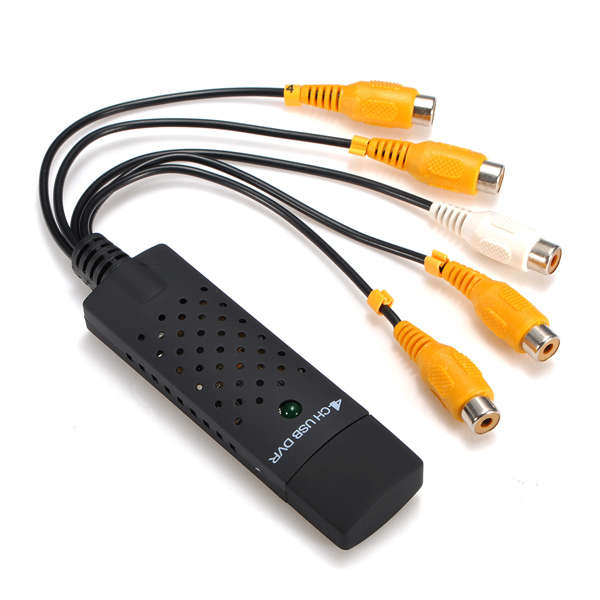

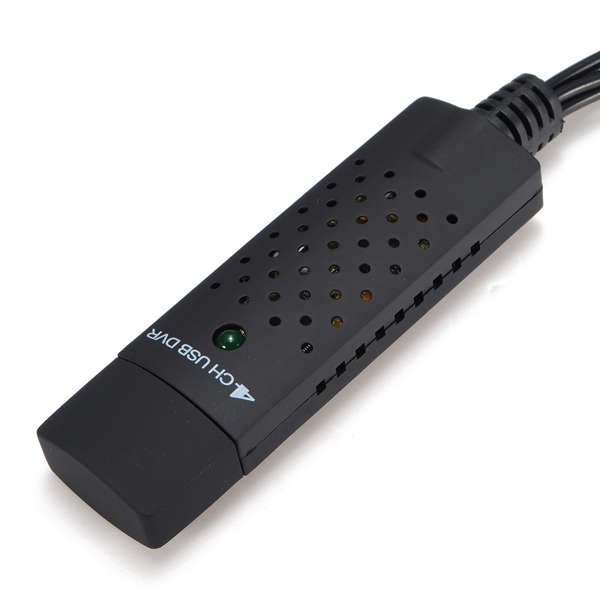

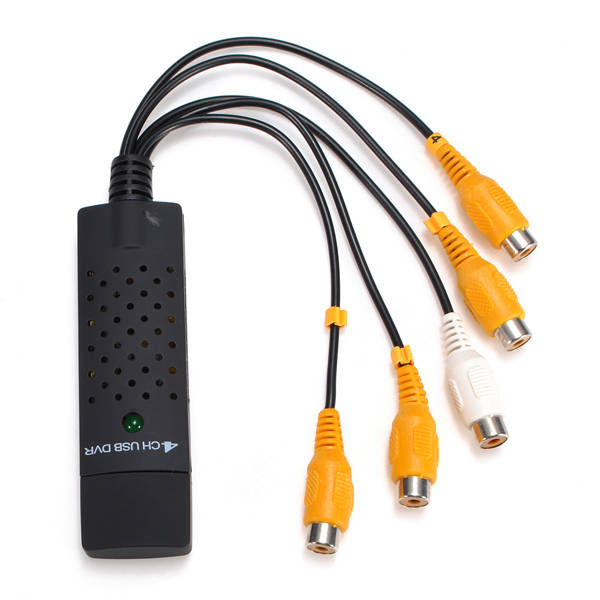

4 CHANNEL USB DVR Video Audio Capture Adapter Easycap
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
You can download the driver in the following link, and the title is "V84", just click the "Download" New 56Kbs USB 2.0 V.92/90 Dial Up Voice Fax DATA Modem. Here is the link:
http://www.iigoal.com/download/download.html
Specifications:

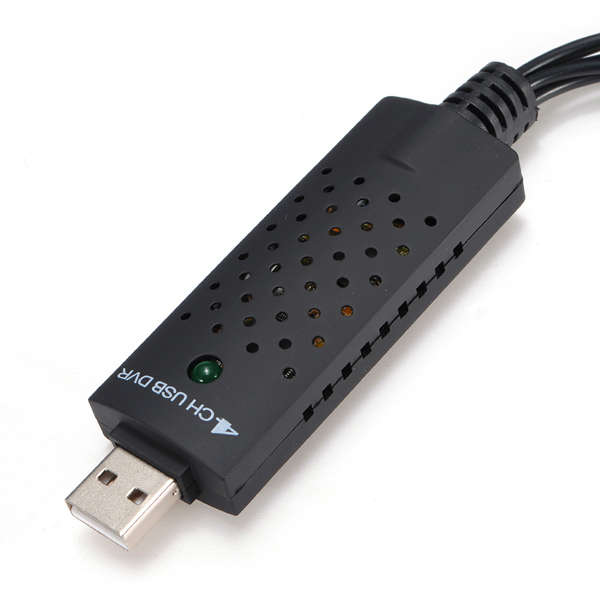

Green LED for Power indicator
Dimension:88mm x 28mm x 18mm
Full-Screen Video Resolution Input:
With USB 2.0 connection:
the output resolution will be full-screen DVD video resolution
up to 720x480 at 30 fps for NTSC and 720 x 576 at 25 fps for PAL
With USB 1.1 connection:
the video resolution reaches up to 320x240 at 30 fps for NTSC and 320x288 at 25 fps video for PAL

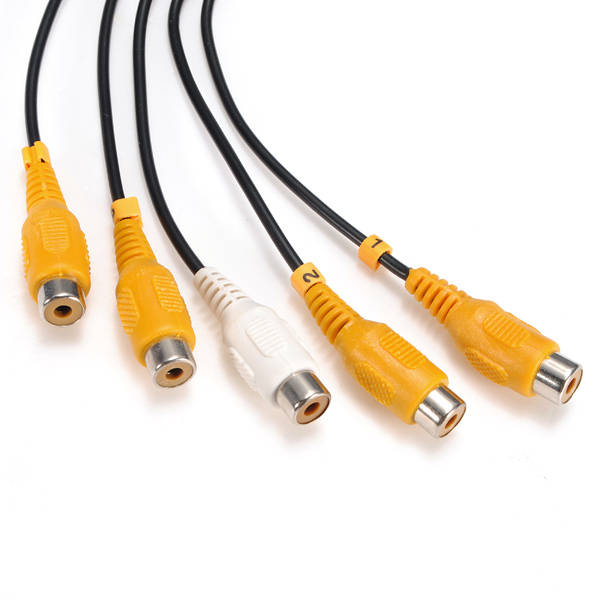

Video input:4 S-video input and RCA type composite video input
Video system supported:NTSC, PAL and SECAM
Supports all video capturing/ recording formats including DV,
MPEG-1, MPEG-2, MPEG-4 with DivX codec, SVCD/VCD, DVD, AVI, WMV
High MPEG bit rate adjustment up to 10000K bps
Supports color adjustment including brightness, contrast, saturation, hue and sharpness control
USB powered operation: No power adapter needed
Power Consumption: 5VDC, 250mA(max) through USB port
Extension USB Cable & CD ROM is included
Function:
USB 2.0 Video Capture Adapter
1 channel audio input.
4 screen display modes are available.
Send Video to your PC through USB port
Record Video in DVD/VCD/MP3/4 format and save in hard drive
Play Video Game(PS2/3, Xbox 360, Wii....) on PC/Laptop
Watch Video on Desktop/Laptop Monitor Screen
4 channels video input in one card, the maximum display /
recording rate is 25 fps under PAL format, and 30 fps under NTSC format for Per channel..
Multi alarm triggering method: sensor, motion, video loss, and HDD space shortage.
Support schedule recording mode, recycling recording method available.
MPEG4 video compression format. 5 level recording quality options available,
and the recording frame rate range from 1 to 30 fps adjustable for each channel.
Support multi-channel playback, searching by time/date and recording events,
images can be zoom/capture/save/print/backup.
Configurable auto reboot function for preventing PC deadlock.
Note: Suit for WIN7 32 BIT and before

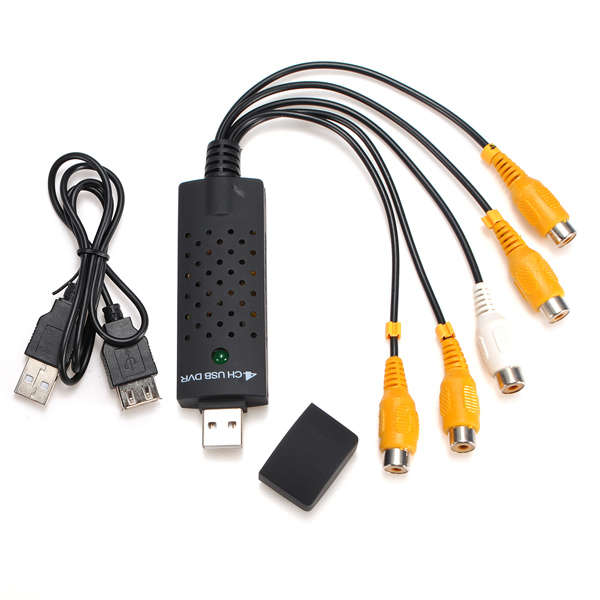

Package Included:
EasyCAP 4 cjannels USB 2.0 Video Adapter with Audio x 1
USB cable x 1
CD x 1
