Brand new USB Surveillance DVR 4 channel EzCAP video grabber
This USB video grabber system is ideal for home / small business use, user friendly with the application software (modified from professional video capture card software)
Innovative and Cost Efficient DVR with Powerful Software


• Schedule record mode
• Motion detection mode
• Sensor alarm record mode
• Recycling record mode
• P.T.Z control function
• Users management
• Multi-channel display
• Support 320x240 / 640x480 (NTSC), 352x288 / 704x576(PAL) standard resolutions.
• Image color adjustable for each channel, including contrast, lightness, hue and saturation.
• MPEG4 compression format, greatly reduce HDD usage
• Powerful video playing back functions, including playing back, pause, stop, fast-forward, single-frame play and image capture.
• Support advanced search mode. Users can search by date/time, camera, record mode, and random combination of the three methods.
• Support recorded files backup, delete by date/time, camera.
• Convenient to extend system functions by software upgrade.
• CPU and storage resources saving by advanced technology
• Remote Surveillance and P.T.Z control through LAN, Intranet, and Internet.
• Support alarm pre-record.
• Support buzzer, email alarm out.
• Can greatly decrease fragmented files while using NTFS partition.
• User-friendly graphical user interface.
Format: PAL/NTSC
Resolution:
support 320x240 / 640x480 (NTSC), 352x288 / 704x576(PAL),
Maximum Frame rate per channel: 25 fps (PAL), 30 ftp (NTSC)
Screen set: resolution 1024×768, color quality 16 bits or 32 bits
Compression code rate: 50kbps – 1.2Mbps
Data format: MPEG4

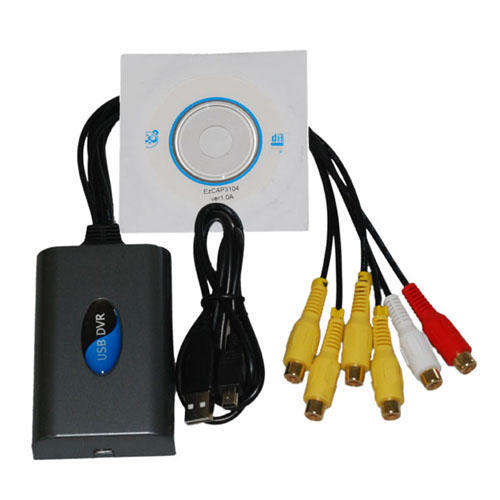

Package Contents:
• EzCAP 4 channel USB DVR
• USB connection cable
• Software and driver CD
