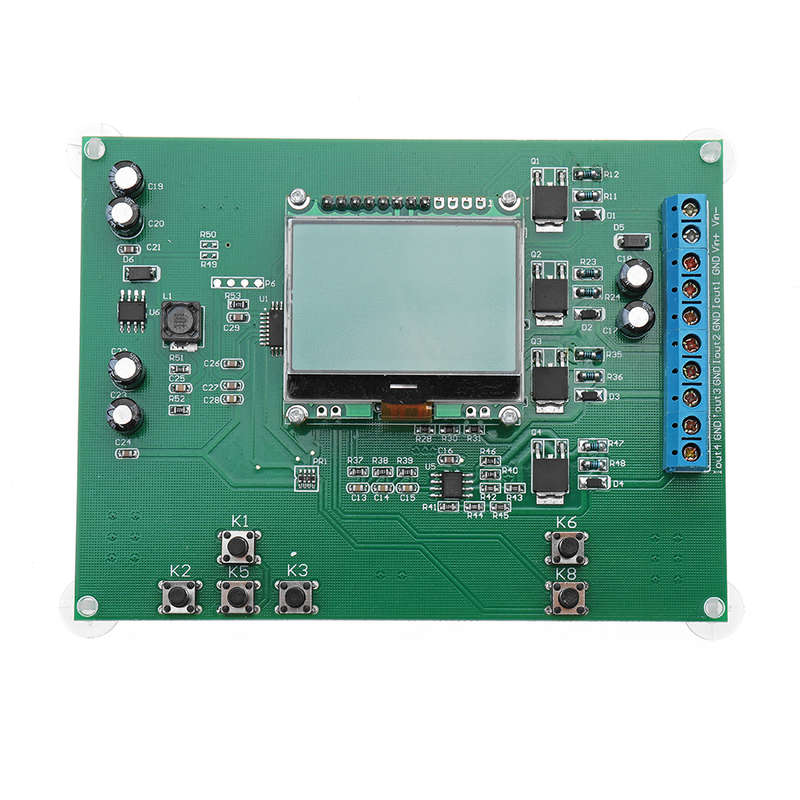

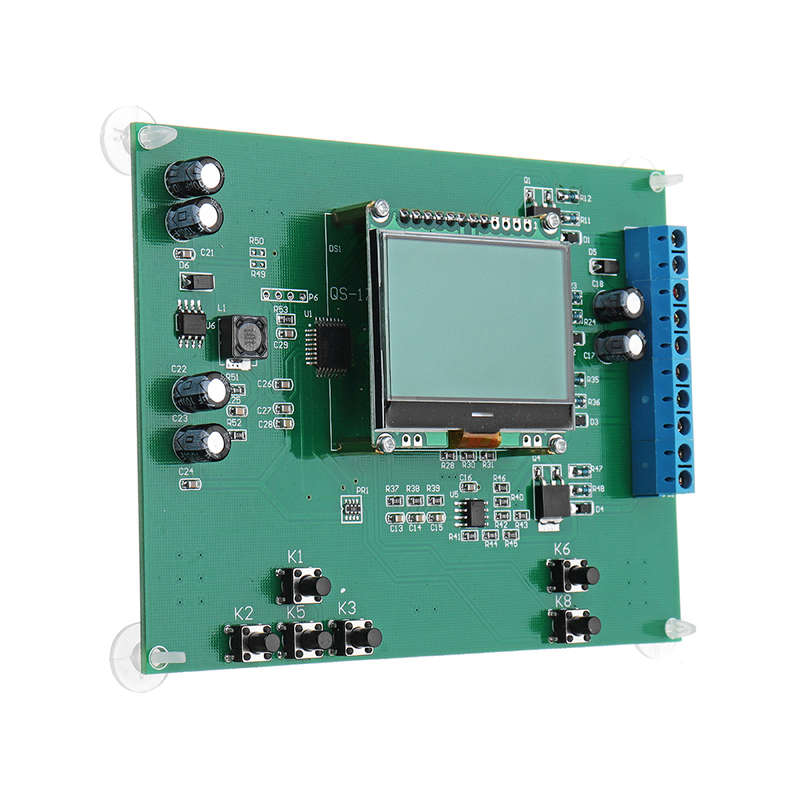

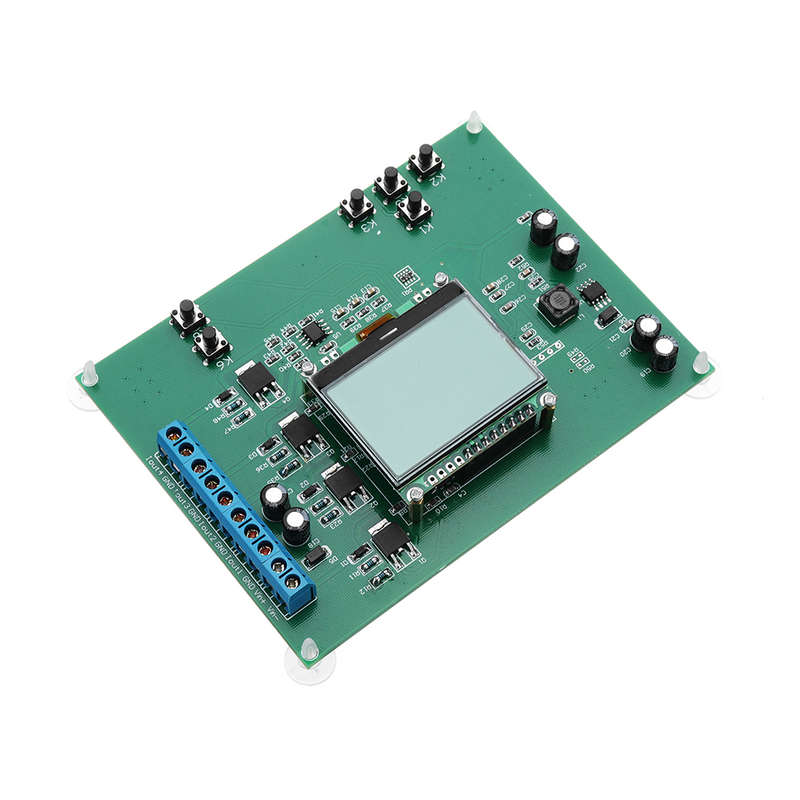

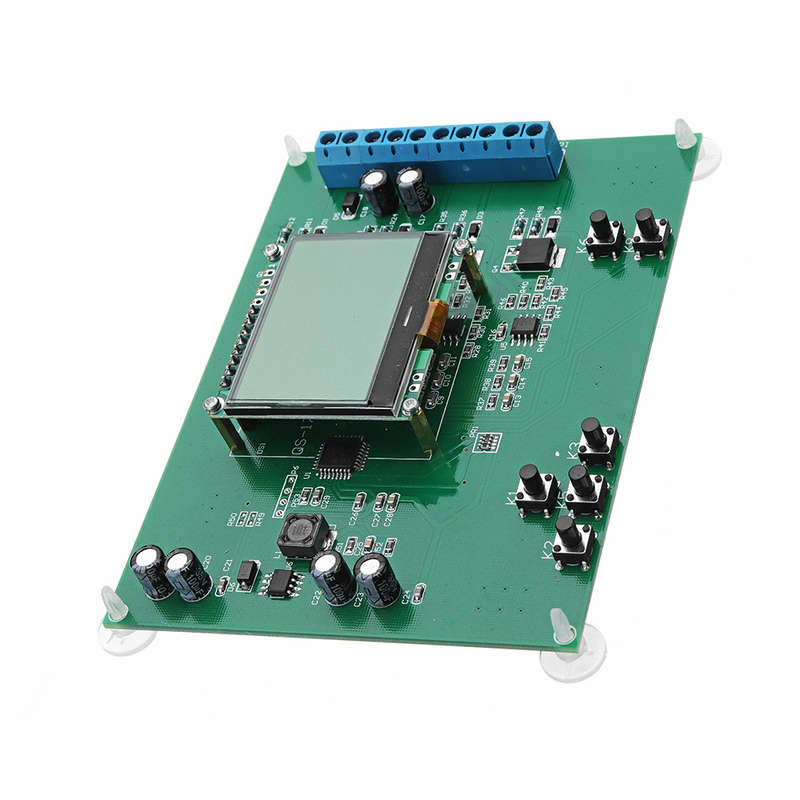

Description: This module is a multichannel current signal generator that generates 4 channels 4~20mA current signal. The module is simple to use and input data by keystroke operation, and the output signal is updated immediately.

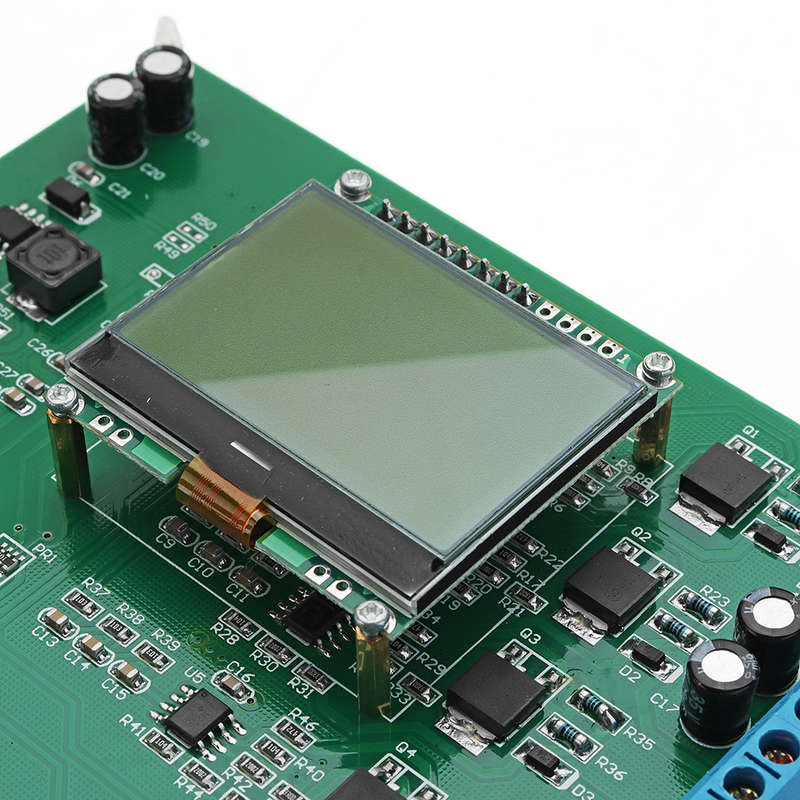

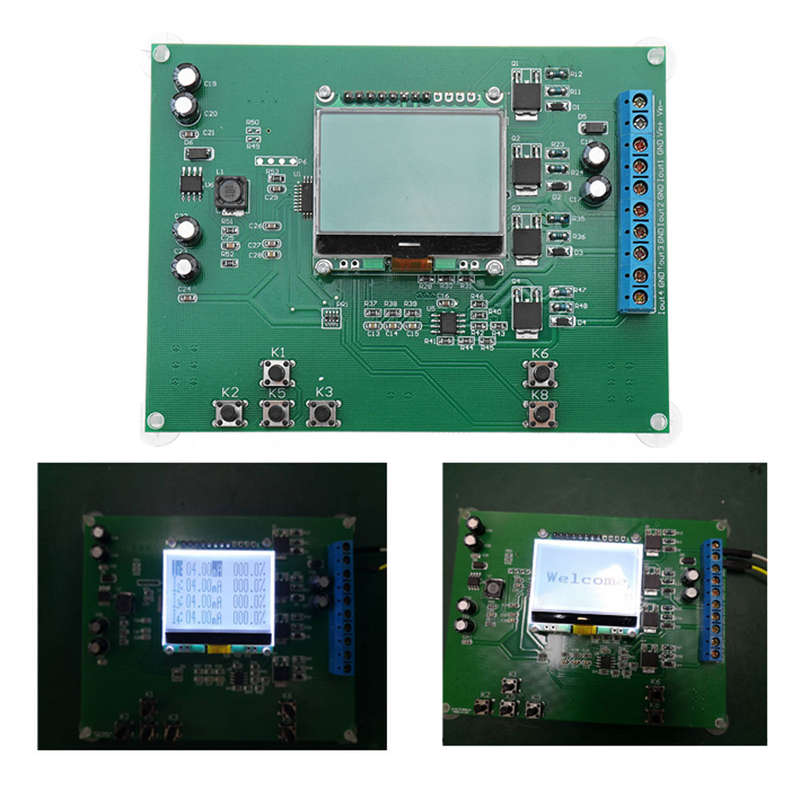

Features: Use 12864 LCD display
Voltage: 15-24V Active output current 0~20mA. Display resolution 0.01mA and control accuracy 0.1mA Polarity protection of input voltage Can analog transmitter output Compatible for signal generator, valve regulator, and instrument calibration

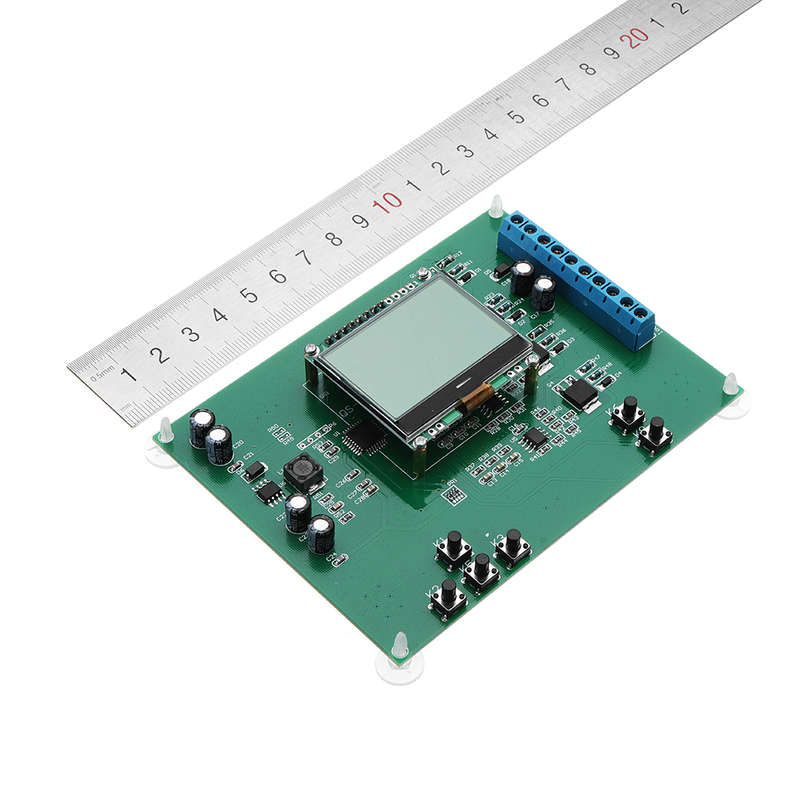

Specifications: Output current: 4~20mA Resolution: 0.01mA Control accuracy: 0.1mA Application: signal generator, valve regulator, and instrument calibration Size: 12*9*2cm / 4.72*3.54*0.19inch(length*width*height) Weight: 75g

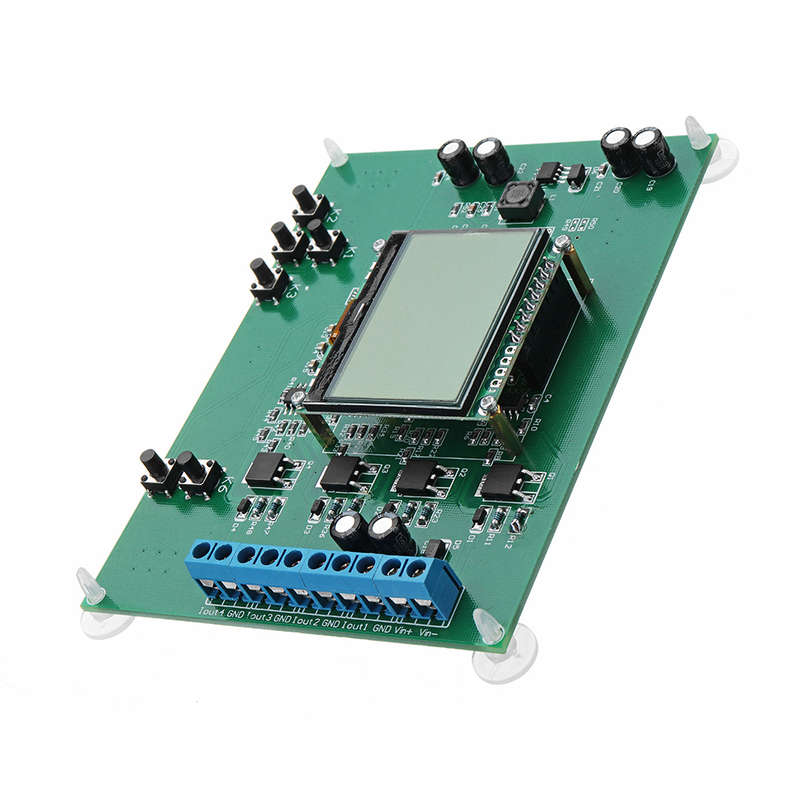

Interface(power interface) description: CN1 +: represent the positive pole of the input power supply CN1 -: represent the negative pole of the input power supply(GND) CN1 OUT1: represent channel 1 transmit current output CN1 OUT2: represent channel 2 transmit current output CN1 OUT3: represent channel 3 transmit current output CN1 OUT4: represent channel 4 transmit current output CN1 G: represent common end GND

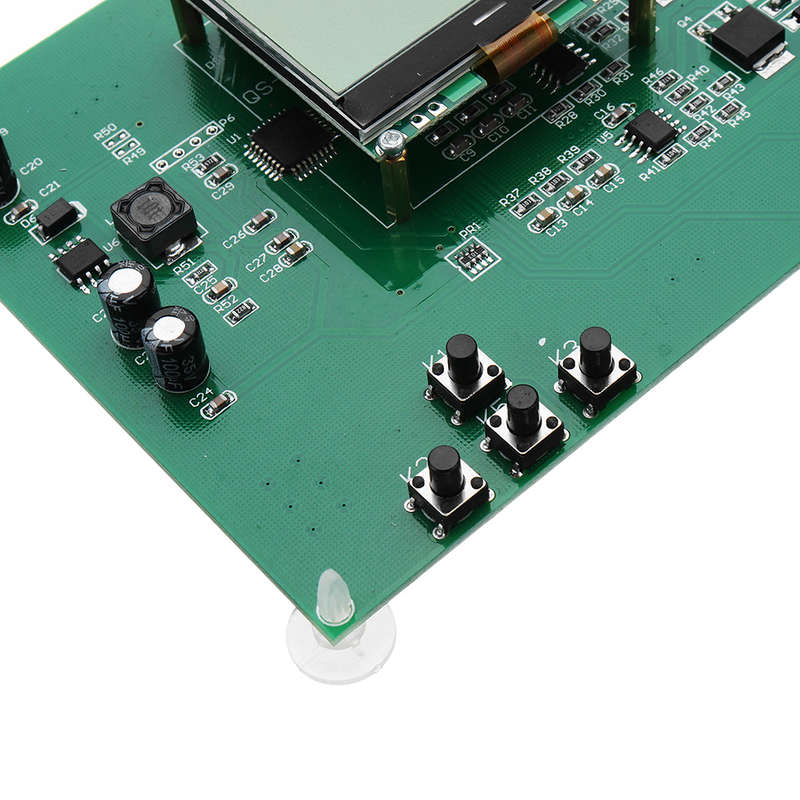

Button description: Function button K1: the up arrow key is used to select the setting channel Function button K5: the down arrow key is used to select the setting channel Function button K2: reduce 0.01 slowly. Hold down 1S reduce 0.1 Function button K3: increase 0.01 slowly. Hold down 1S increase 0.1 Function button K6: actual value or percentage selection key Function button K8: clear key
Using methods & steps: Output current OUT1 setting: press K1 or K5 Key to switch to OUT1 Setup interface. Press K2 or K3, output current value increases 0.01 MA step by step. Hold down K2 or K3, output current value increases 0.01MA step by step. Output current OUT2 setting: press K1 or K5 Key to switch to OUT2 Setup interface. Press K2 or K3, output current value increases 0.01 MA step by step. Hold down K2 or K3, output current value increases 0.01MA step by step. Output current OUT3 setting: press K1 or K5 Key to switch to OUT3 Setup interface. Press K2 or K3, output current value increases 0.01 MA step by step. Hold down K2 or K3, output current value increases 0.01MA step by step. Output current OUT4 setting: press K1 or K5 Key to switch to OUT4 Setup interface. Press K2 or K3, output current value increases 0.01 MA step by step. Hold down K2 or K3 output, current value increases 0.01MA step by step.

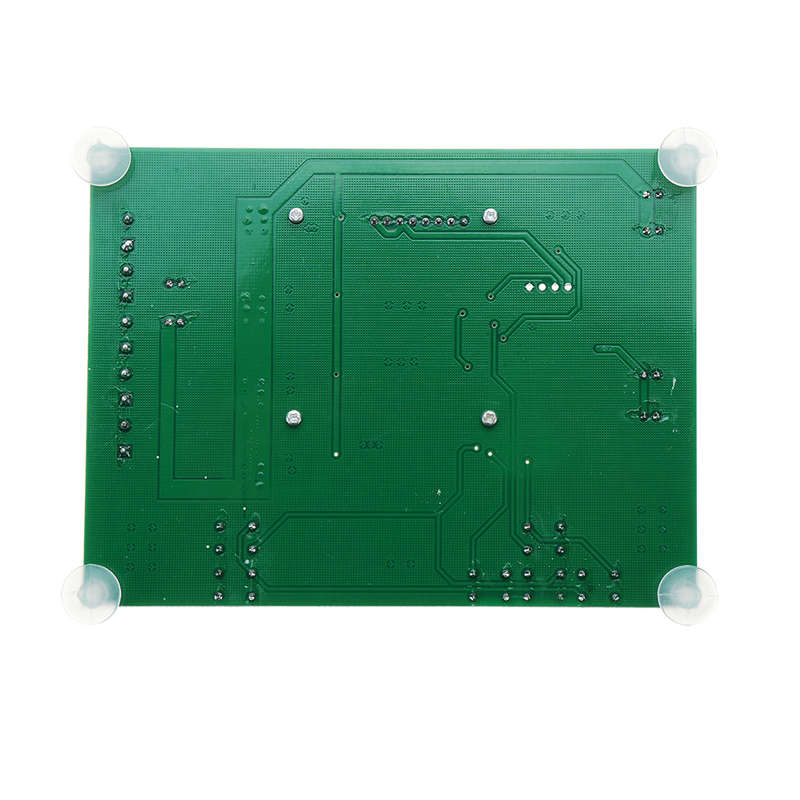

Package included: 1 XCurrent signal generator module board
