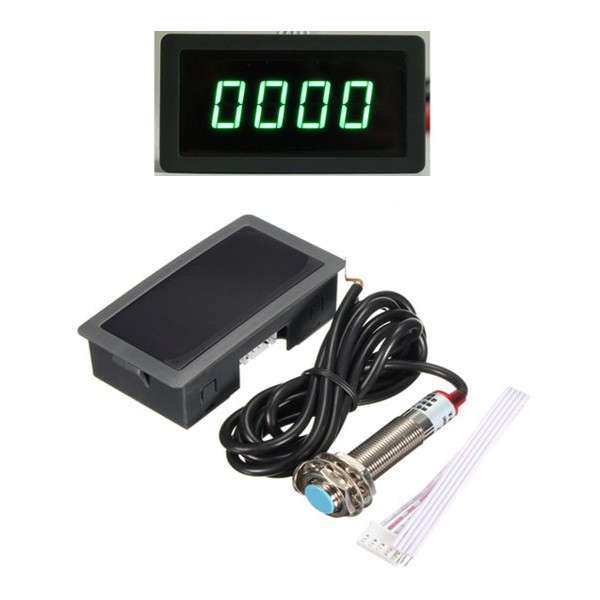

Product | 4 Digital Green LED Tachometer RPM Speed Meter + Proximity Switch Sensor NPN |

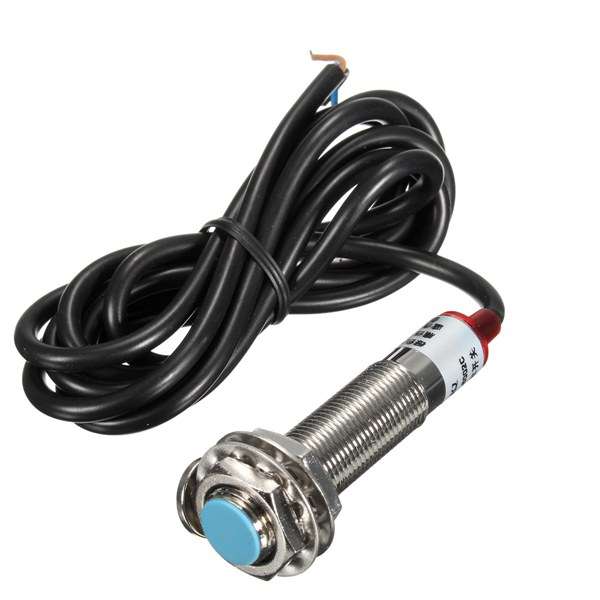

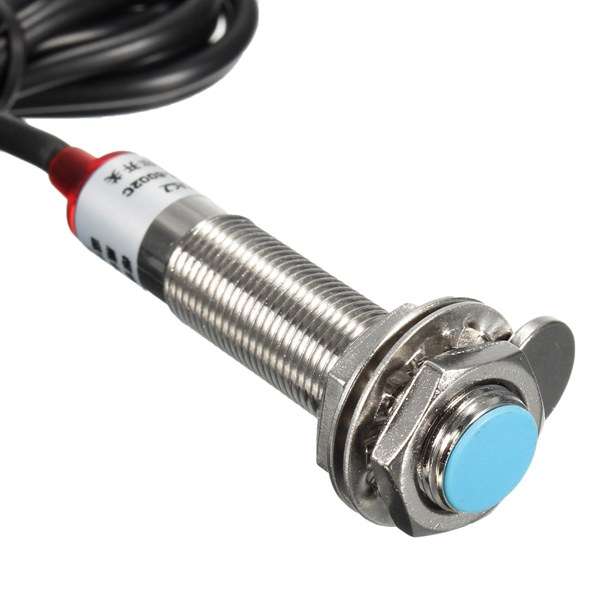

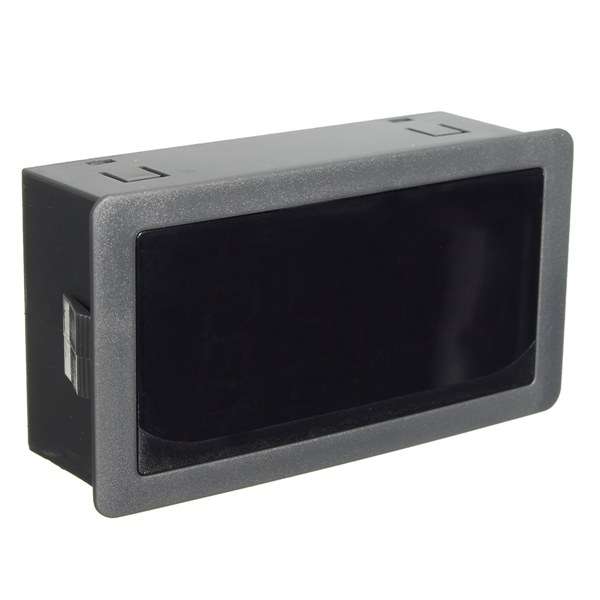

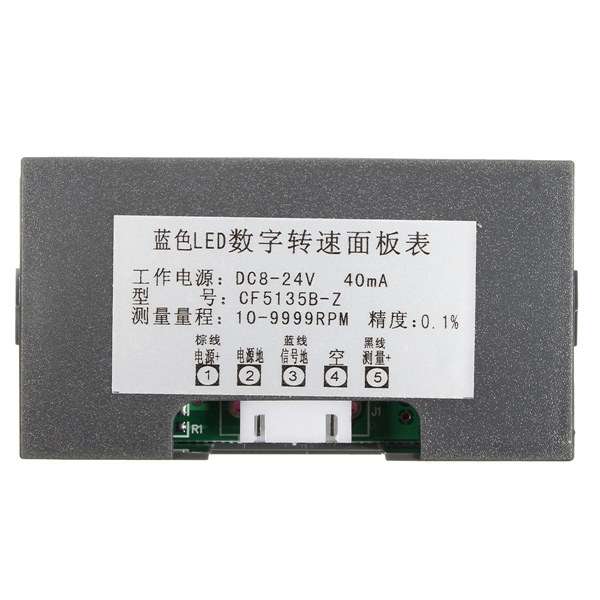

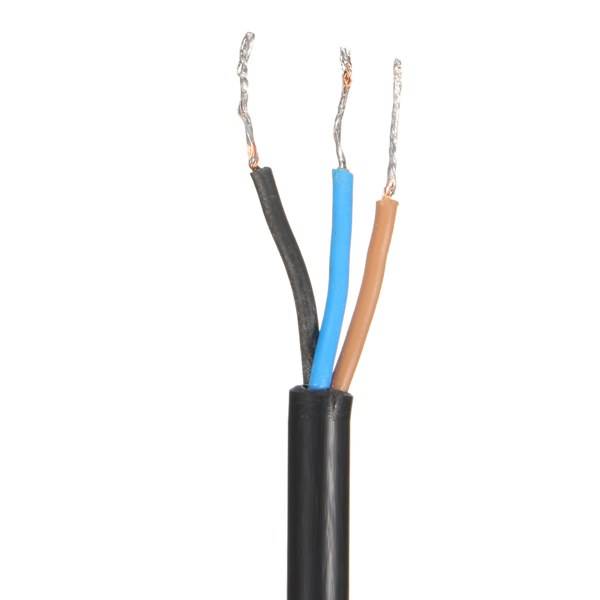

Specifications: Power requirement: DC 8-15V Measure range: 5-9999RPM Clear ze ro: Automatic Display refresher rate: 3 Times/Sec Measure indication: RPM<5000,±2, RPM>5000,±3 Display: Green 0.56' LED Response frequency: 100HZ Tachometer dimension: 72 x 36 x 20mm Panel cutout Dimension:68 x 33mm Sensor dimention: 12 x 55mm Proximity output current: 200mA Sensor wiring: brown-Power+;blue-Power-;black-signal Operating temperature: 0°C to 50°C Package includes: 1 x Proximity switch 1 x Tachometer ![]() ![]() ![]() ![]() ![]() ![]() |
Available Options | Available option(s): Color. Green Please leave a note at checkout with the selected option(s). |
Important Information | If you require more information on a product or have any pre-sale questions, please feel free to inquire. Product images shown are for illustration purposes only and will only include the product(s) as per the description, title and option(s) as indicated. Please confirm stock availability before purchasing. |
