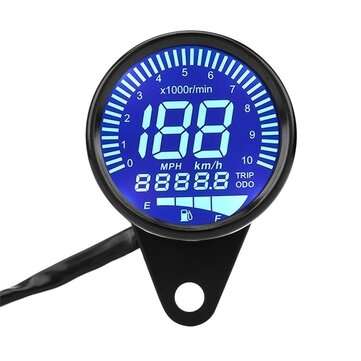

Description: 1. LCD digital display 2. Fuel level gauge. 3. 7 Colors LED Backlight Available 4. Both MP/H And KM/H Are Available. 5. 4 IN 1 Muti-function Gauge 6.Easy to install. 7.Fits for all motorcycle. 8.High capacity and practical. 9.General mechanical speed line interface. 10.ODO/TRIP function can be switched on the black button on the back of the meter.
Specification: LED Backlight Colors:7 Colors Type: Motorcycle Odometer Tachometer (0-10000RPM) Shape: Circle Material: Iron plating + Glass surface Color: Chrome Voltage: DC 12V Speedometer unit: KM/H MP/H Odometer unit: km Odometer measurement: 0-199KM/H Mirror Diameter: 67mm/2.63 Mounting hole diameter: 8mm / 0.31 Fitment:Universal Fit For All Motorcycle.
Wire Connection: Black = Positive Green = Negative Blue White = Oil Gauge Yellow Black = Tachometer Signal
Setting: 1. Backlight Switch:press the button in the ODO state for 3 seconds to switch the backlight color 2. KM/H MP/H Switch : Press and hold the button and then Ignite the bike.
The screen displays P0000. At this time, ones place 0 will flash, long press until tens place 0 flash,
then short press to make tens place display 1,Then long press until hundreds place flash,
And short press 6 times to display 6. Long press until thousands place flash, Short press 6 times to display 6,
then the screen shows 00466, this means 46.6HZ corresponds to 60KM/H. Short press to skip this step ,
then the screen displays 1001,1001 means KM/H, if you want to switch to MPH, Lond press switch to 1002 ,
Which indicates that you have set it to MPH. 3.Cylinder Setting .Flowing the above steps. Short press the screen to display 2002, indicating that this is
a 2-cylinder (166HZ corresponds to 10*1000RPM/MIN). Short press skip to the next step.long press
untiel ones place flash, then long press to make the 2 swtich to 4 ,which means 4 cylinders (333HZ corresponds
to 10*1000RPM/MIN), short press to skip to the next program. 4. Fuel Level settings. Follow the above steps, short press the until screen displays 3002, which means that
this time is a 2-line oil meter, short press to save all settings and exit, long press until ones place flash,
and then long press to display 3003, that means has switched to 3-line oil gauge.
Note: Please allow 1-3MM differs due to manual measurement. Instuction is not included.
Package Included: 1 X 4 In 1 Motorcycle Digital Odometer Speedometer Tachometer RPM Fuel Level Gauge
